Diagnosis Procedure
Regarding Wiring Diagram information, refer to TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM: WIRING DIAGRAM .
DIAGNOSIS PROCEDURE CHART
| Step | Action | YES | NO |
|---|---|---|---|
| 1 | CHECK TURN SIGNAL LAMP BULB Check the applicable lamp bulb to be sure the proper bulb standard is in use and the bulb is not open. Is the bulb OK? |
GO TO 2 | Replace the bulb. |

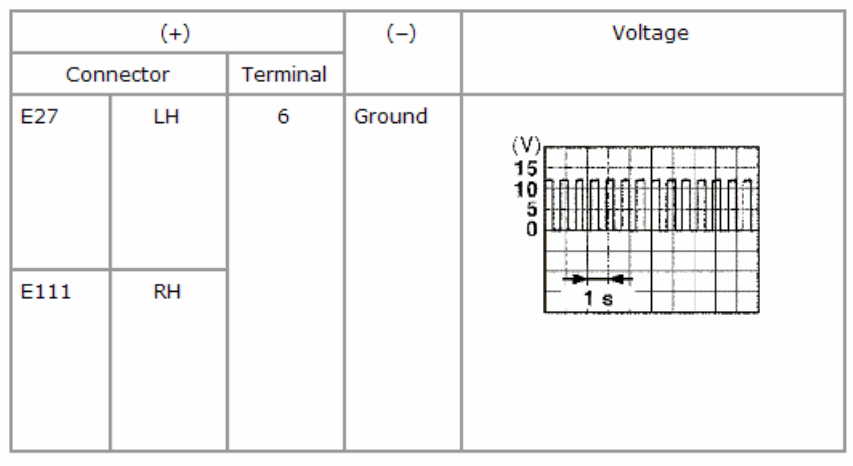

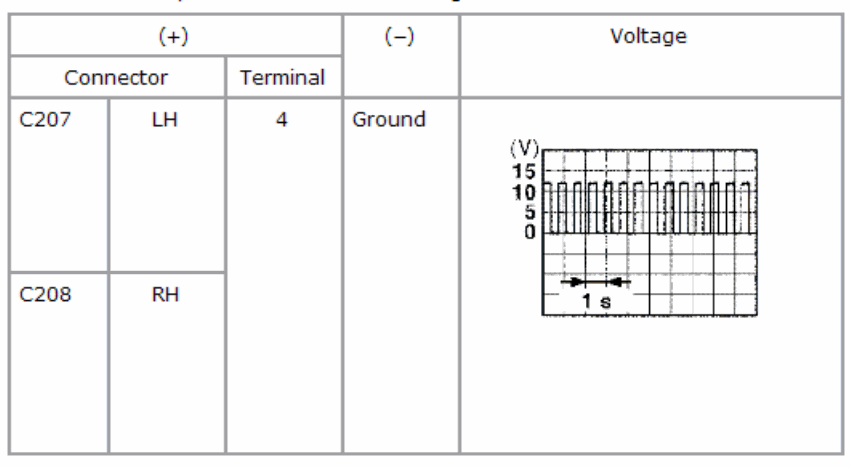

| 2 | CHECK TURN SIGNAL LAMP OUTPUT VOLTAGE
Is voltage reading as specified? |
GO TO 5 | GO TO 3 |
| 3 | CHECK TURN SIGNAL LAMP CIRCUIT FOR OPEN
Are continuity results as specified? |
GO TO 4 | Repair the harnesses or connectors. |
| 4 | CHECK TURN SIGNAL LAMP SHORT CIRCUIT Check continuity between the BCM harness connector and ground. Does continuity exist? |
Repair the harnesses or connectors. | Replace BCM. Refer to [BCM (BODY CONTROL MODULE): REMOVAL AND INSTALLATION ] |
| 5 | CHECK TURN SIGNAL LAMP GROUND CIRCUIT
Are continuity results as specified? |
Replace the malfunctioning lamp. | Repair the harnesses or connectors. |
