SDT Function: (BCM - INT LAMP) [Without Power Door Locks]: Utility

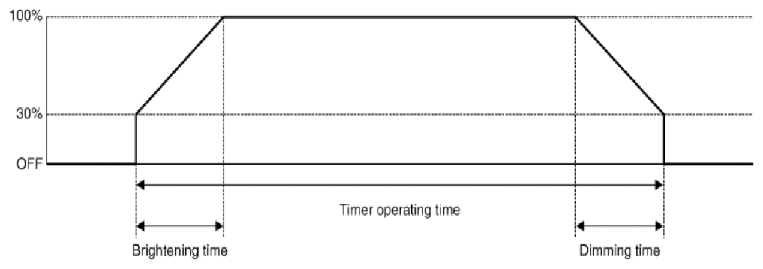

Fig 1: SDT Function Diagram (Without Power Door Locks)

Courtesy of SUZUKI OF AMERICA CORP.

ITEM SETTING CHART

Service item	Setting item	Setting
SET I/L D-UNLCK INTCON	ON	This item is not used for this model
	OFF
ROOM LAMP ON TIME SET	MODE 1	0.5 sec.	This item is not used for this model
	MODE 2	1 sec.
	MODE 3	2 sec.
	MODE 4	3 sec.
	MODE 5	4 sec.
	MODE 6	5 sec.
	MODE 7	0 sec.
ROOM LAMP OFF TIME SET	MODE 1	0.5 sec.	This item is not used for this model
	MODE 2	1 sec.
	MODE 3	2 sec.
	MODE 4	3 sec.
	MODE 5	4 sec.
	MODE 6	5 sec.
	MODE 7	0 sec.
