Trailer Tow: Component Parts Location

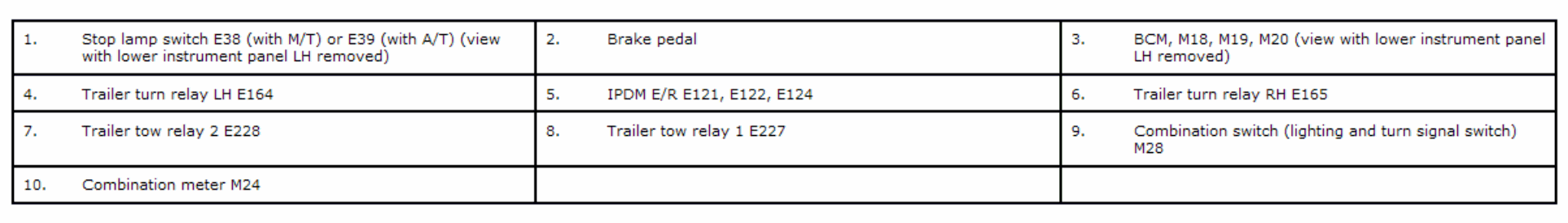

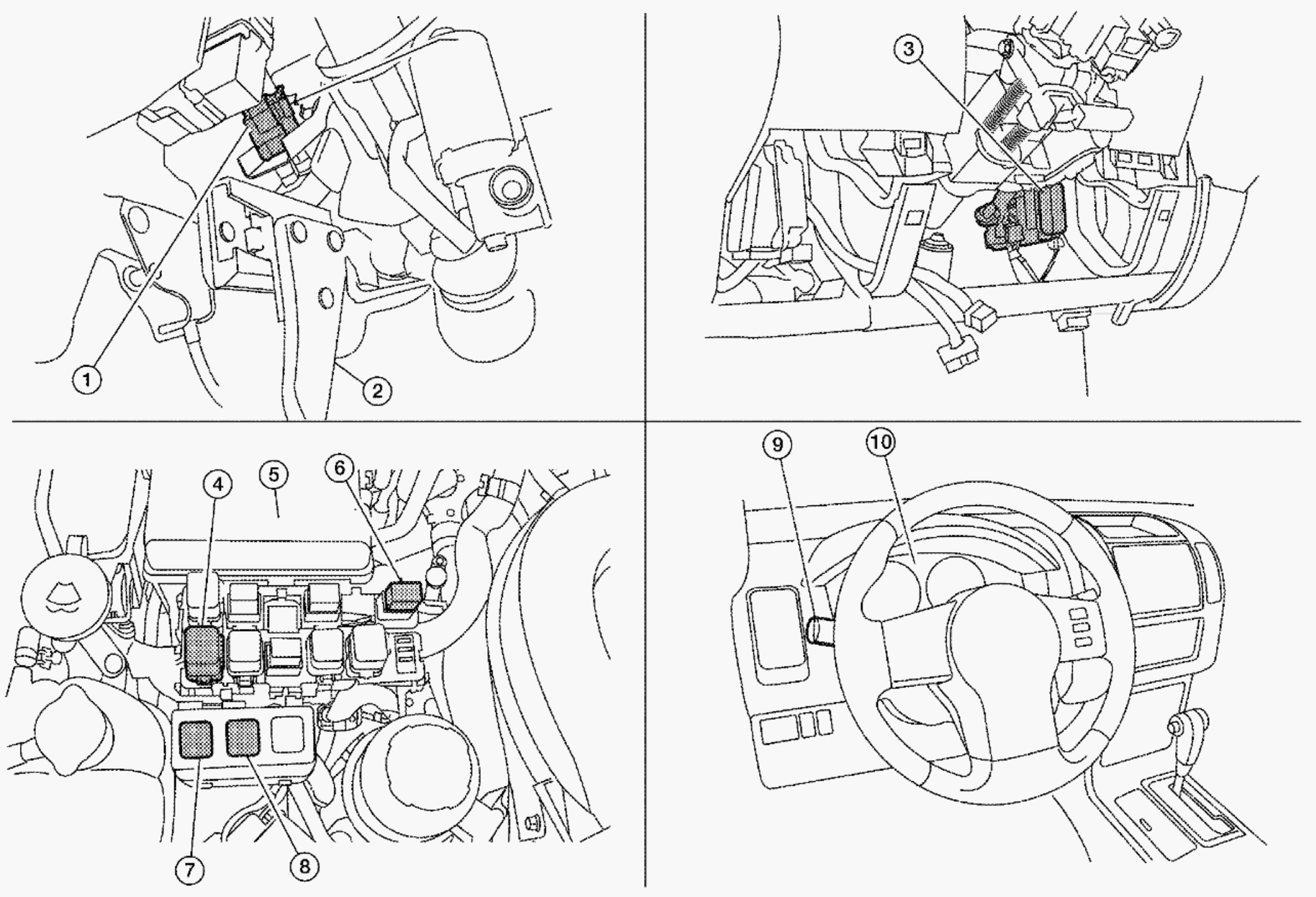

Fig 1: Identifying Trailer Tow Component Parts Location (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Identifying Trailer Tow Component Parts Location (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
