Illumination Control System: Component Parts Location [Without Power Door Locks]

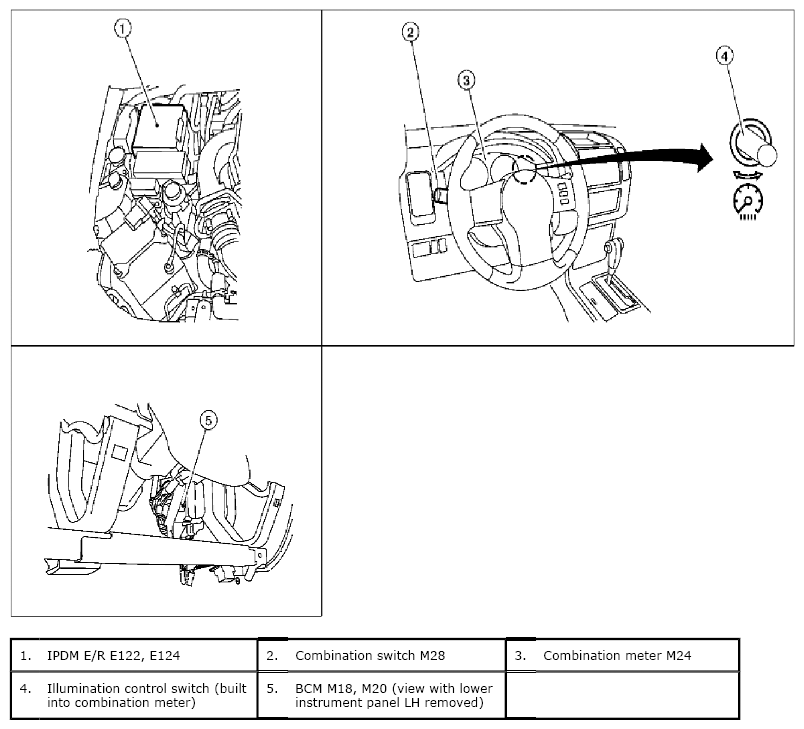

Fig 1: Identifying Illumination Control System Component Parts Location (Without Power Door Locks)
G06443419Courtesy of SUZUKI OF AMERICA CORP.
