Front Fog Lamp: Bulb Replacement: Removal
- Position front fender protector aside. Refer to
[FRONT FENDER PROTECTOR: REMOVAL AND INSTALLATION
]

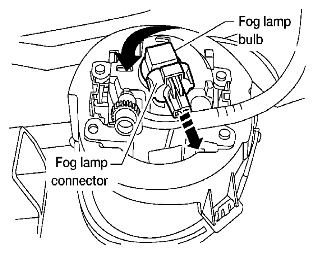

- Disconnect fog lamp connector.
Courtesy of SUZUKI OF AMERICA CORP.
- Turn the bulb counterclockwise to remove it.
CAUTION:
- Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it. Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.
- Do not leave bulb out of fog lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of fog lamp. When replacing bulb, be sure to replace it with new one.
