Initial Inspection and Diagnostic Overview

Diagnosis and Repair Workflow

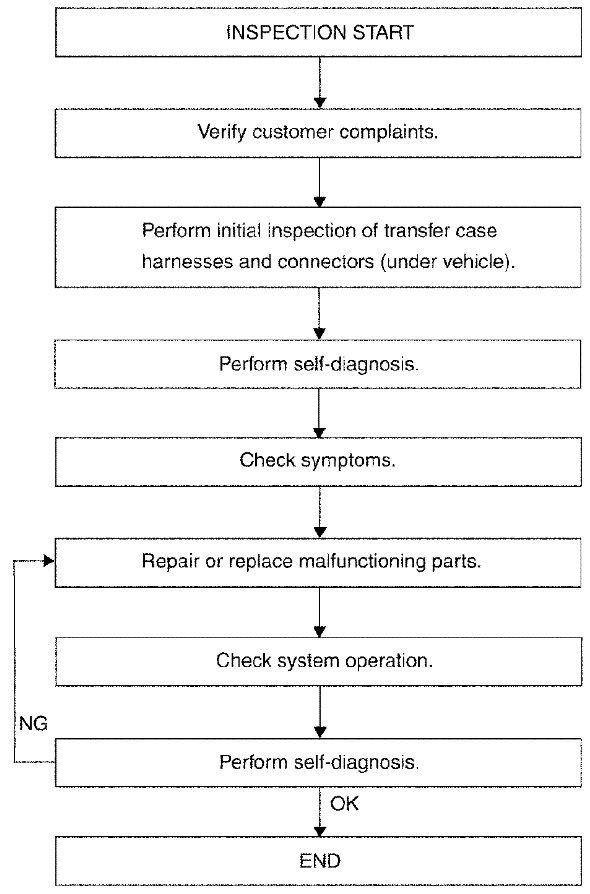

Work Flow





Detailed Flow

1. CUSTOMER INFORMATION

Interview the customer to obtain detailed information about the symptom.


GO TO 2

2. INITIAL INSPECTION

Perform an initial inspection of all accessible transfer case harnesses and connectors under the vehicle.


GO TO 3

3. DTC CHECK

Perform "DTC check". Refer to [SDT Function (4WD)] Scan Tool Testing and Procedures.


GO TO 4

4. SYMPTOM

Check for symptoms. Refer to [4WD System Symptoms: Symptom Table] Symptom Table.


GO TO 5

5. MALFUNCTIONING PARTS

Repair or replace the applicable parts.


GO TO 6

6. SYSTEM OPERATION

Check system operation.


GO TO 7

7. DTC CHECK

Perform "DTC check".

Are any DTCs displayed?
YES
GO TO 5
NO
Inspection End
