Removal and Replacement

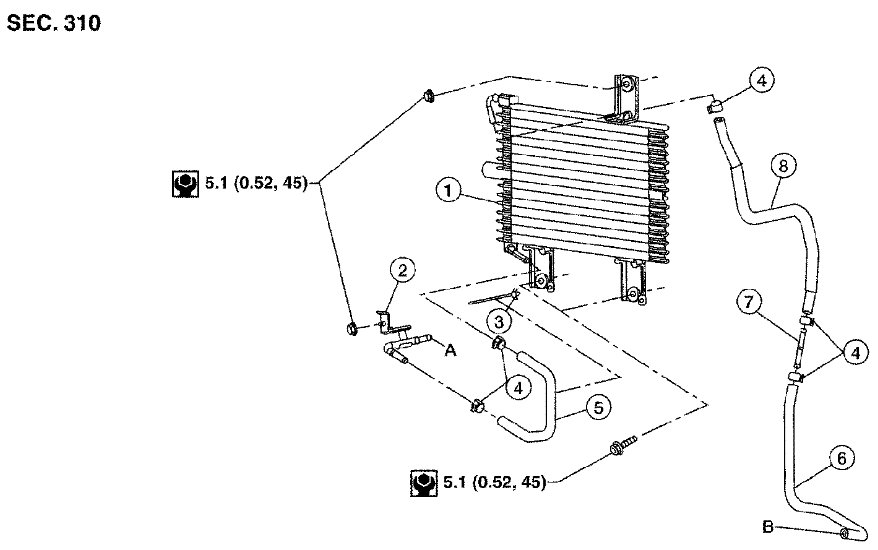

A/T Fluid Cooler: Removal and Installation










NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

Removal

1) Remove front grille. Refer to [Front Grille: Removal and Installation] Service and Repair.
2) Remove A/T fluid cooler hoses from fluid cooler.
3) Remove A/T fluid cooler.

Installation

Installation is in the reverse order of removal.

- After completing installation, check fluid level and check for fluid leaks. Refer to [Checking the A/T Fluid (ATF)] Checking the A/T Fluid (ATF).
