Overhaul

Fuel Level Sensor Unit, Fuel Filter and Fuel Pump Assembly: Disassembly and Assembly

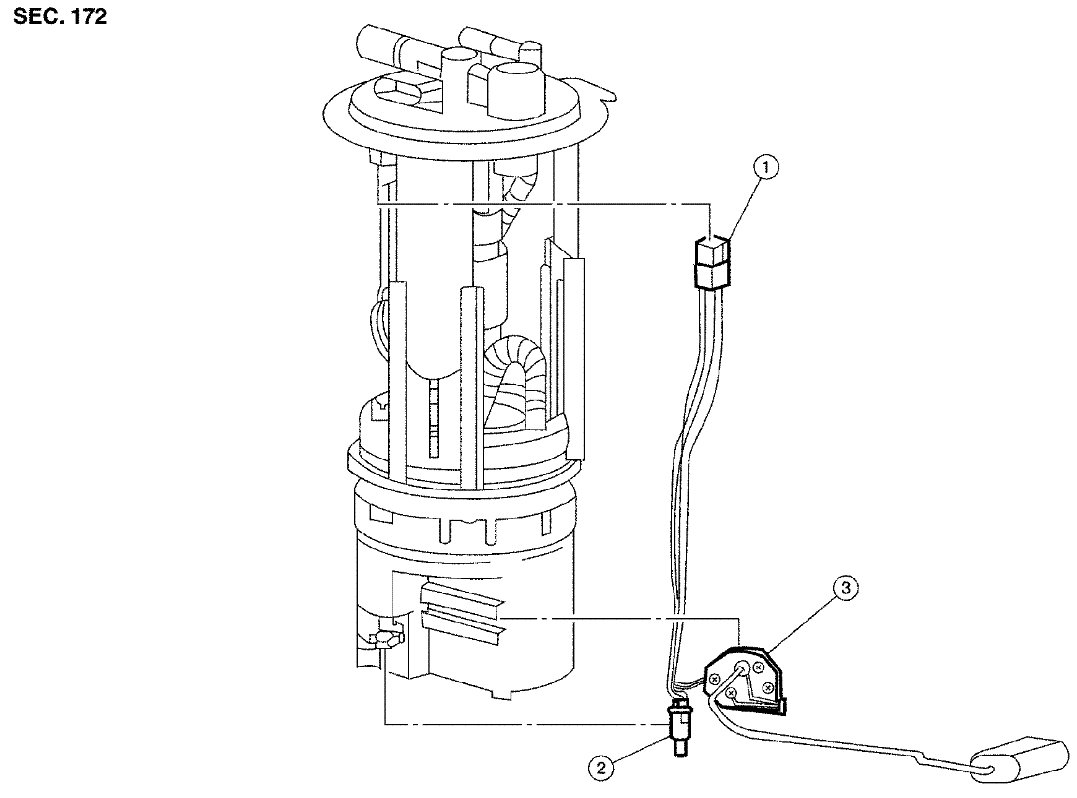

Fuel Level Sender Unit Assembly










Disassembly

1) Disconnect the harness connector.
2) Remove the fuel tank temperature sensor.
3) Remove the fuel level sender unit assembly.

Assembly

Assembly is the reverse order of disassembly.
