Windshield Washer Reservoir: Service and Repair

Washer Tank: Removal and Installation

Removal and Installation

Removal

1) Remove passenger front fender protector. Refer to [Front Fender Protector: Removal and Installation] Front Fender Protector Removal and Installation.

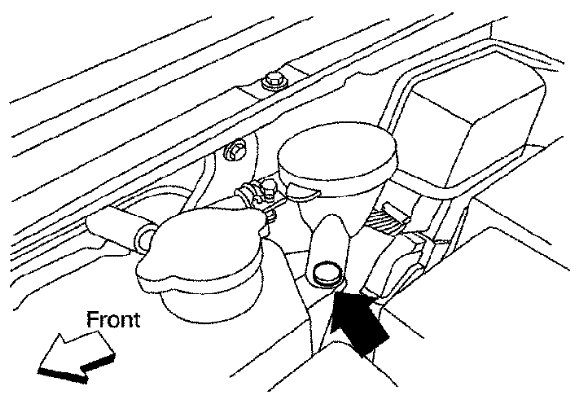

2) Remove clip, then remove washer tank filler neck from washer fluid reservoir.

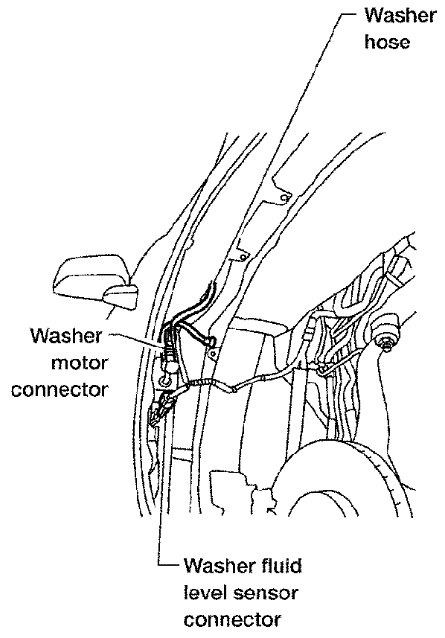

3) Disconnect washer hose.





4) Disconnect washer motor connector.
5) Disconnect washer tank fluid level sensor electrical connector (if equipped).

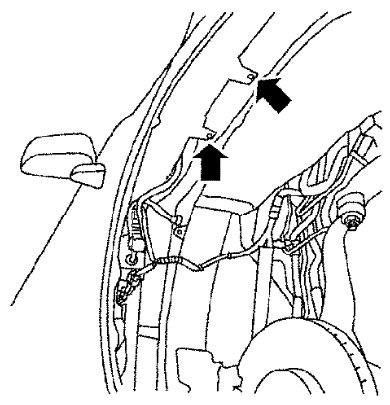

6) Remove washer tank screws and the washer tank.






Installation

Installation is in the reverse order of removal.

CAUTION:

After installation, add water up to the upper level of the washer fluid reservoir inlet and check for water leaks.
