Windshield Washer Pump: Service and Repair

Washer Pump: Removal and Installation

Removal and Installation

Removal

1) Remove RH front fender protector. Refer to [Front Fender Protector: Removal and Installation] Front Fender Protector Removal and Installation.
2) Disconnect the washer hoses.
3) Disconnect the washer pump electrical connector.

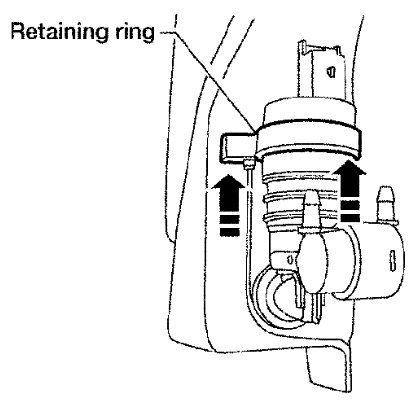

4) Slide retaining ring upward to release washer pump.





5) Remove washer pump from washer fluid reservoir.

Installation

Installation is in the reverse order of removal.

CAUTION:

Never twist the seat when installing the washer pump.
