Wiper and Washer System Symptoms Table

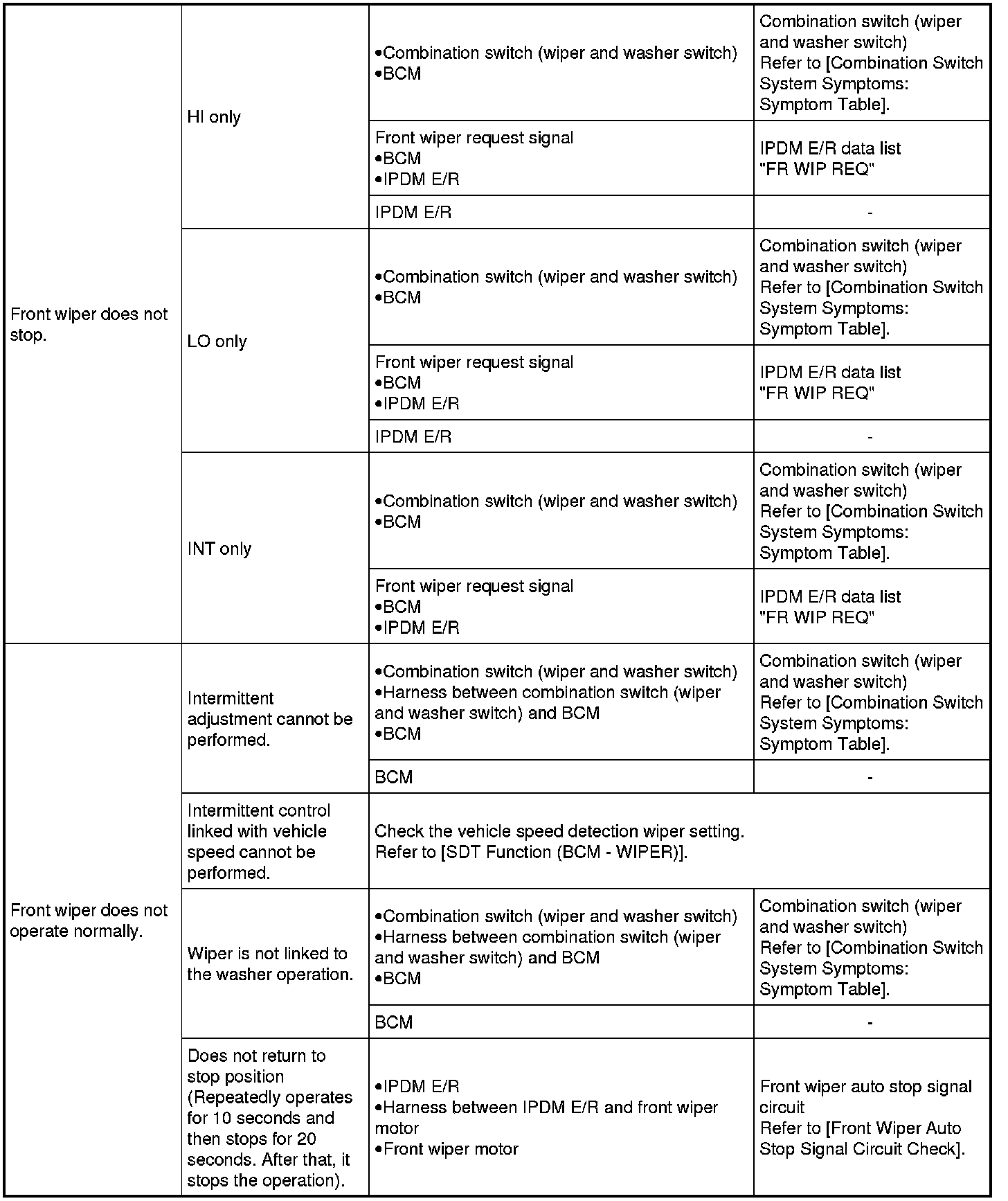

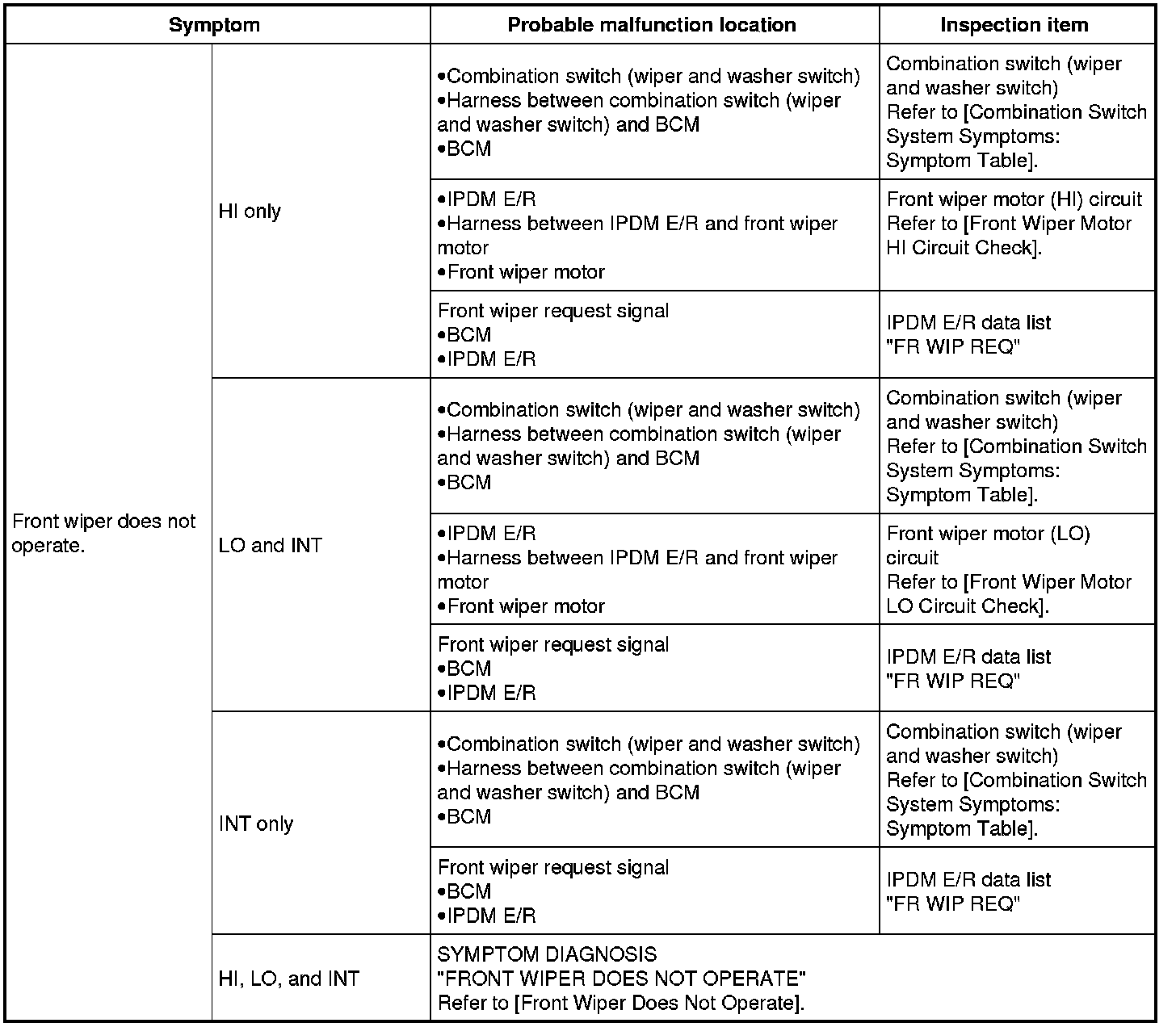

Wiper and Washer System Symptoms: Symptom Table

CAUTION:

Perform the "DTC check" with SDT before performing the diagnosis by symptom. Perform the diagnosis by DTC if DTC is detected.
