ECU Diagnosis Information Power Window System




ECU Diagnosis Information: Power Window System

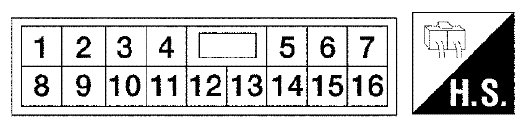

Terminal Layout for Power Window Main Switch

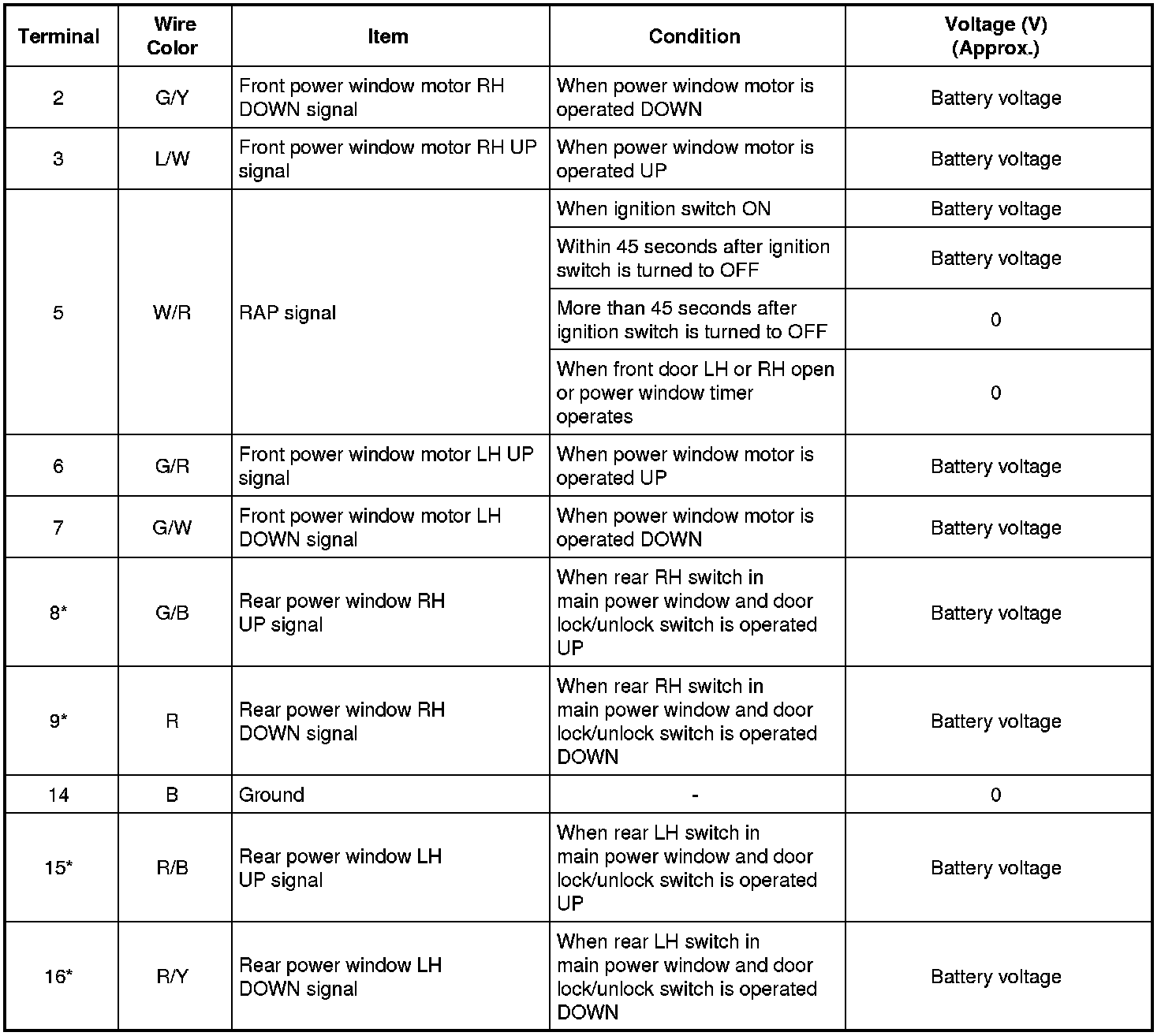

Physical Values for Power Window Main Switch





*: Crew cab
