Rear Power Window Switch - Rear Door Switch (If Equipped)

Rear Power Window Switch: Removal and Installation - Rear Door Switch (If Equipped)

Removal

1) Using a suitable tool, release the metal clip and pawls, then lift upward the rear power window switch and finisher (2) as an assembly.





: Metal clip

: Pawl

CAUTION:
Wrap a cloth around suitable tool to protect components from damage.

2) Disconnect the harness connector.
3) Remove the rear power window switch and finisher (2) assembly from the rear door finisher.

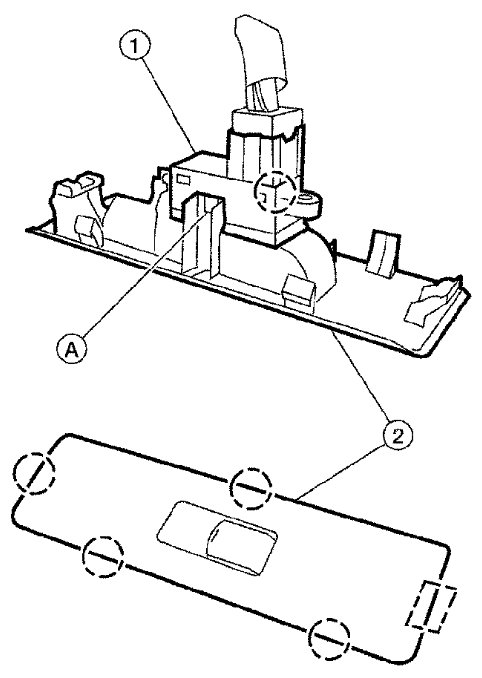

4) Release the two tabs (A), one on each side, then separate the rear power window switch (1) from the rear power window switch finisher (2).

Installation

Installation is in the reverse order of removal.
