Shifter M/T: Service and Repair

Shift Control: Removal and Installation

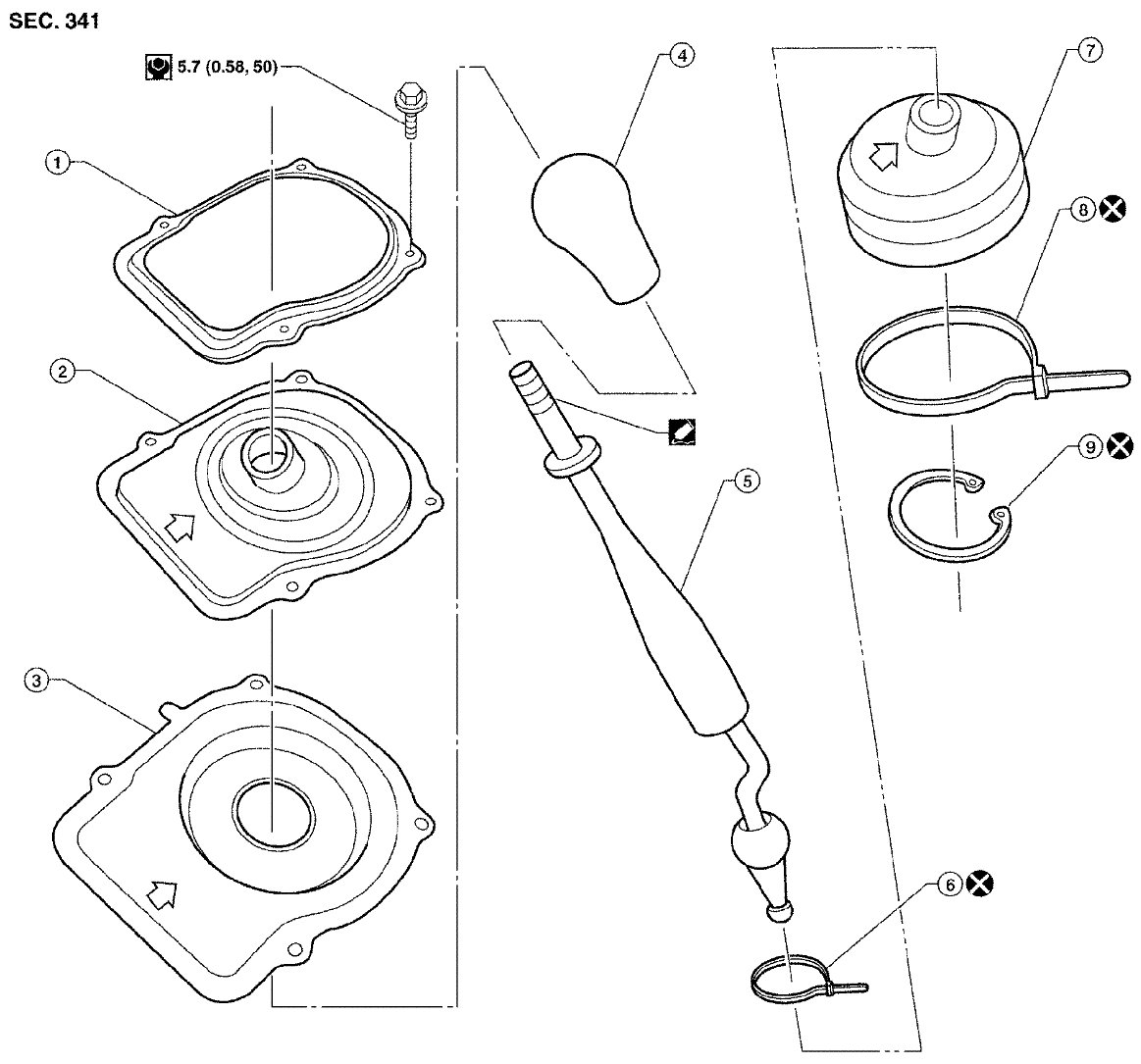

Components










Removal

1) Remove the shift selector handle.
2) Remove the cup holder finisher and shift bezel. Refer to [Center Console Assembly: Exploded View] Center Console Assembly Exploded View.
3) Remove the retaining plate and dust boot covers.
4) Remove the clip B and then separate the boot from the control housing.
5) Remove the snap ring.
6) Remove the shift selector assembly from the transmission.

Installation

Installation is the reverse order of removal.

CAUTION:

- Do not reuse the clips and snap ring.
- Apply cement to threads of the shift selector assembly.

- When shift selector assembly is moved to each position, make sure there is no binding or disconnection in either boot.
