Transmission Disassembly and Assembly




Transmission Assembly: Disassembly and Assembly

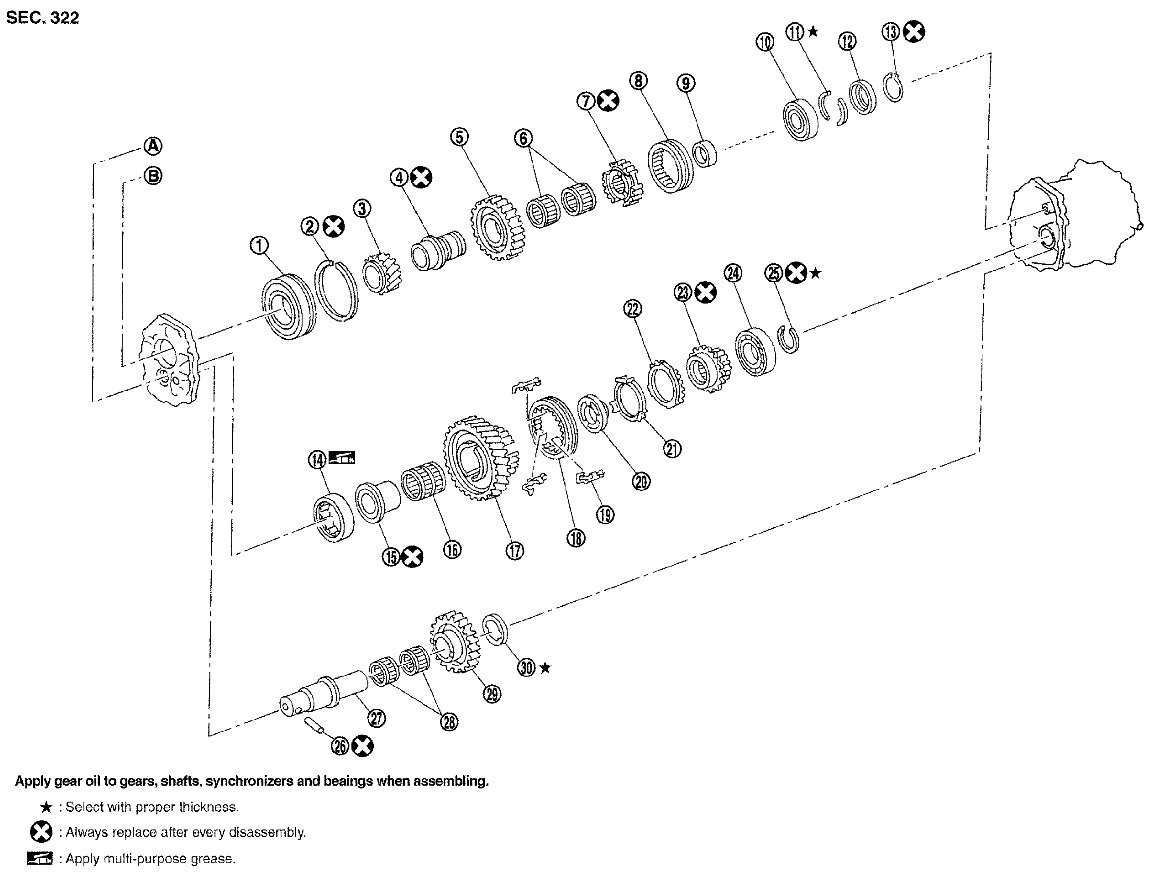

Exploded View

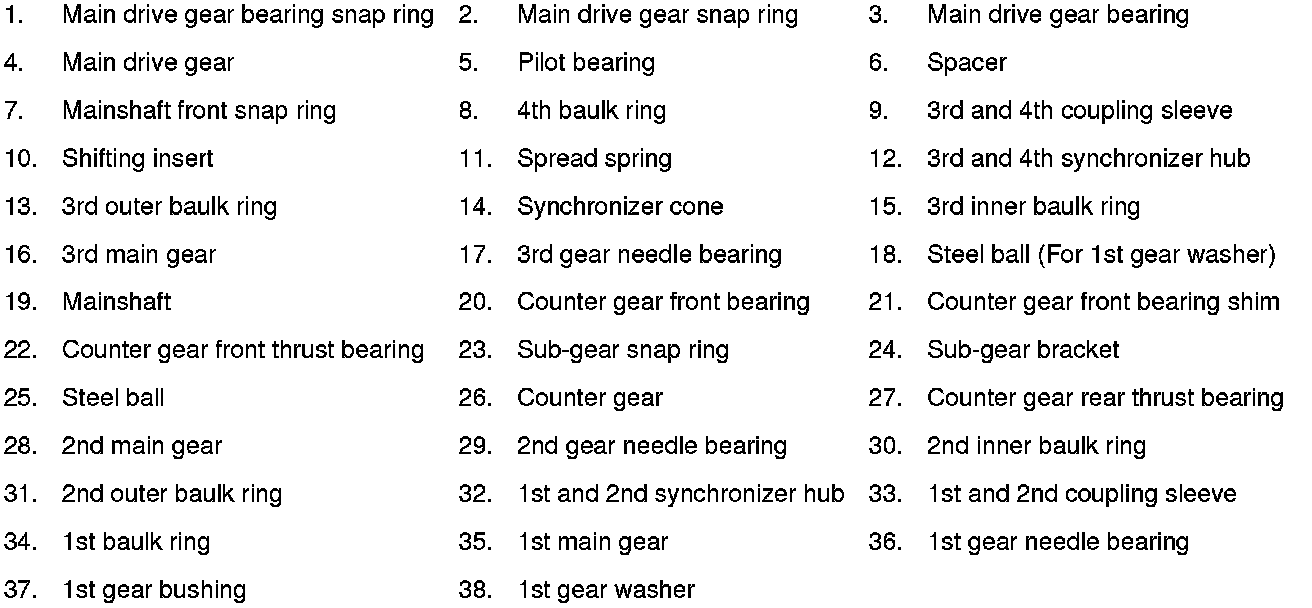

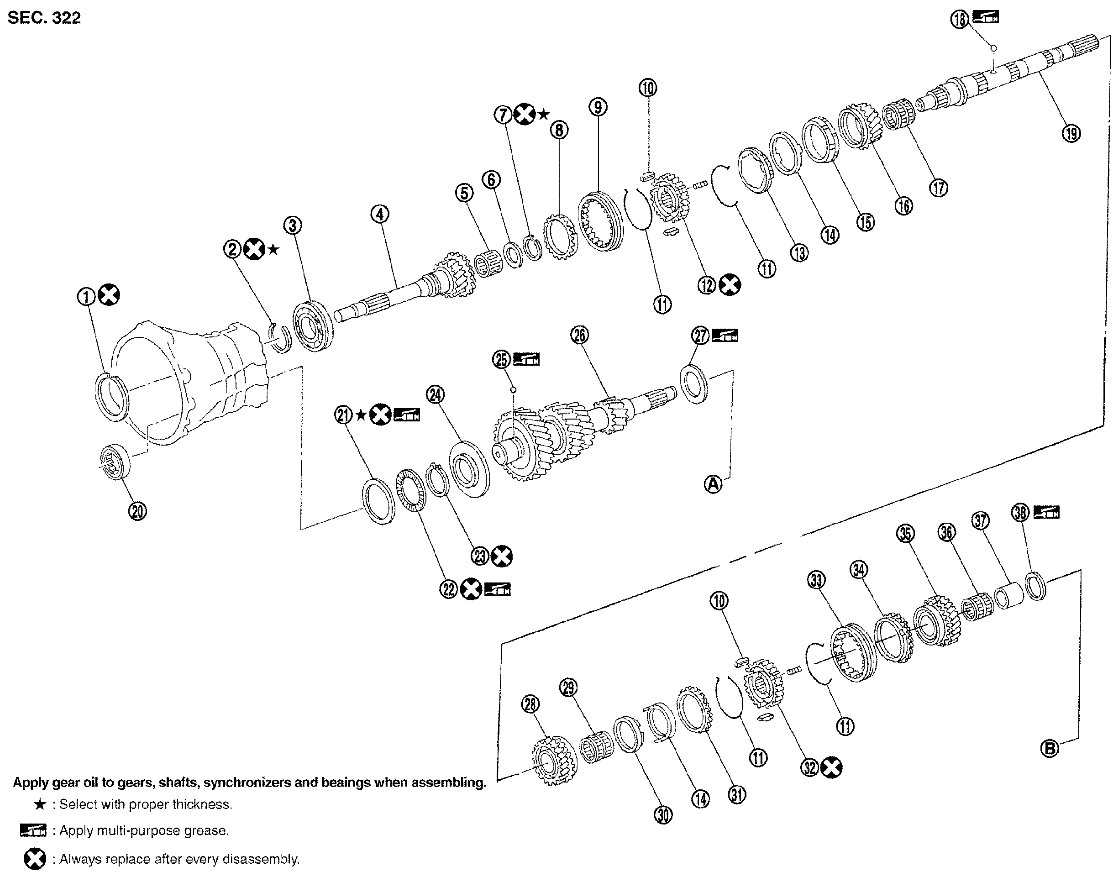

Gear Components

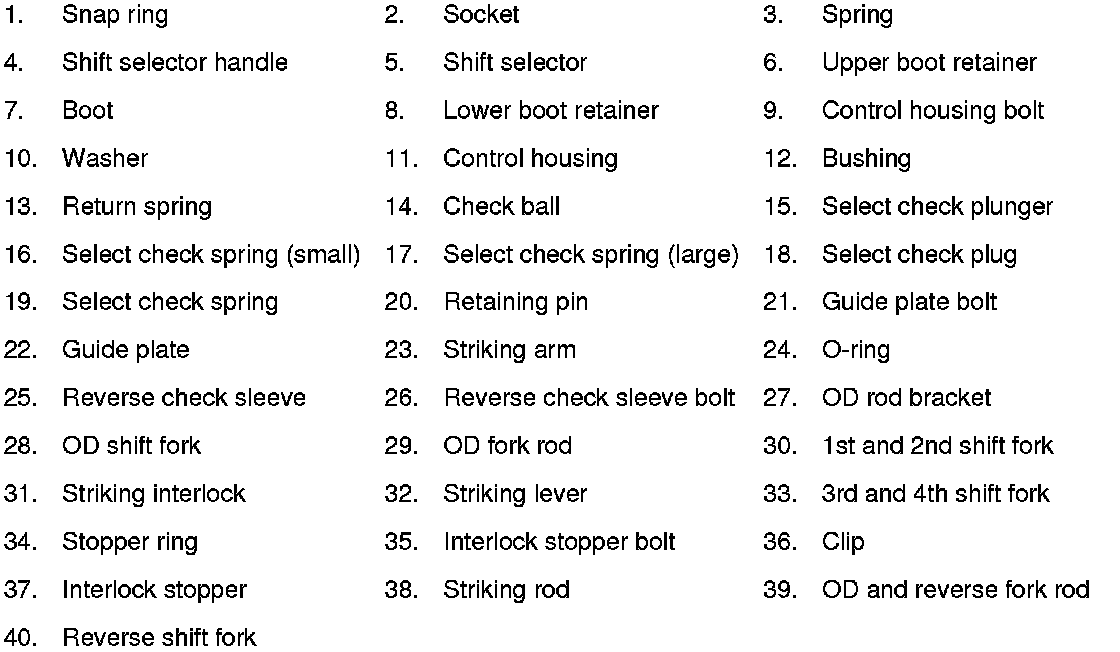

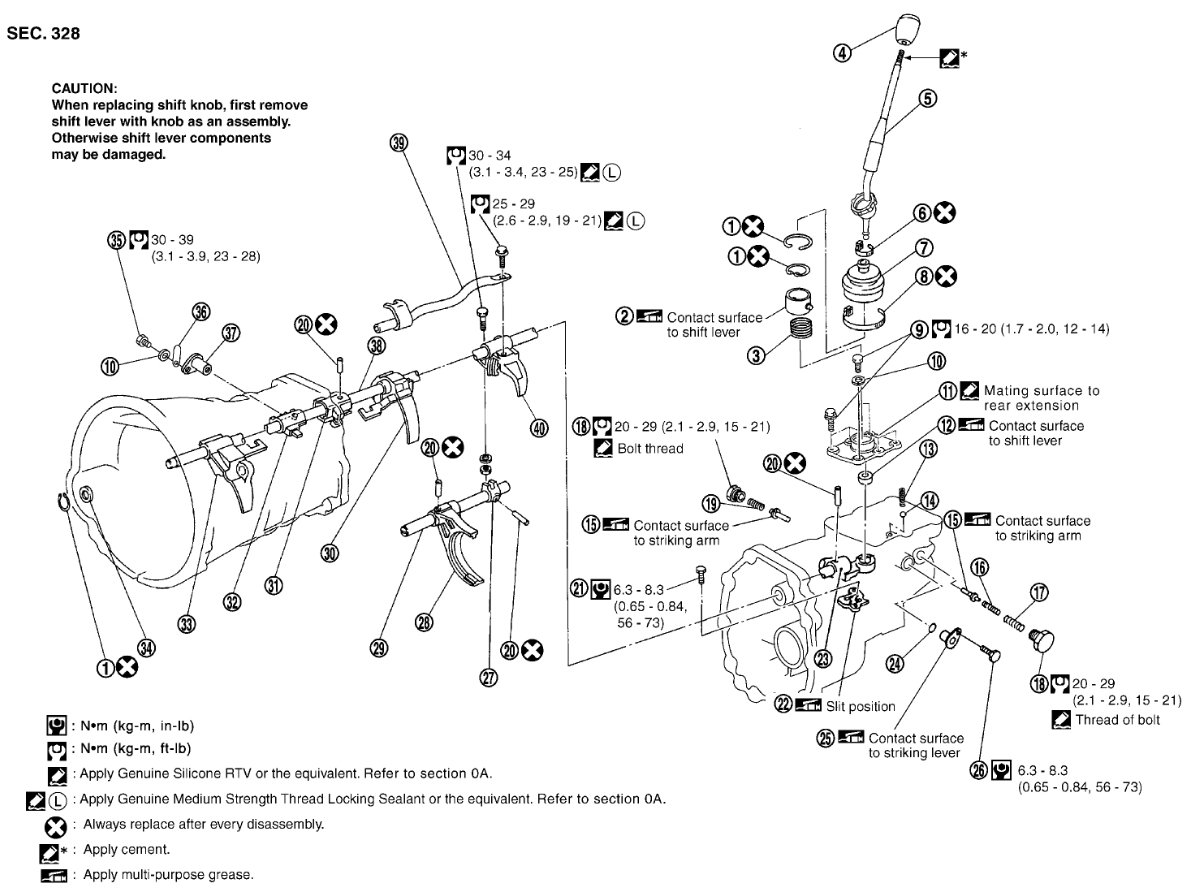

Shift Control Components
