Disassembly

Case Components: Disassembly

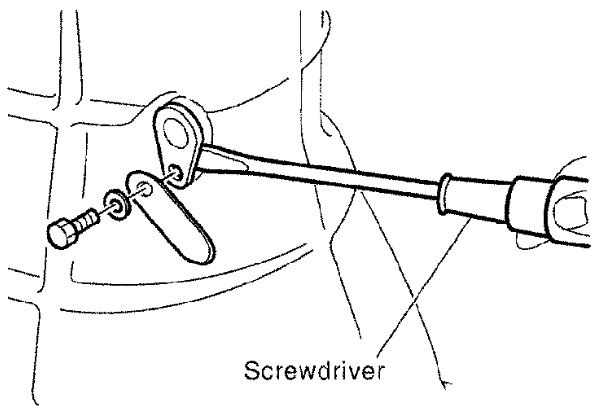

1) Remove interlock stopper bolt, washer and clip and then remove interlock stopper using suitable tool.

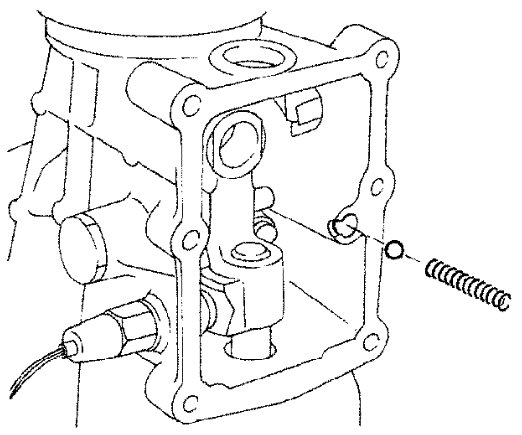

2) Remove control housing, return spring and check ball.






CAUTION:
Do not lose check ball.

3) Drive out retaining pin from striking arm using Tool.

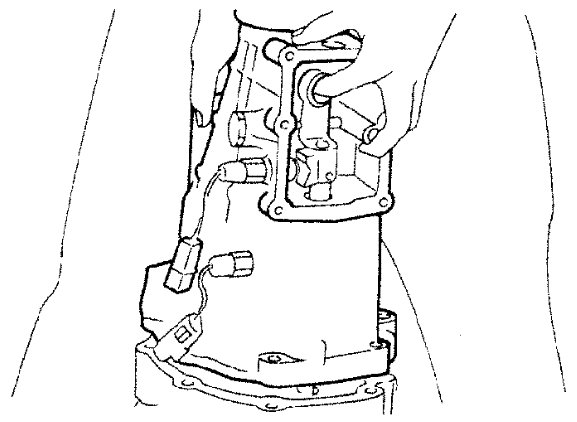

4) Remove rear extension together with striking arm by tapping lightly.





5) Remove front cover and gasket using suitable tool.

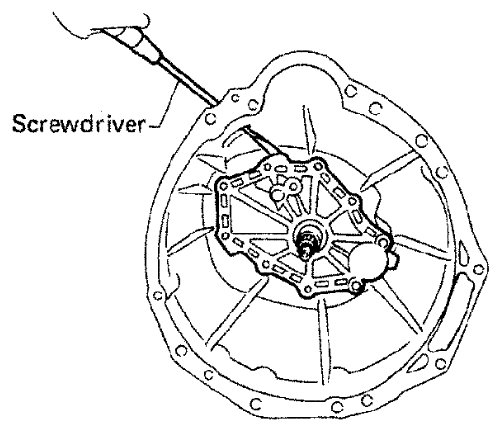

6) Remove stopper ring and main drive bearing snap ring using suitable tool.

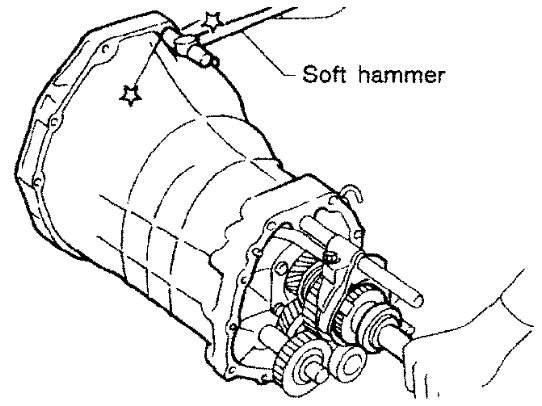

7) Remove transmission case by tapping lightly using suitable tool.





8) Remove counter gear front bearing shim and counter gear front bearing.

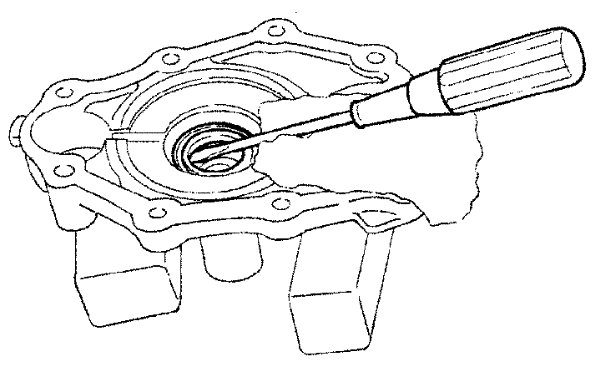

9) Remove front cover oil seal using suitable tool.






CAUTION:
Do not damage front cover.
