Inspection After Removal

Clutch Disc, Clutch Cover: Inspection after Removal [5M/T]

Inspection after Removal

Clutch Disc

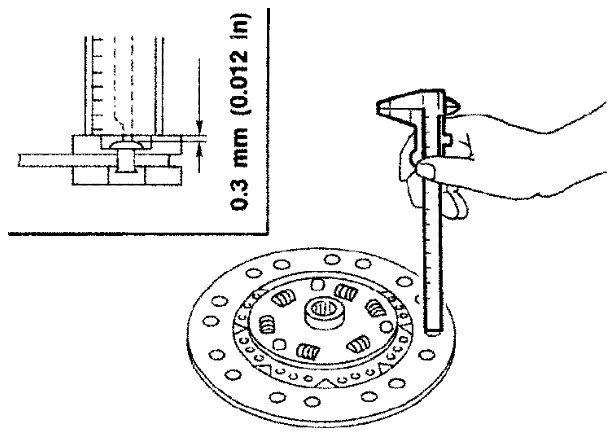

- Check the wear of the clutch disc facing.





[Engine Unit: Inspection After Disassembly] Service Data and Specifications

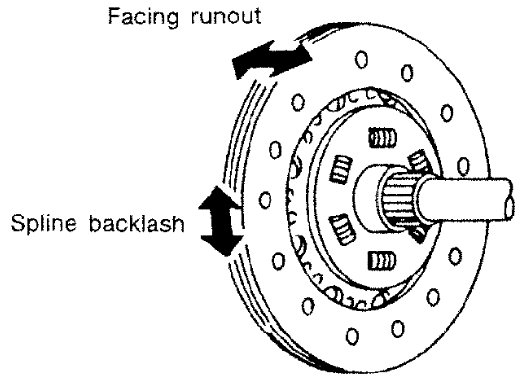

- Check the runout and backlash of the clutch disc. If the measurement exceeds the specification, replace the clutch disc.





Service Data and Specifications





Clutch Cover

- Check clutch cover thrust ring for wear or damage. If wear or damage is found, replace clutch cover assembly.

NOTE:
- Worn thrust ring will generate a beating noise when tapped at the rivet with a hammer.
- Broken thrust ring will make a clinking sound when cover is shaken up and down.

- If a trace of burn or discoloration is found on the clutch cover pressure plate to clutch disc contact surface, repair the surface with emery paper. If surface is damaged or distorted, replace the assembly.

Flywheel

- Check contact surface of flywheel for slight burns or discoloration. If any are found, repair flywheel with emery paper.





- Check the flywheel runout. Refer to Inspection After Disassembly.
