Adjustment After Installation




Clutch Disc, Clutch Cover: Adjustment after Installation [5M/T]

Adjustment after Installation

Clutch Cover

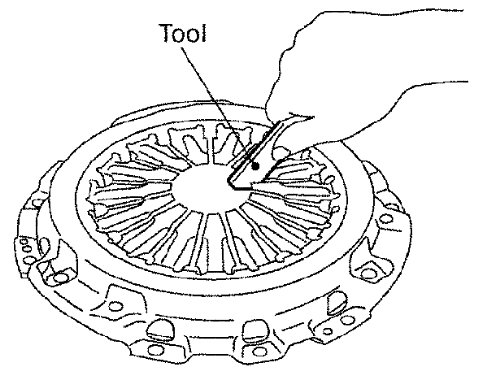

With the clutch cover installed on the vehicle, check the diaphragm spring toe height for unevenness. If unevenness exceeds the limit, adjust the diaphragm spring toe height using Tool.





Service Data and Specifications
