Symptom Related Diagnostic Procedures

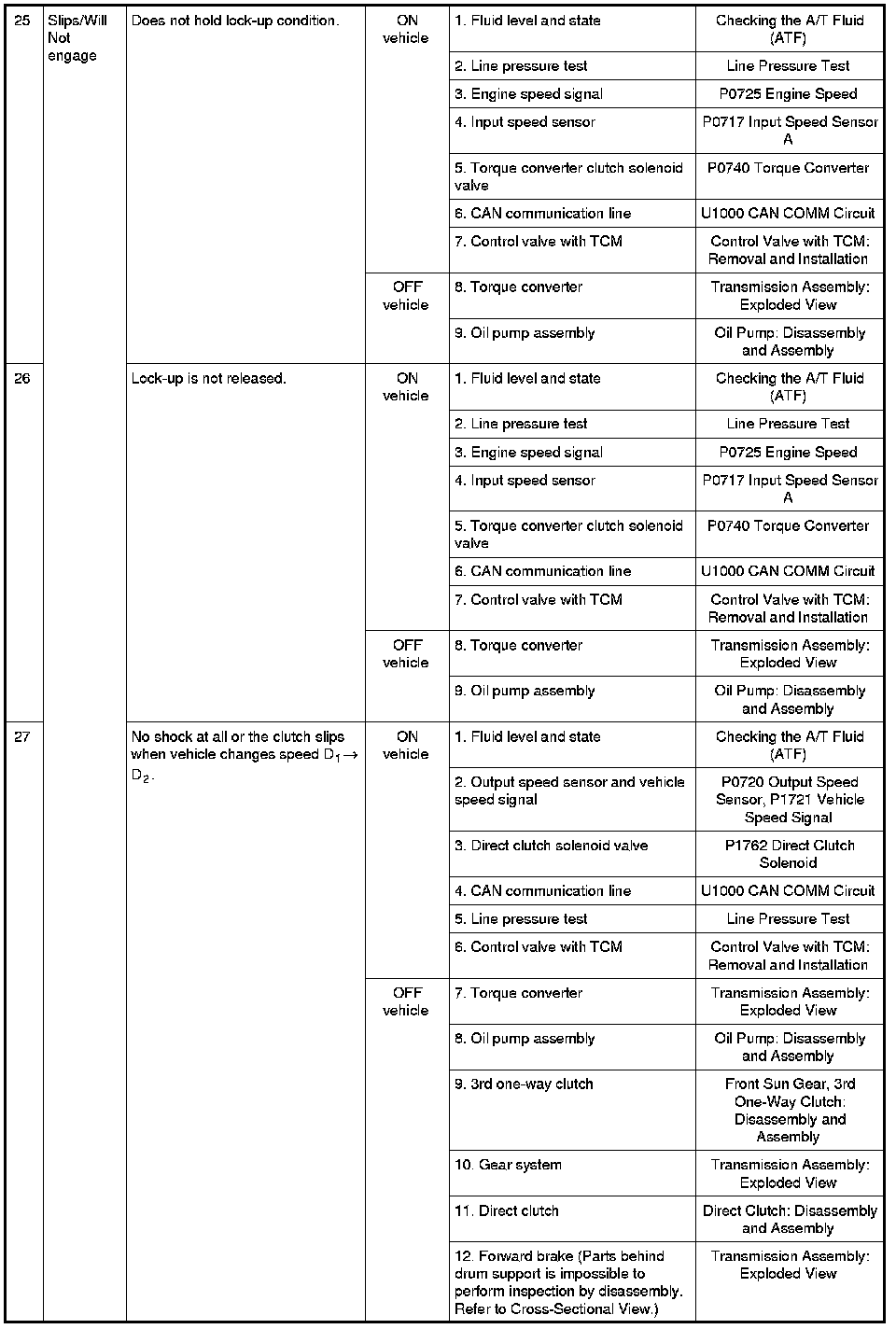

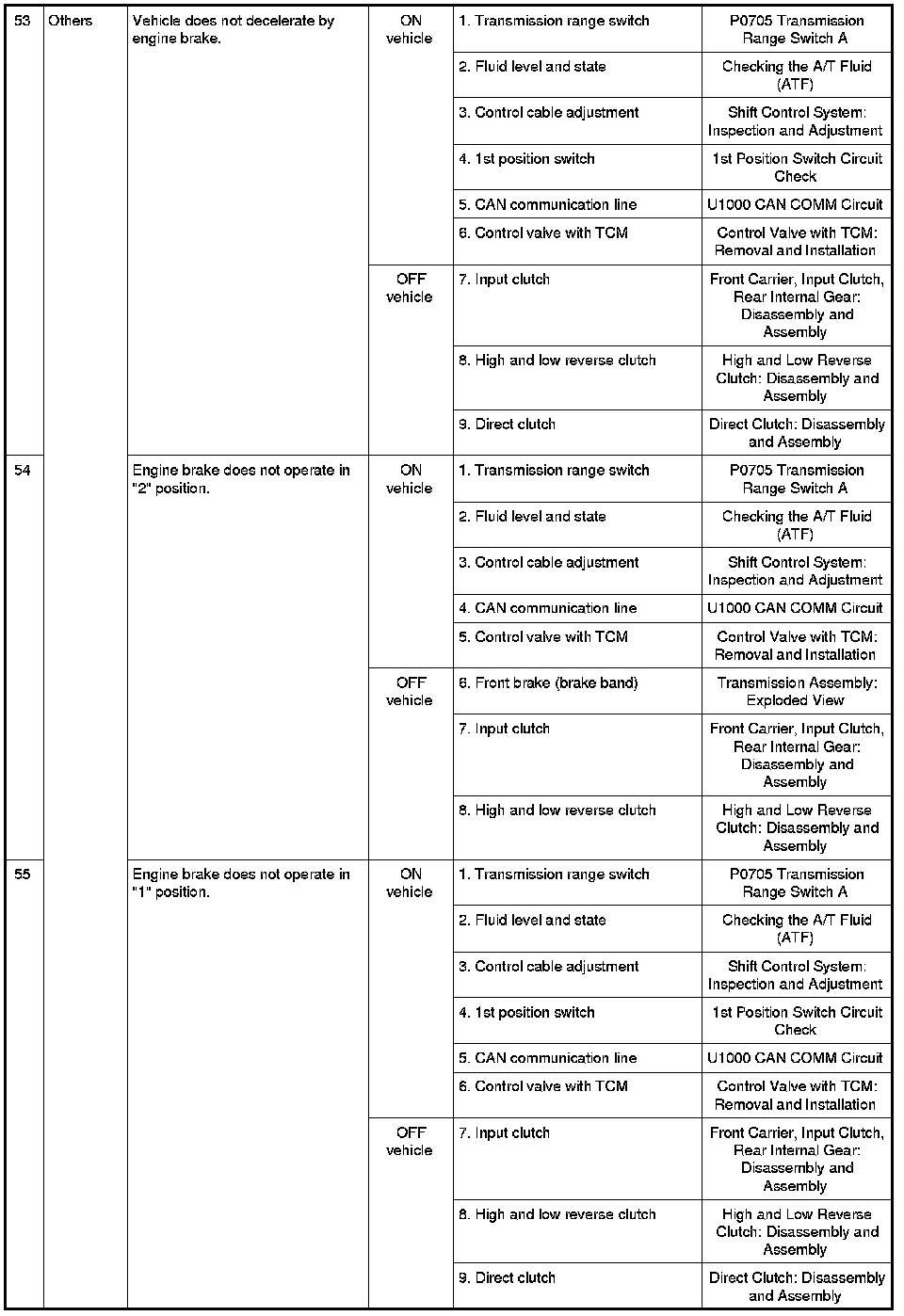

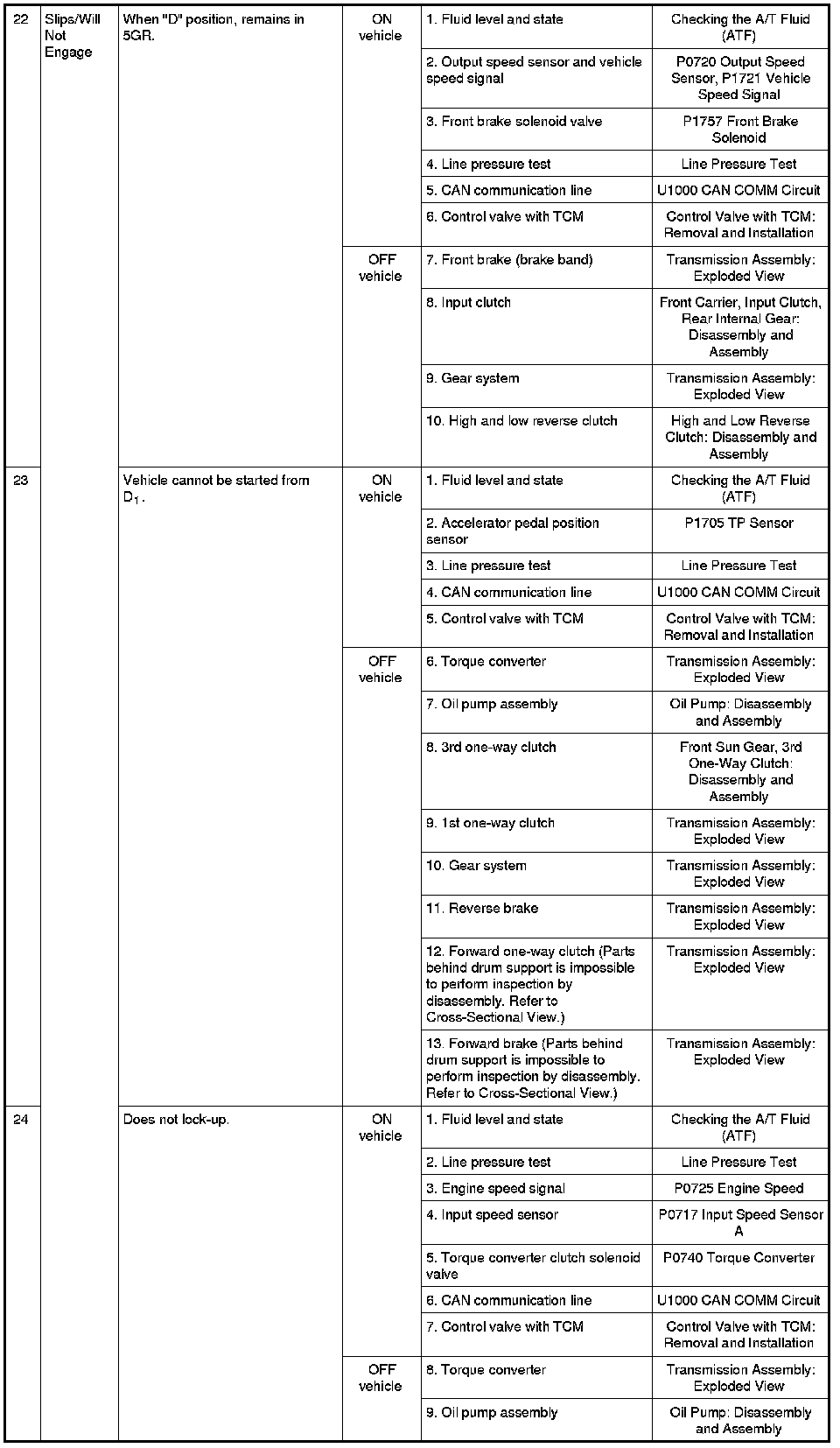

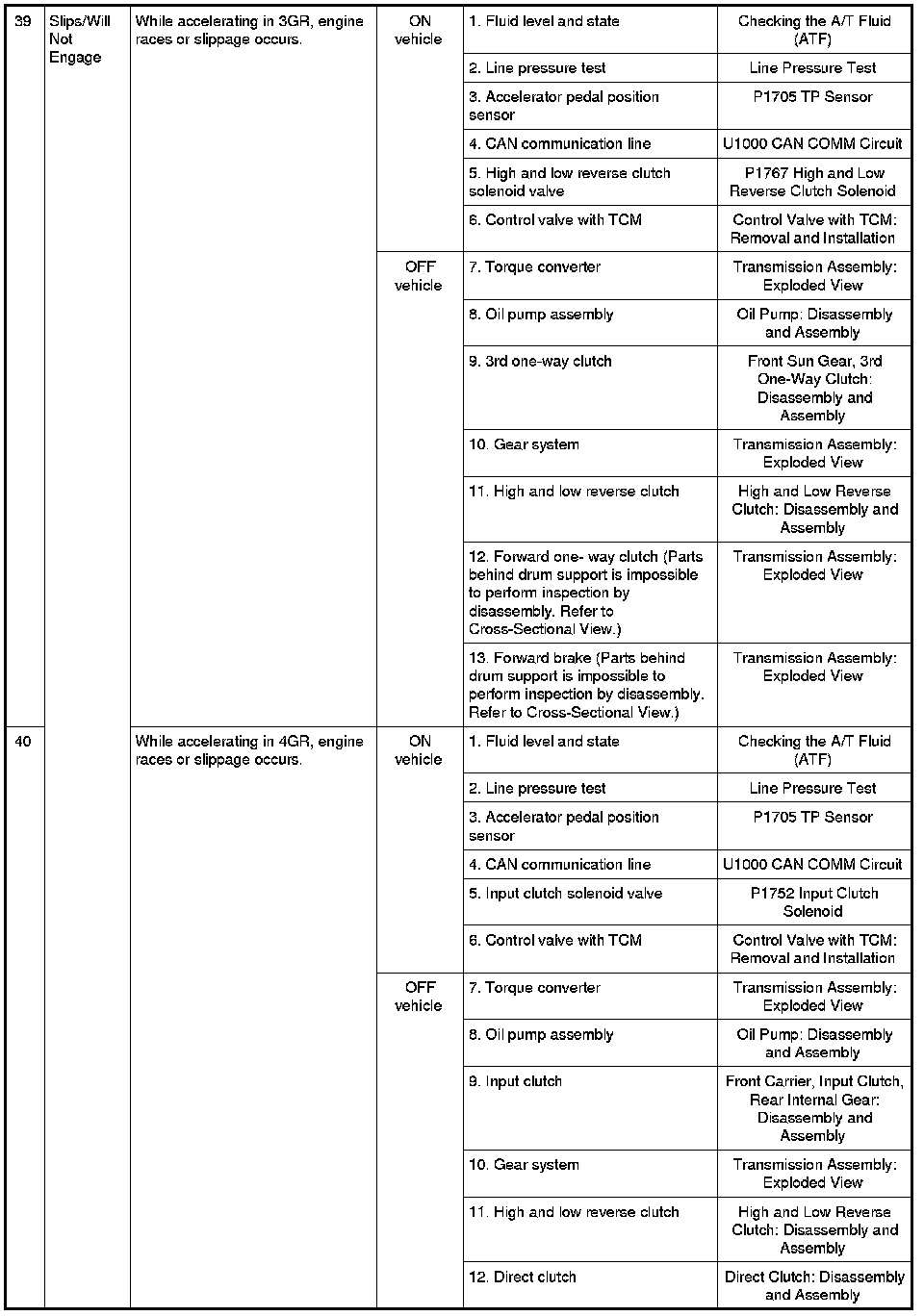

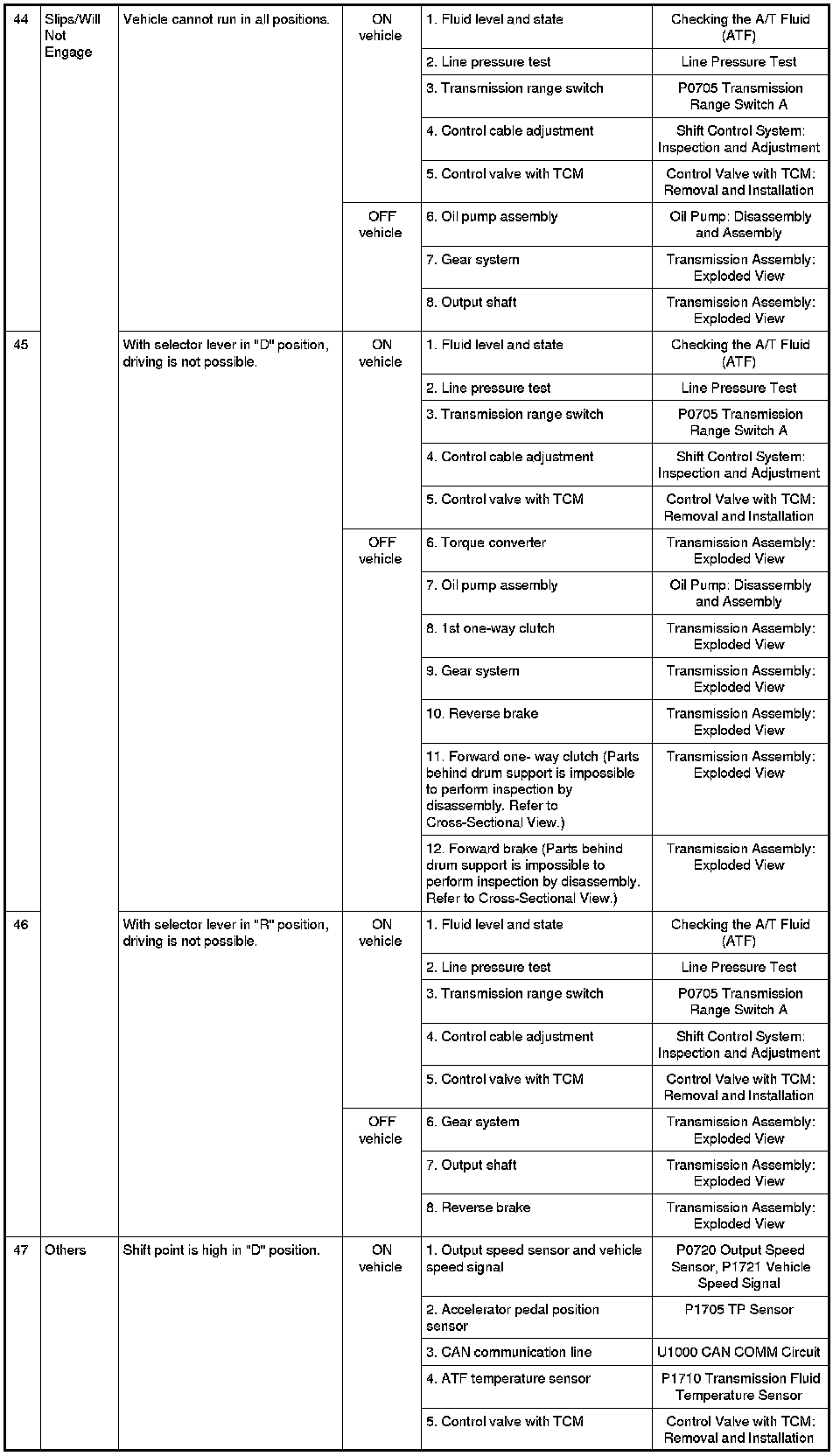

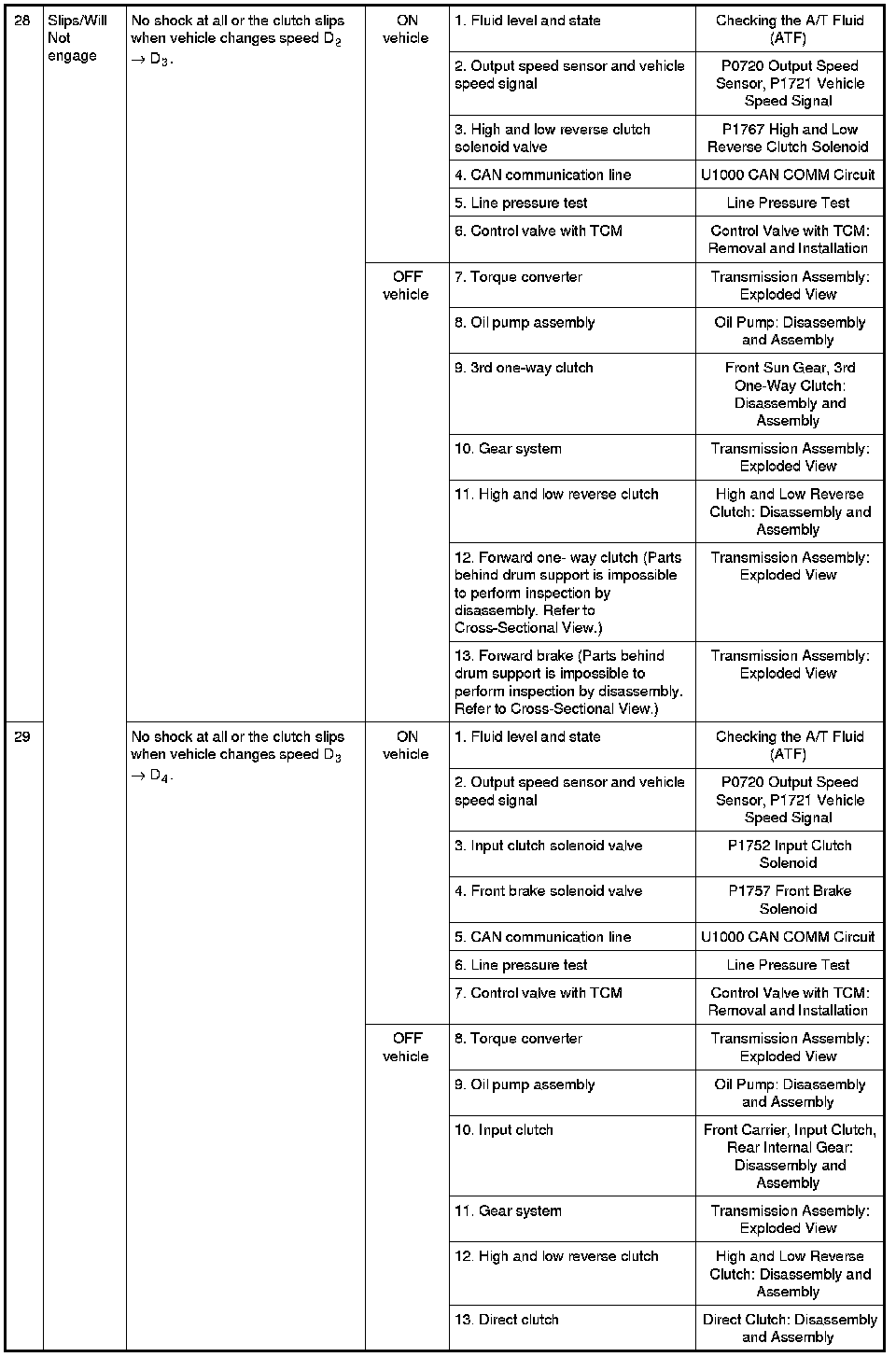

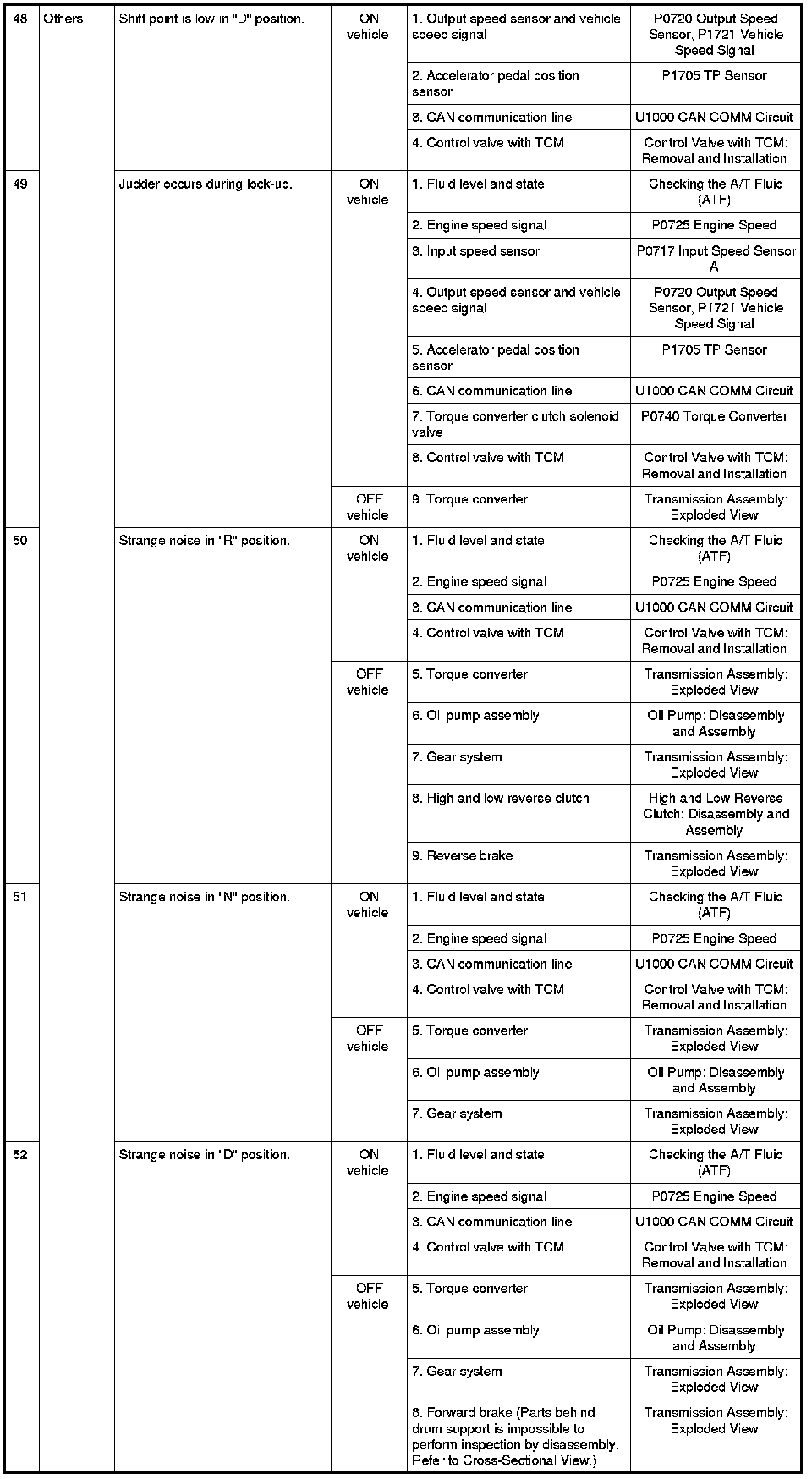

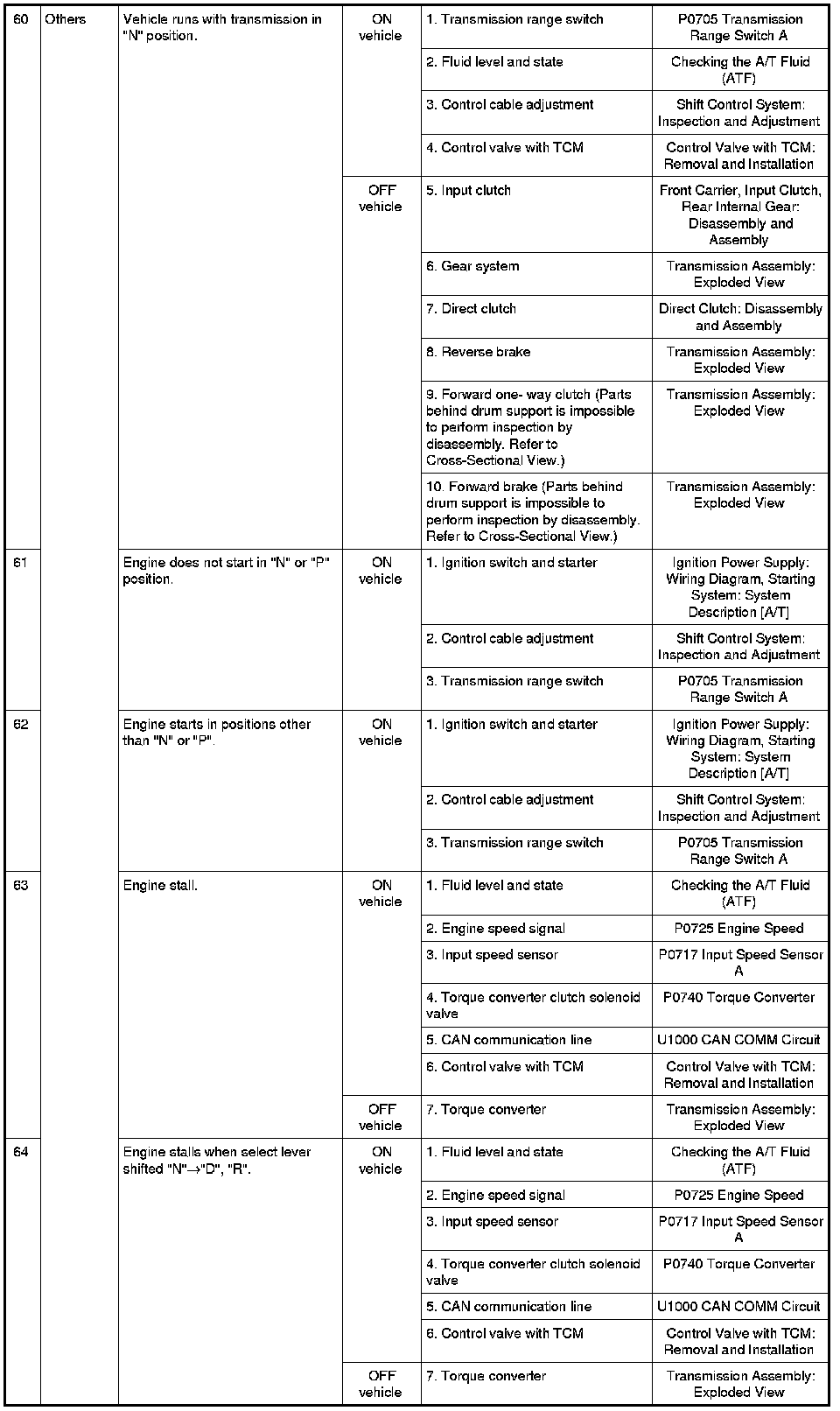

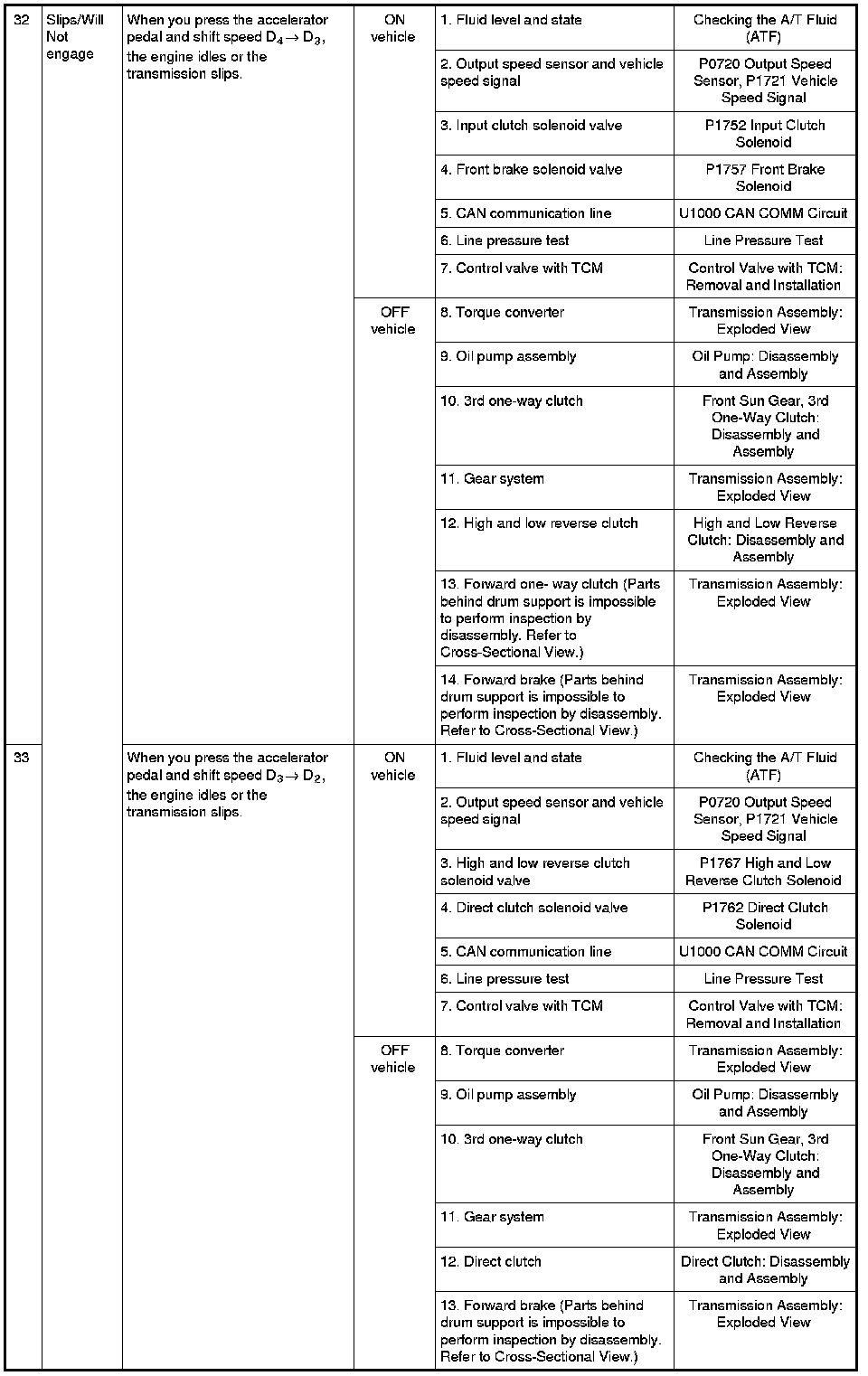

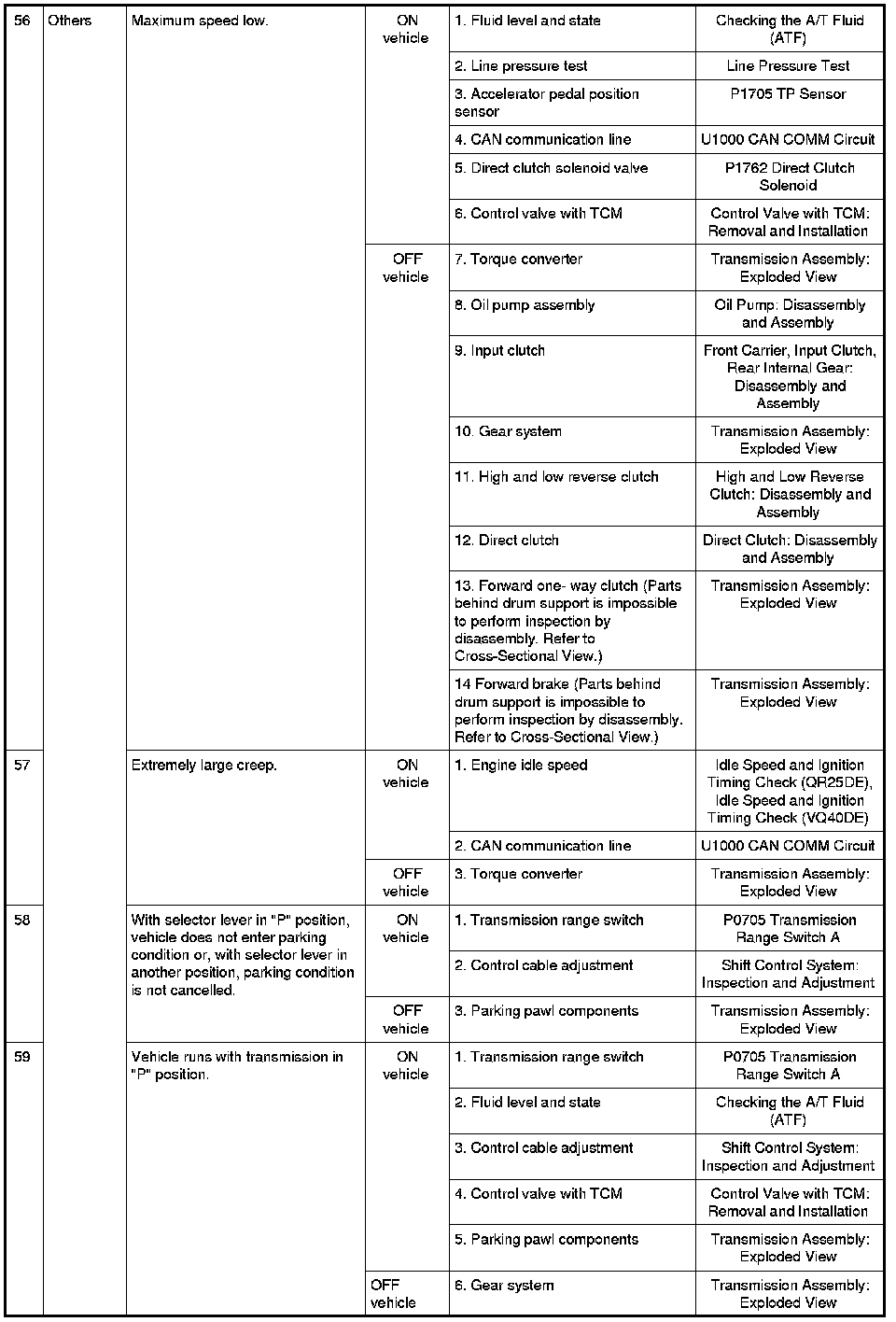

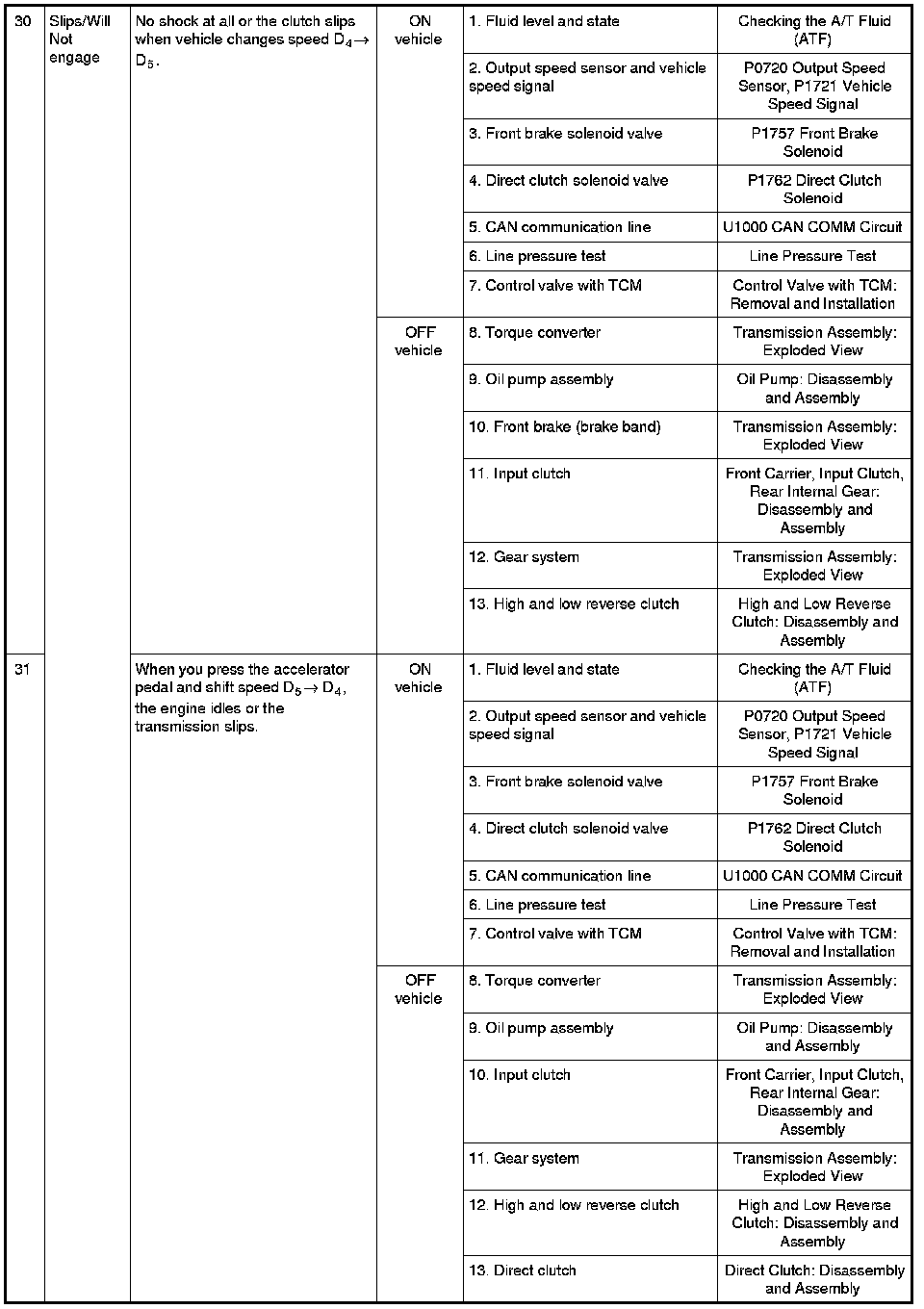

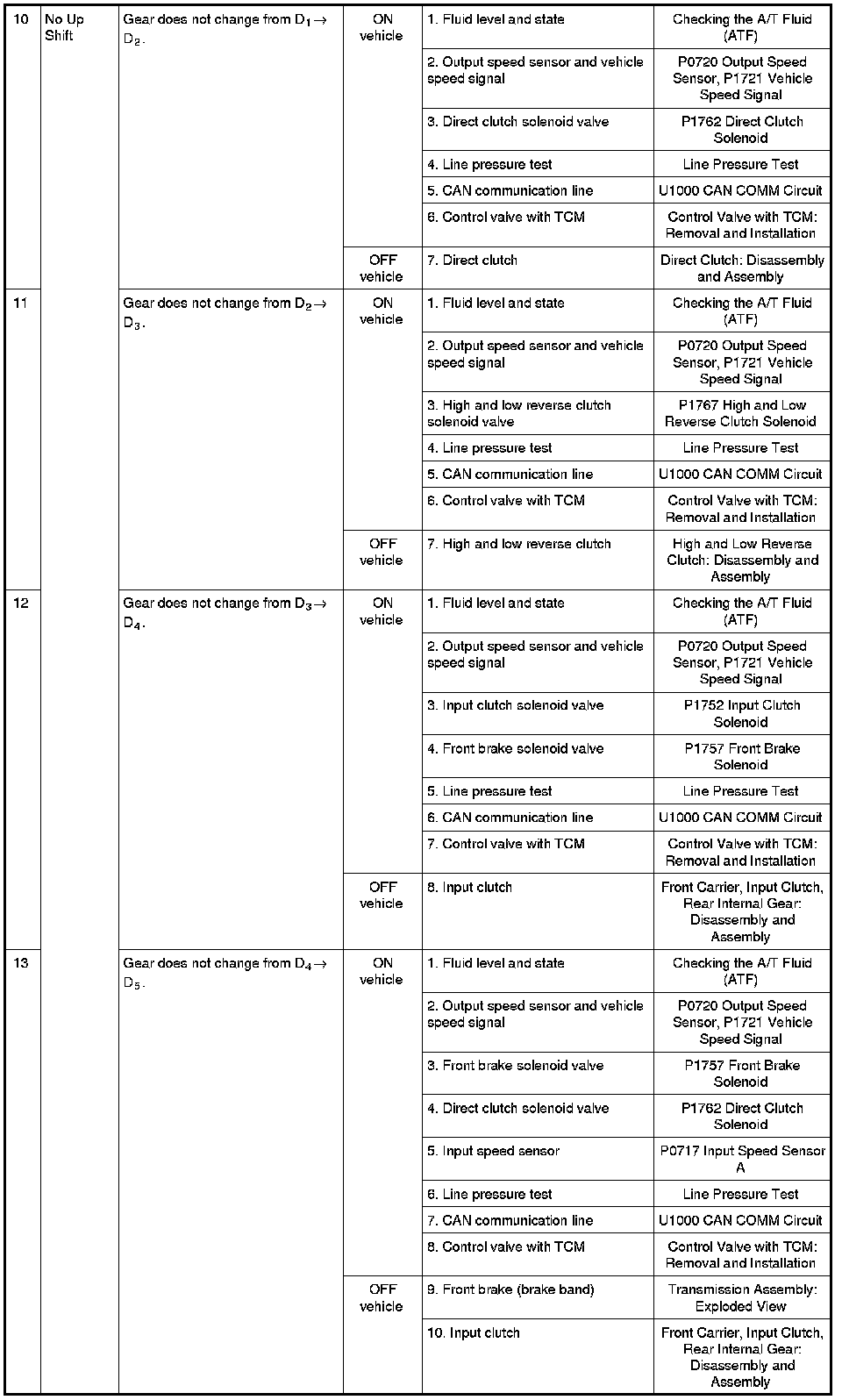

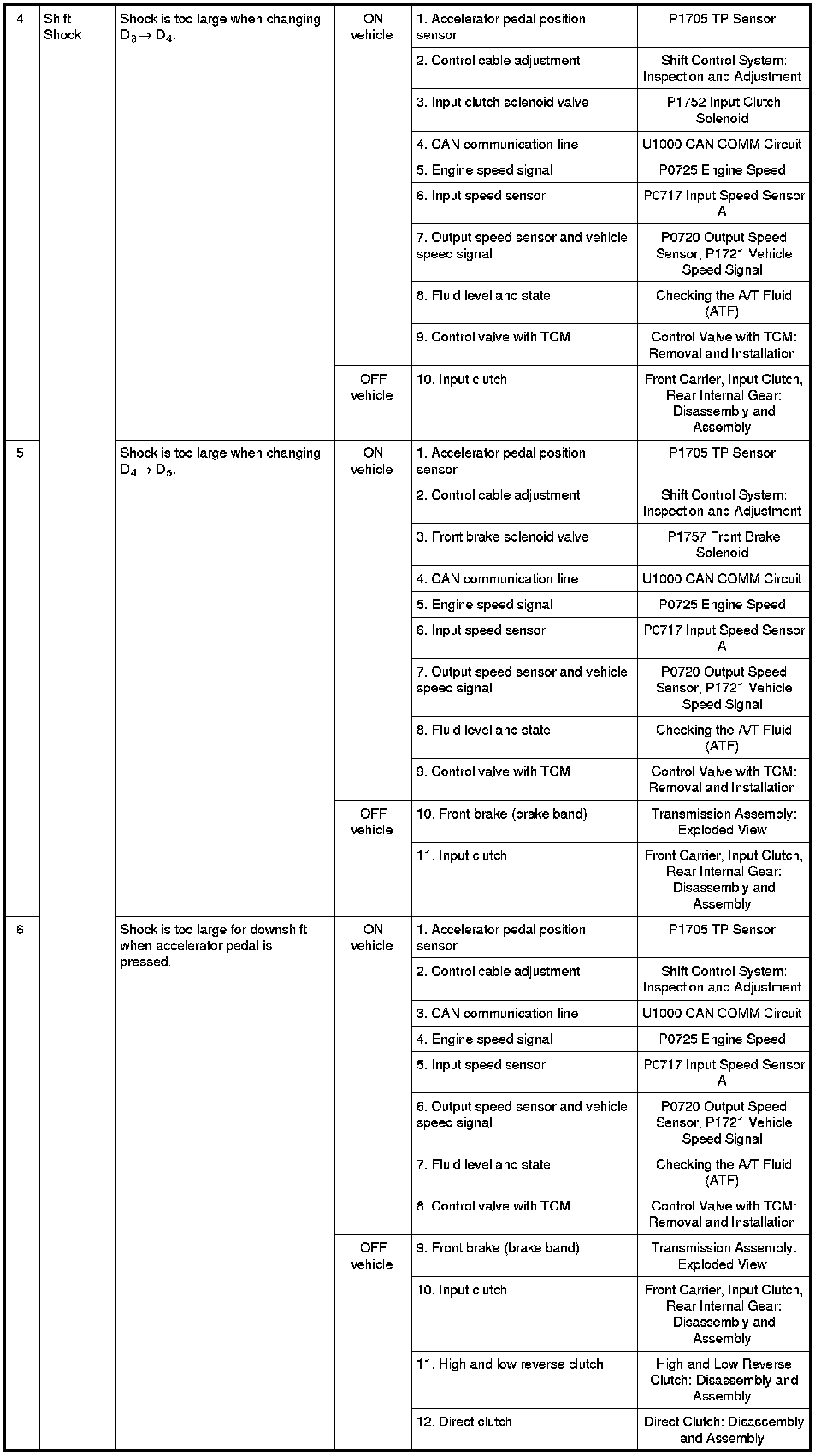

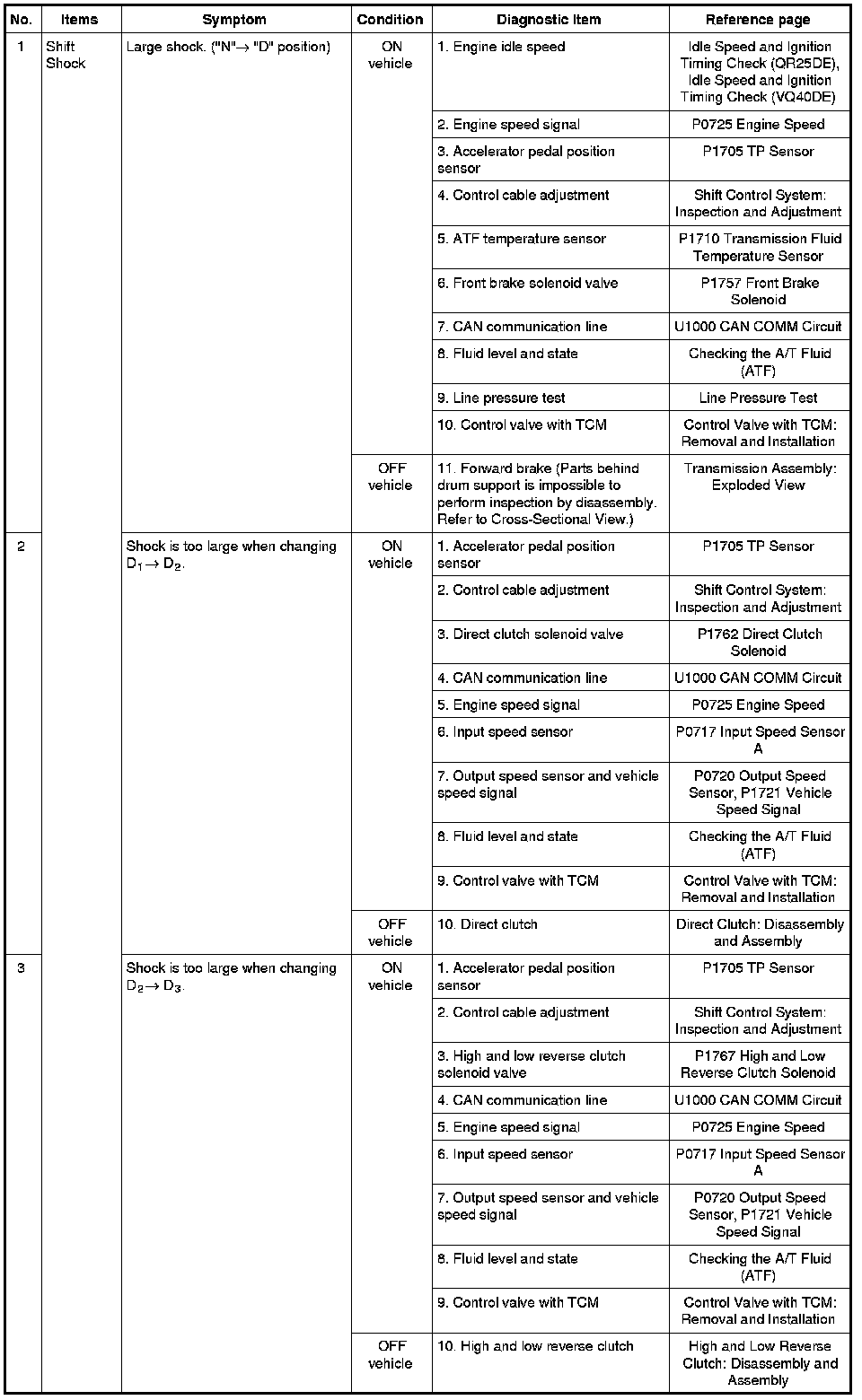

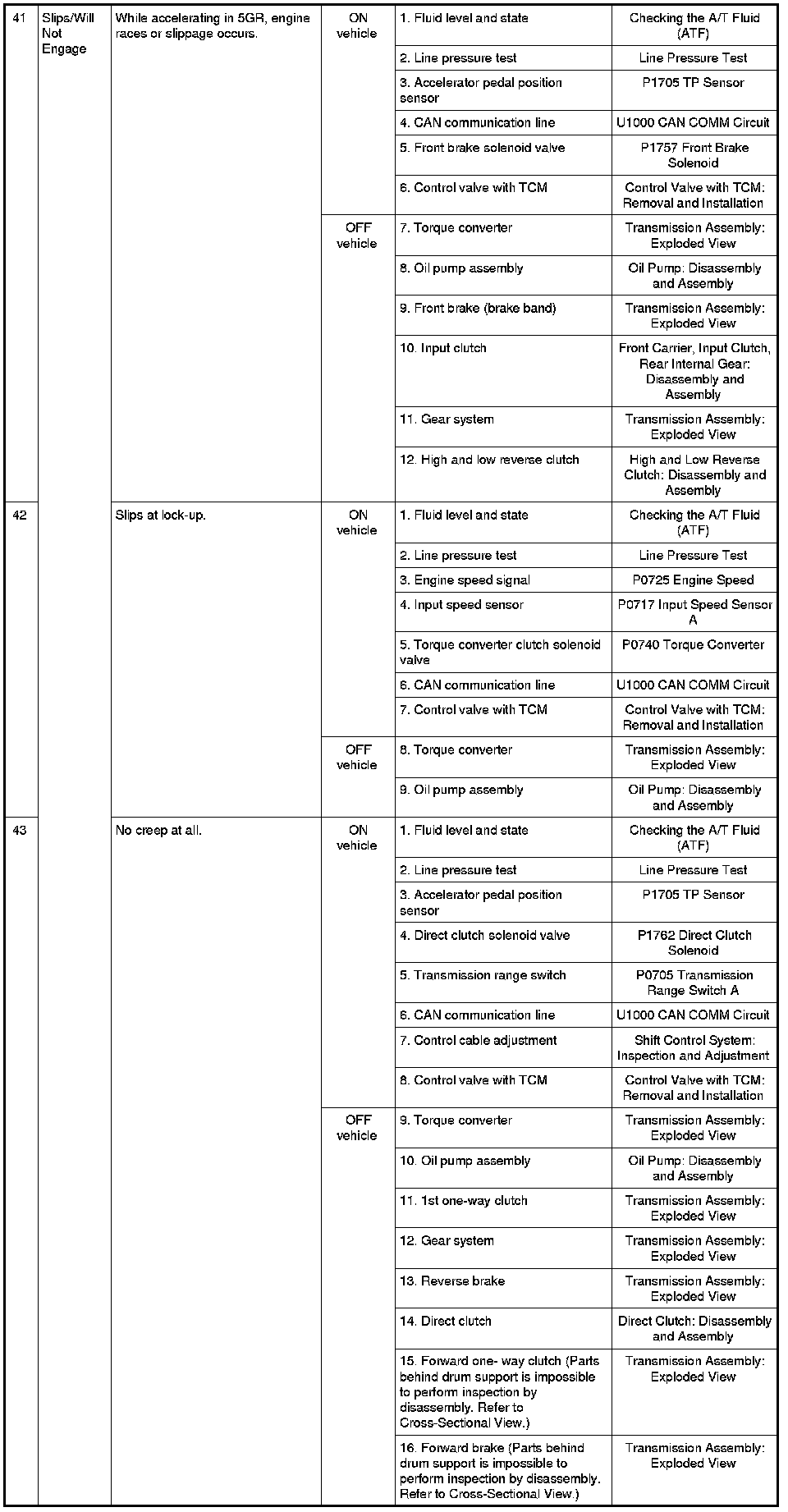

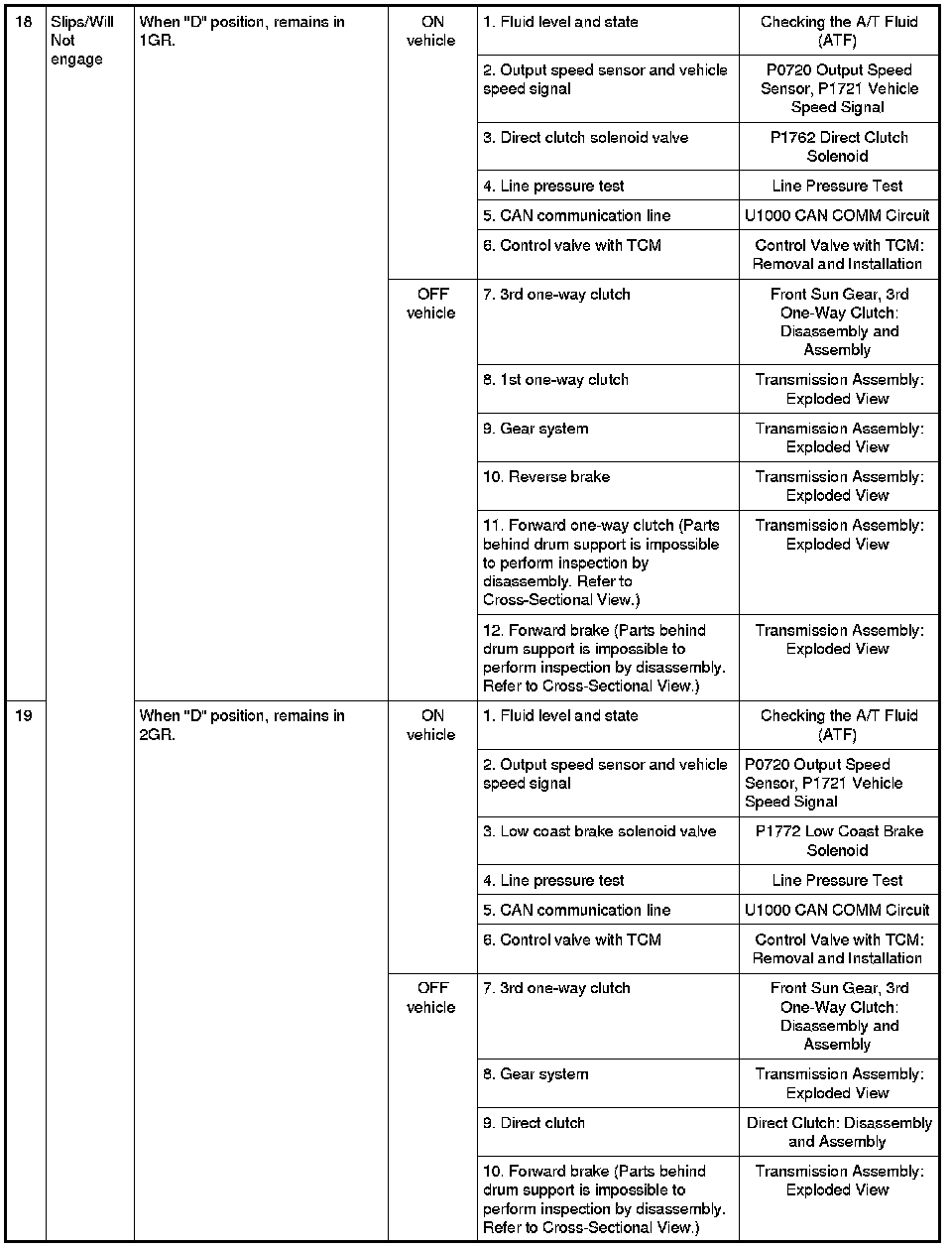

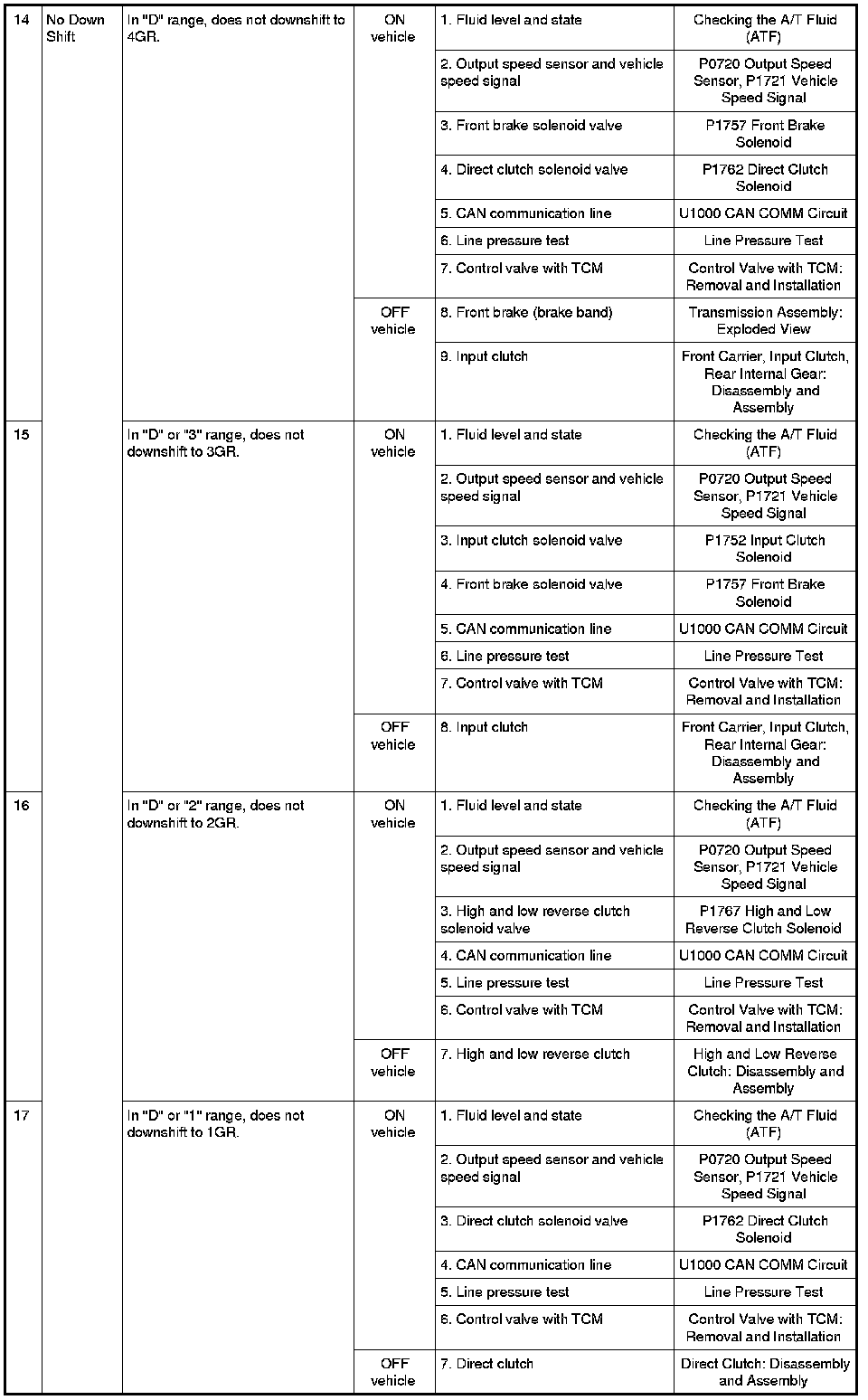

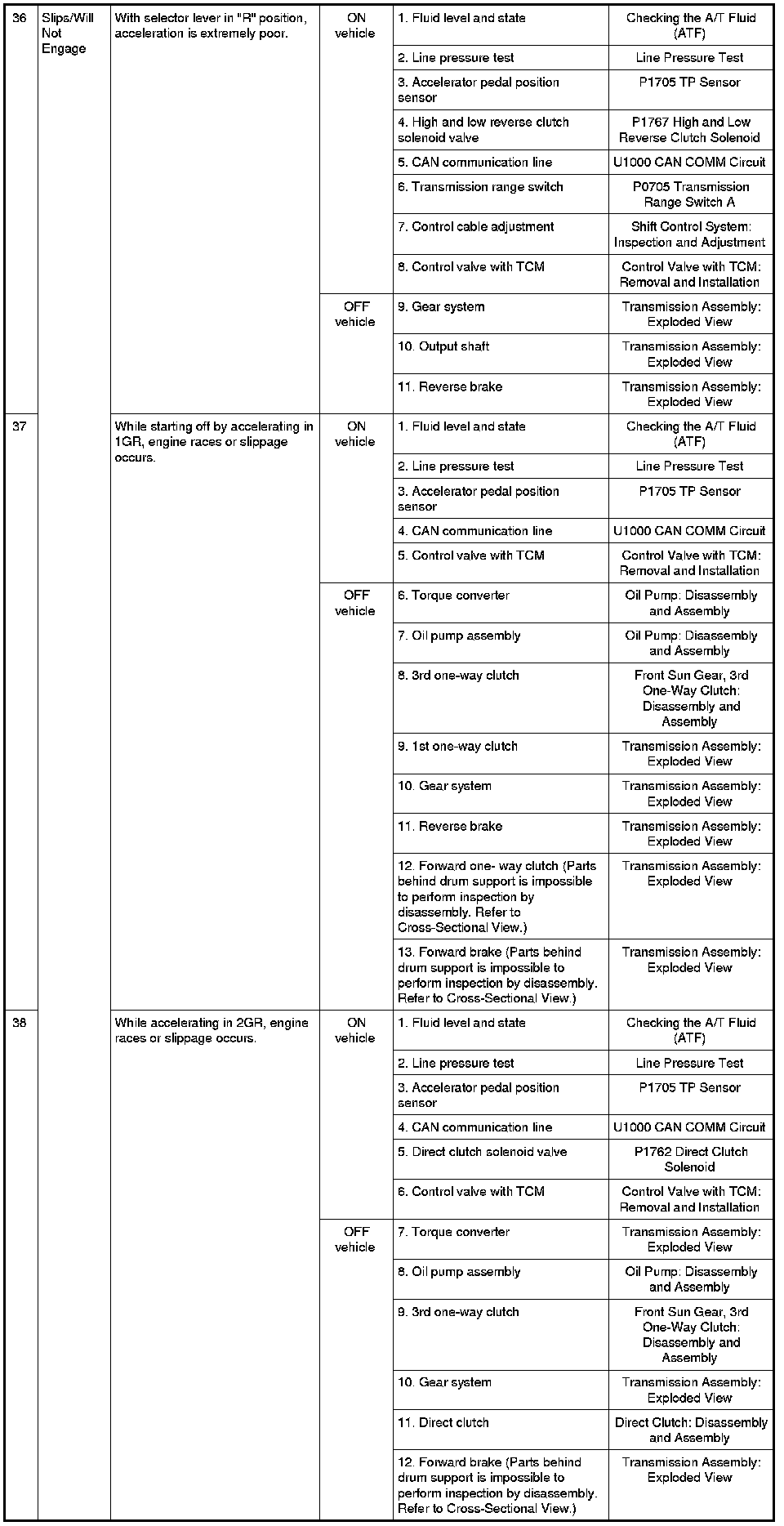

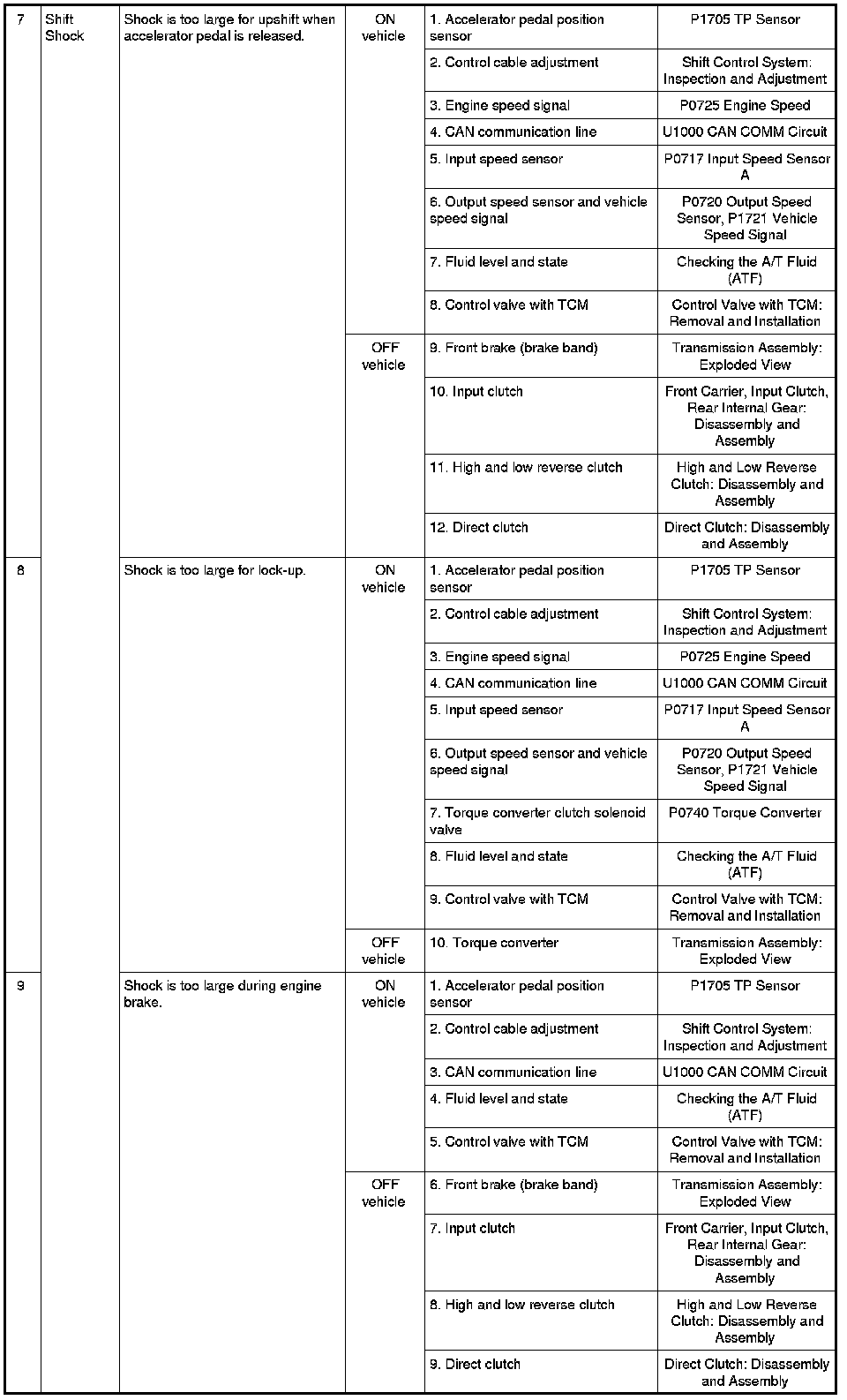

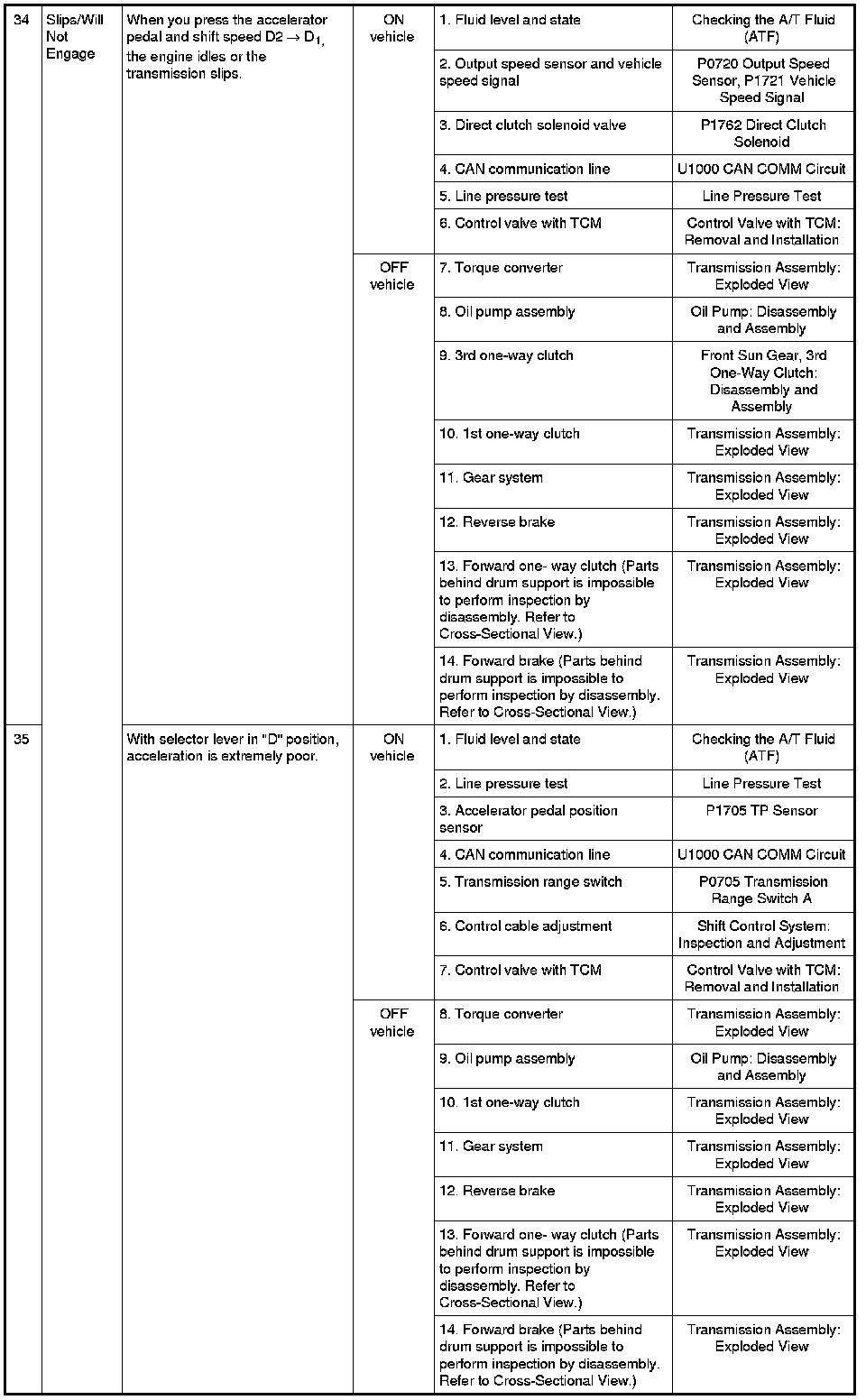

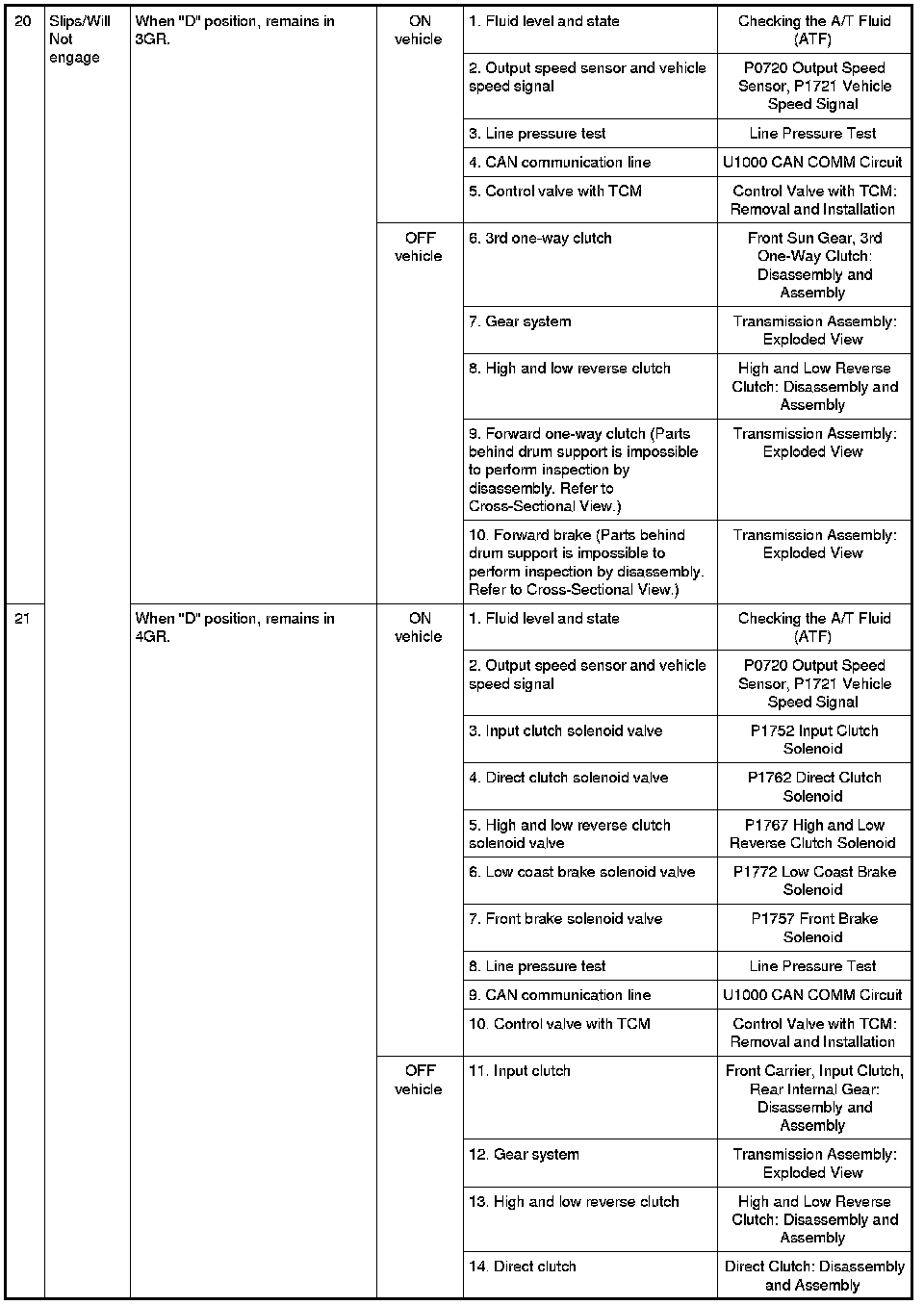

Symptom Chart
- The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
- Overhaul and inspect inside the A/T only if A/T fluid condition is NG. Refer to
[Checking the A/T Fluid (ATF)] Checking the A/T Fluid (ATF).
