Disassembly and Assembly

Oil Pump: Disassembly and Assembly

Disassembly

1) Remove oil pump housing from oil pump cover.

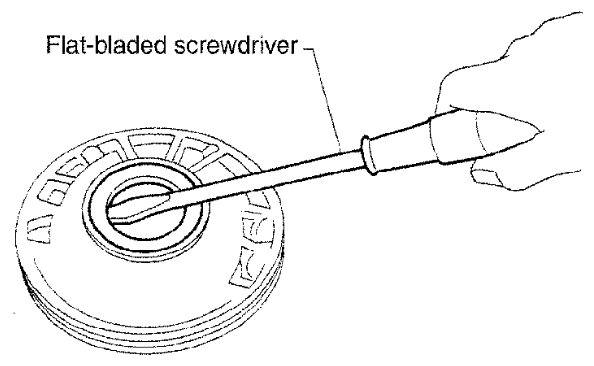

2) Remove oil pump housing oil seal using suitable tool.






CAUTION:
Do not scratch oil pump housing.

3) Remove O-ring from oil pump housing.






CAUTION:
Do not reuse O-ring.

4) Remove O-ring from oil pump cover.






Assembly

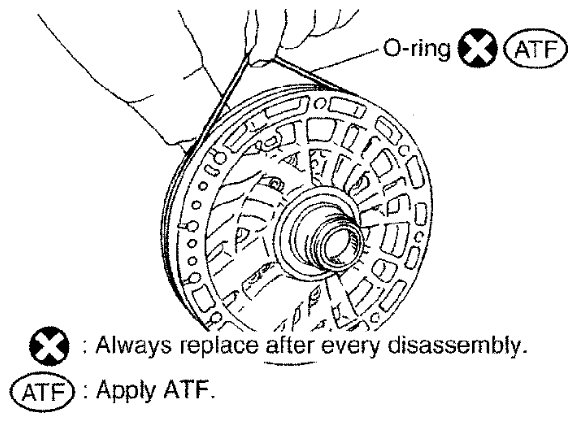

1) Install O-ring to oil pump cover.






CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

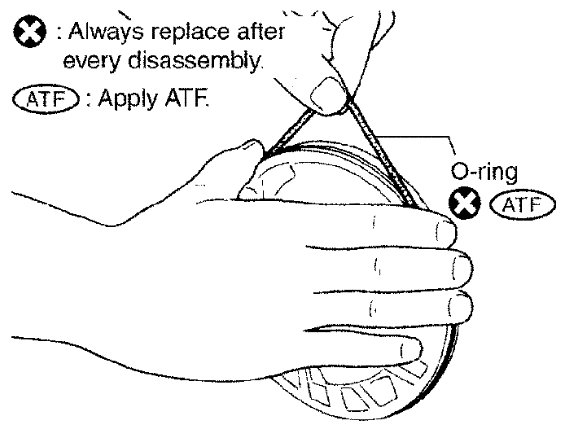

2) Install O-ring to oil pump housing.






CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

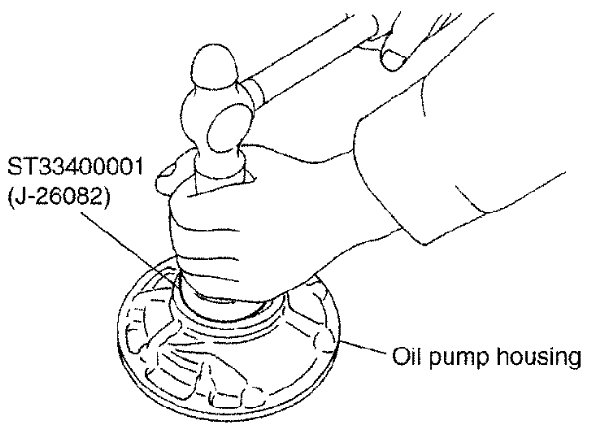

3) Install oil pump housing oil seal to the oil pump housing until it is flush using Tool.











CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.

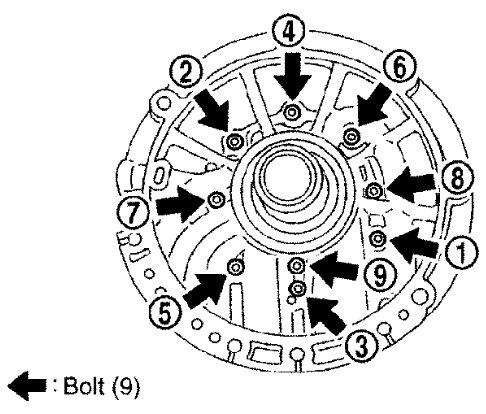

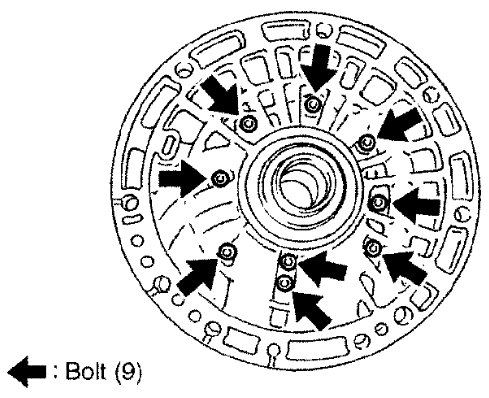

4) After temporarily tightening the bolts for the oil pump housing to the oil pump cover, tighten them to the specified torque in the sequence shown.
