Overhaul

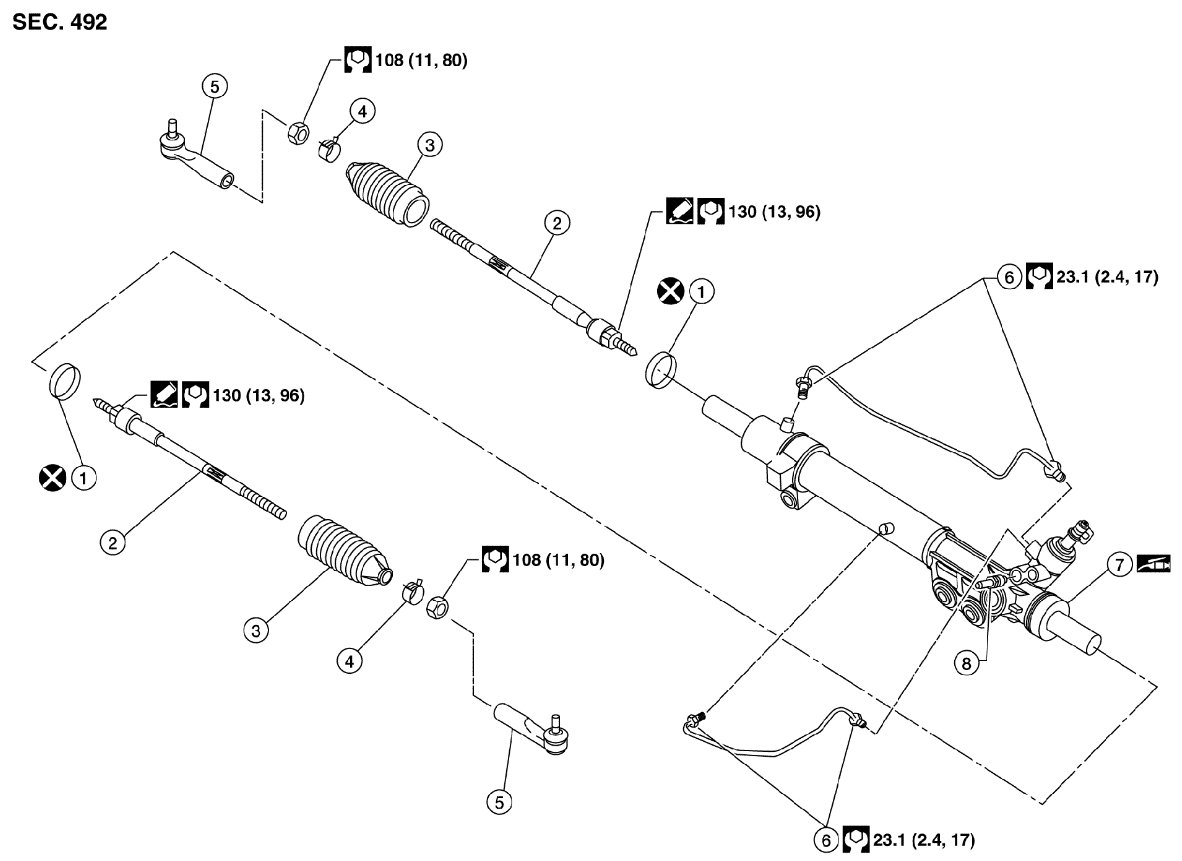

Steering Gear and Linkage: Disassembly and Assembly










CAUTION:

- Secure the gear housing assembly with a vise. Use copper plates or equivalent to prevent it from being damaged. Do not grip the cylinder with a vise.
- Before performing disassembly, clean the gear housing assembly. Be careful not to allow any cleaner to contact the discharge and return port connectors.

Disassembly

1) Remove the cylinder tubes from the gear housing assembly.
2) Loosen the lock nuts of the outer sockets, then remove the outer sockets from the inner sockets.
3) Remove the boot clamps from the boots, then remove the boots from the inner sockets and gear housing assembly.

CAUTION:
- Do not reuse the large-diameter boot clamps.
- Do not damage the boots, inner socket or gear housing assembly. If they are damaged, replace them.

4) Remove the inner sockets.

Inspection after Disassembly

Boot

Check boot for tears, cracks and deformation. Replace if necessary.

Gear Housing Assembly

Check gear housing assembly for dents, cracks or damage. Replace as an assembly if necessary.

Outer Socket and Inner Socket

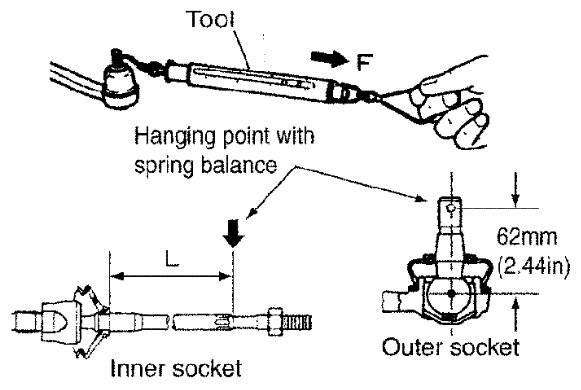

SWING TORQUE

- Measure the swing torque, using Tool. When ball stud and inner socket start moving the measured value must be within the specification. If the reading is outside the specification, replace the socket.











Steering Wheel and Column Steering Wheel and Column Steering Wheel and Column Steering Wheel and Column Steering Wheel and Column

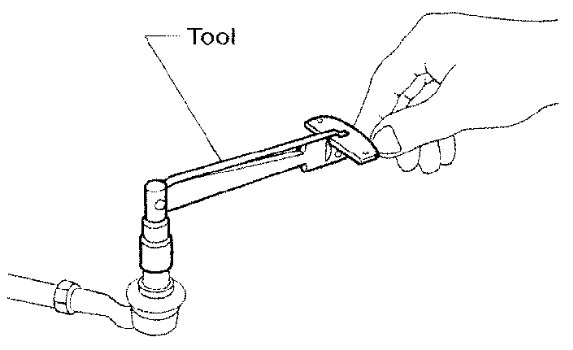

ROTATING TORQUE

- Measure the rotating torque, using Tool. If the value is outside the specification, replace the outer sockets.











Steering Wheel and Column

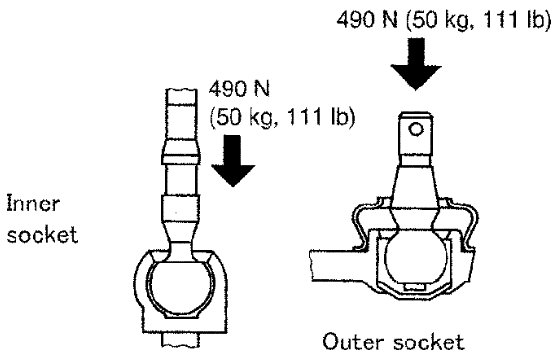

AXIAL END PLAY

- Apply a load of 490 N (50 kg-f, 110 lb-f) to the ball stud axially. Use a dial gauge to measure the amount of the movement that the stud makes. If the value is outside the specification, replace the sockets.





Steering Wheel and Column Steering Wheel and Column





Assembly

1) Install the inner sockets.

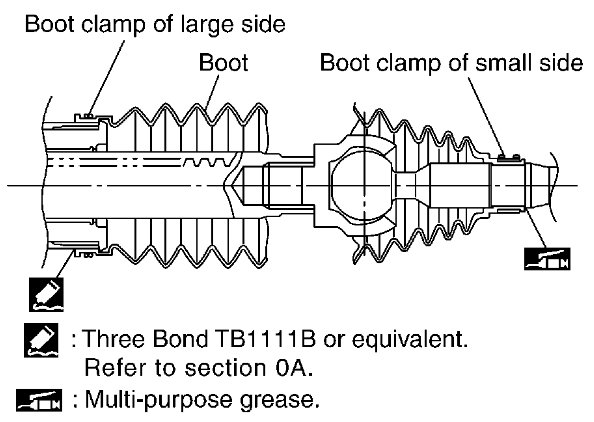

2) Install the large-diameter side of the boots to the gear housing assembly.





3) Install the small-diameter side of the boots to the groove of the inner sockets.

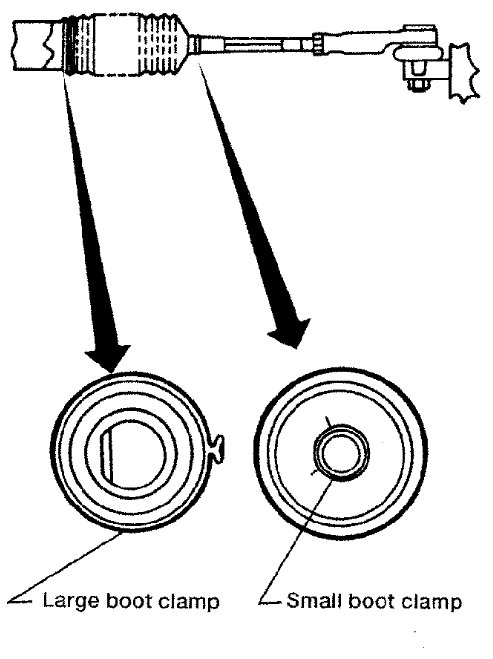

4) Install the boot clamps to the boots, as shown.






CAUTION:
Do not reuse the large boot clamps.

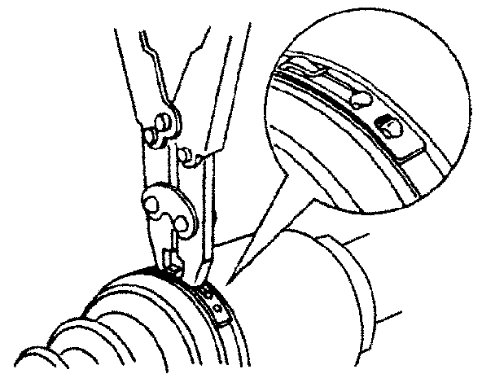

5) Crimp the large boot clamps, using Tool.











6) Install the cylinder tubes to the gear housing assembly.
7) Install the lock nuts and outer sockets to the inner sockets.

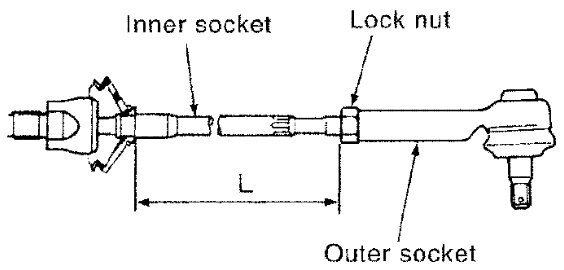

8) Thread the outer sockets onto the inner sockets to the specified length (L) and a minimum thread depth of 18 threads, then tighten the lock nuts to the specified torque. Refer to [Steering Gear and Linkage: Disassembly and Assembly]. Reconfirm that the tie-rod length (L) is within specification.
