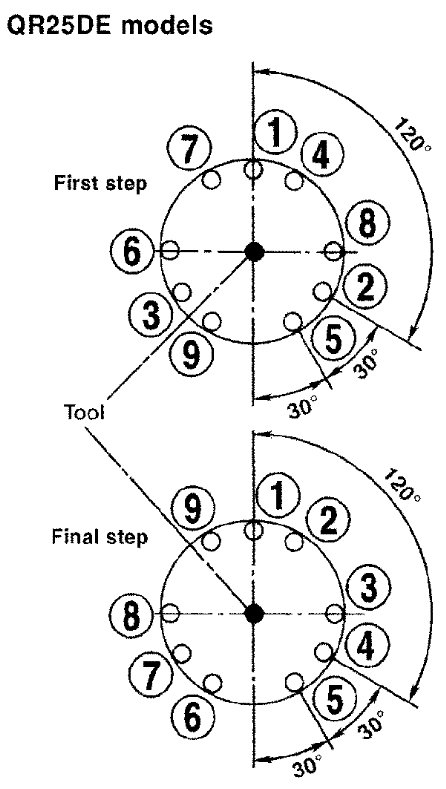

Torque & Sequence For the Pressure Plate

Clutch Disc, Clutch Cover: Exploded View [5M/T]













Install clutch disc and clutch cover. Pre-tighten the bolts and install Tool. Then tighten the clutch cover bolts evenly in two steps to the specified torque in the order shown.
