Crash Zone Sensor

Crash Zone Sensor: Removal and Installation

Removal

CAUTION:

- Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at least three minutes.

1) Disconnect the negative and positive battery terminals, then wait at least three minutes.

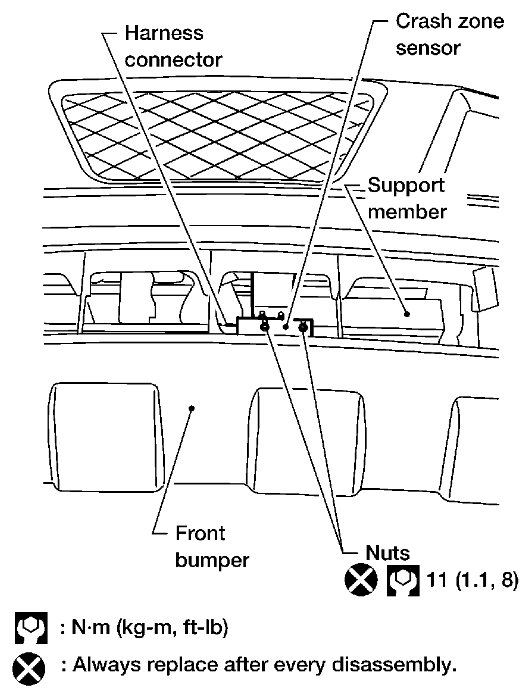

2) Remove crash zone sensor nuts and shield from support member.





3) Disconnect the crash zone sensor harness connector.
4) Remove crash zone sensor.

CAUTION:

- Replace crash zone sensor if it has been dropped or sustained an impact.
- Do not disassemble crash zone sensor.

Installation

Installation is in the reverse order of removal.

- After the work is complete, perform self-diagnosis to check that no malfunction is detected. Refer to [SRS Operation Check] SRS Operation Check.
