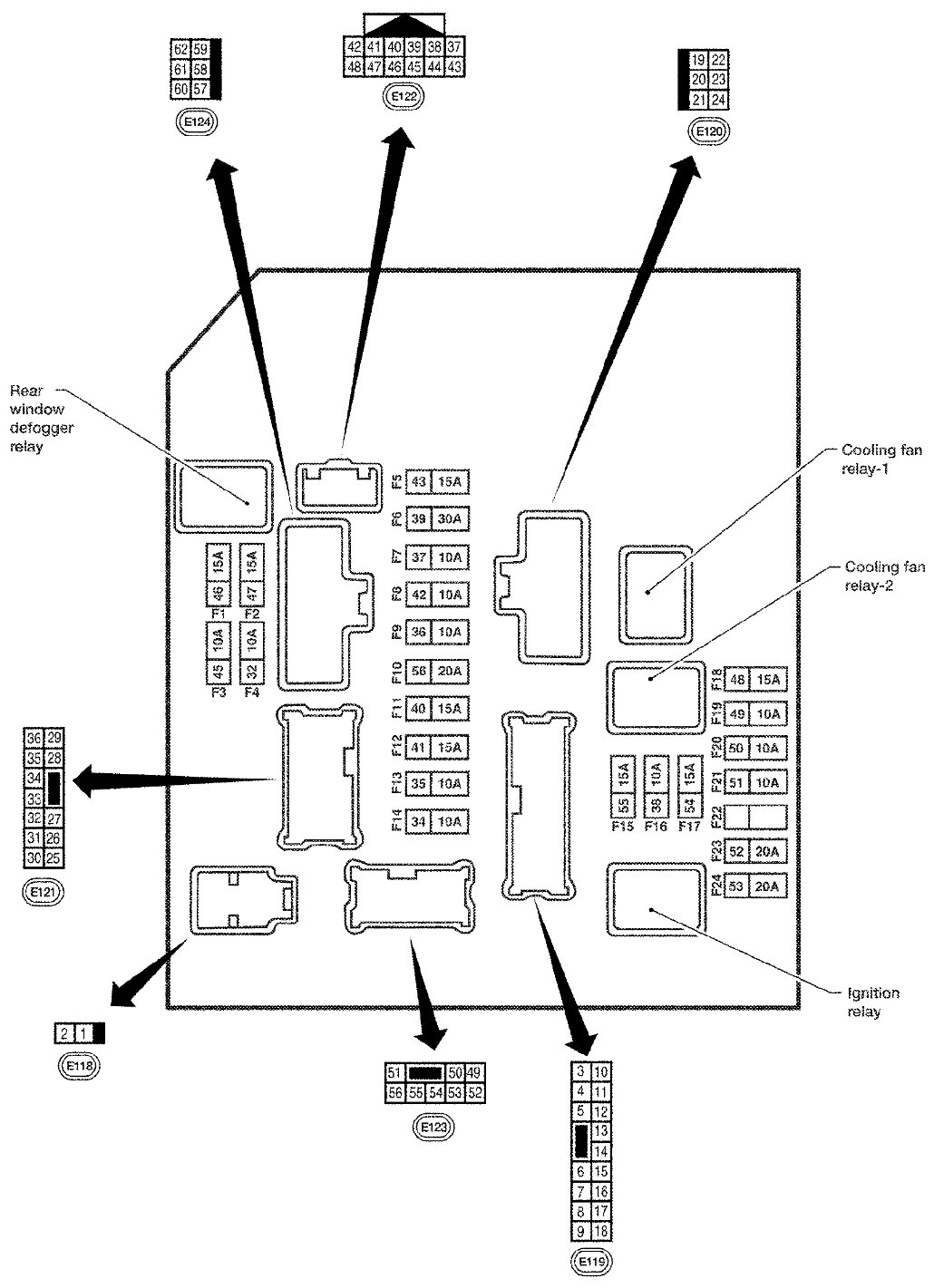

IPDM E/R Terminal Arrangement




IPDM E/R Terminal Arrangement





NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers

represent the fuse numbers as they appear in the wiring diagrams.
