DTC Check (with SDT)
DTC Check (with SDT)
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.
- Activate and display TPMS transmitter IDs
- Display tire pressure reported by the TPMS transmitter
- Read TPMS DTCs
- Register TPMS transmitter IDs
Function

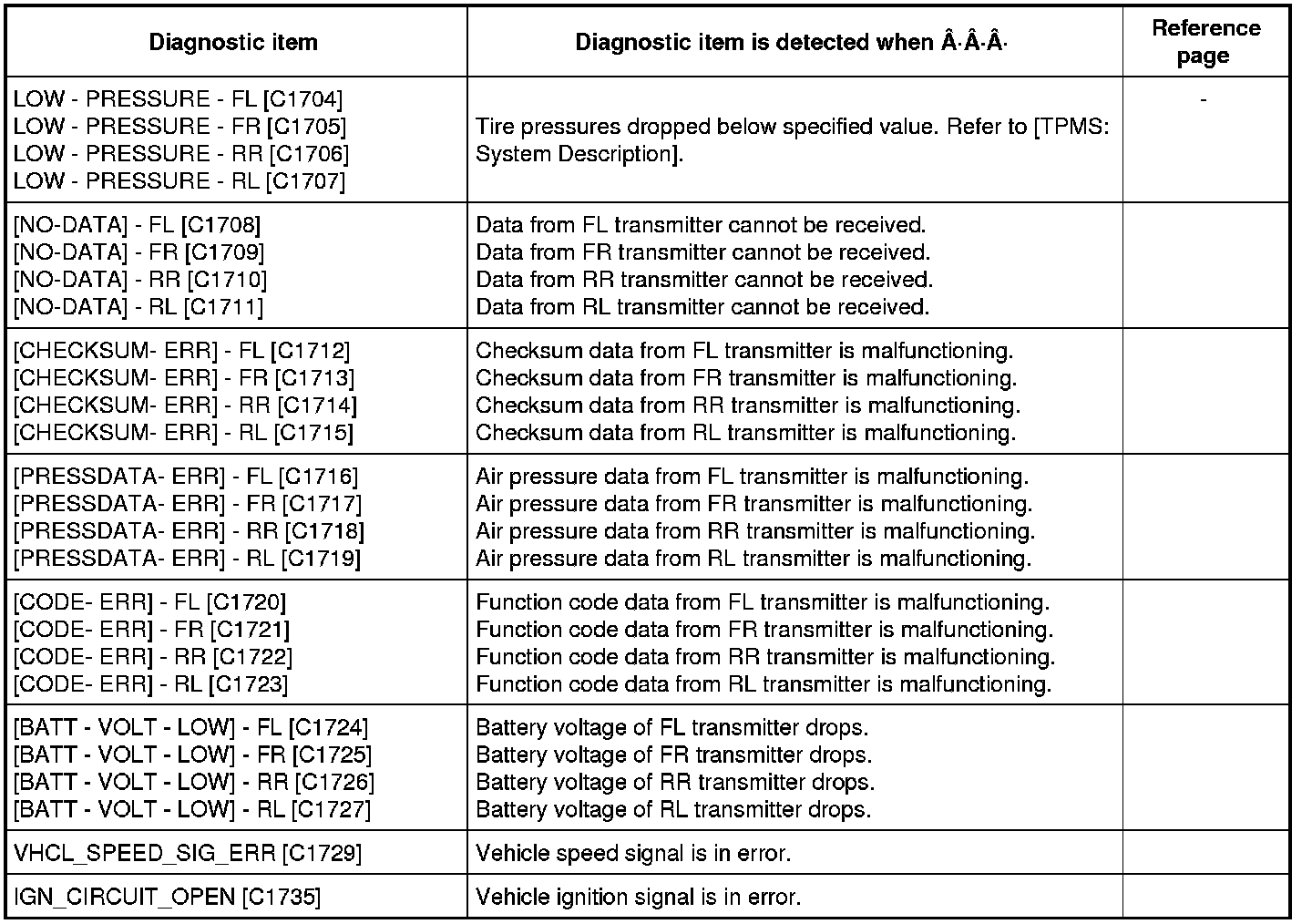

DTC Check Mode
NOTE:
Before performing the "DTC check", be sure to register the ID or else the actual malfunction location may be different from that displayed on SDT.
