Exterior Lighting System Symptoms Table

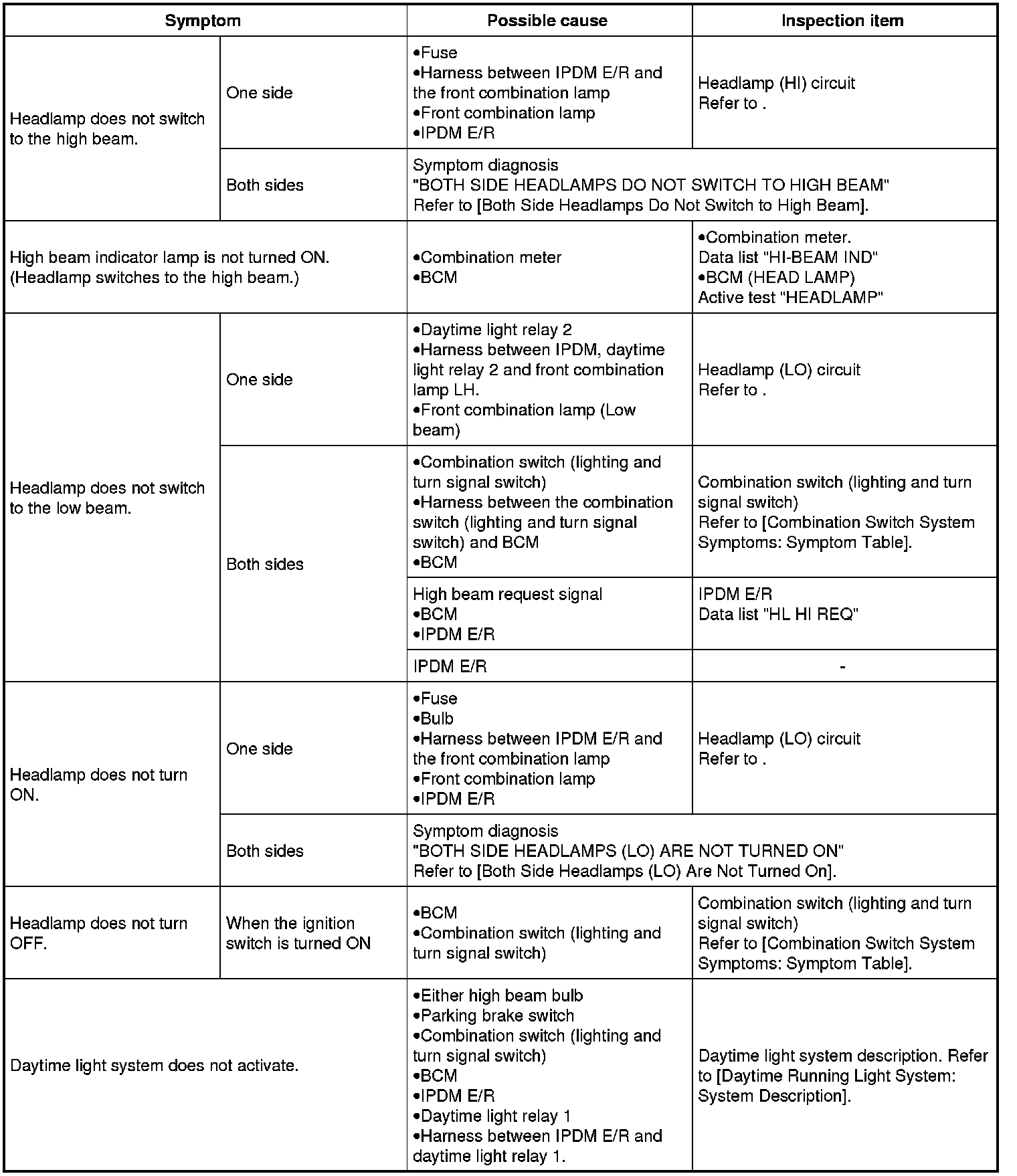

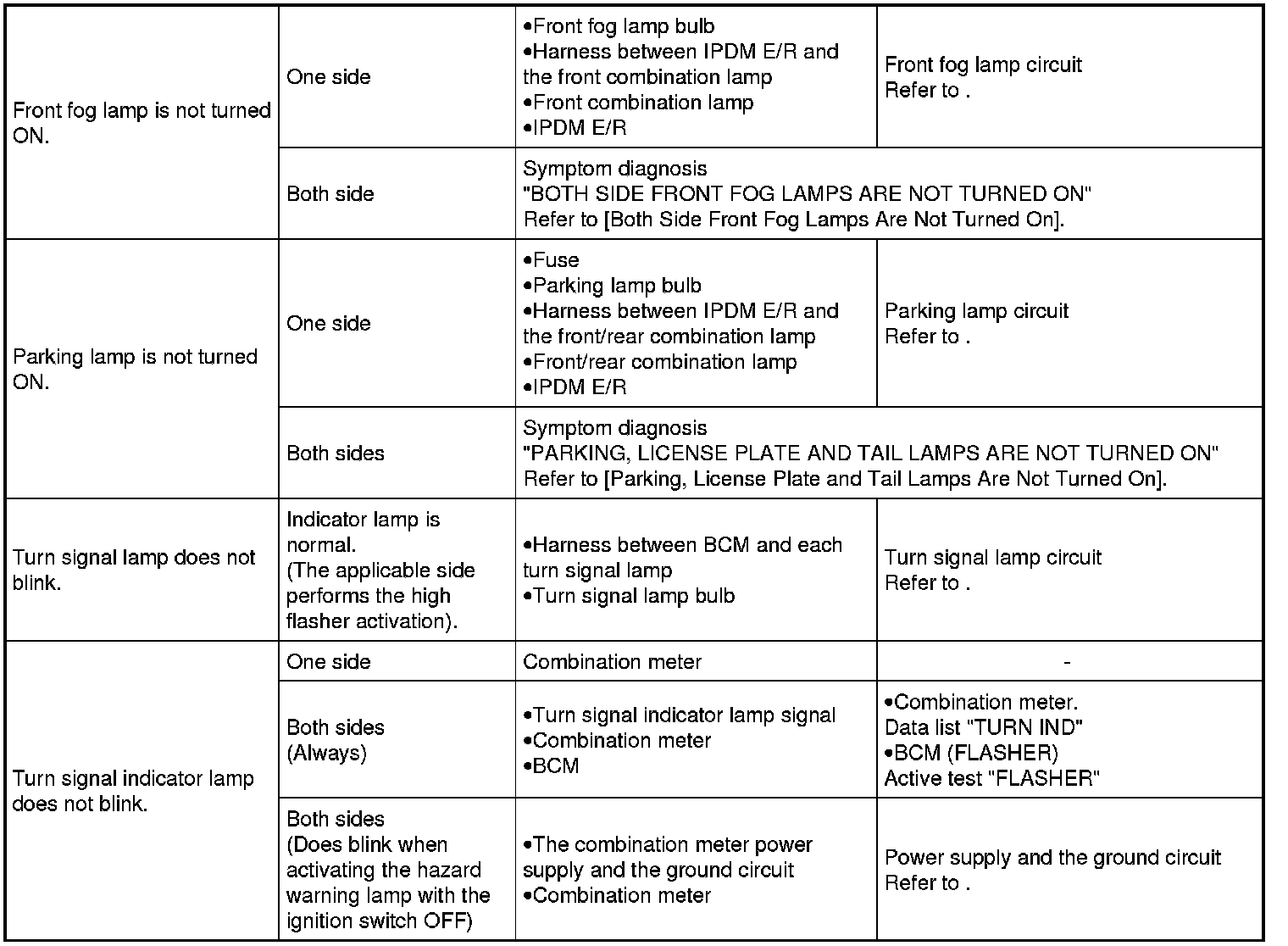

Exterior Lighting System Symptoms: Symptom Table
CAUTION:
Perform the "DTC check" with SDT before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.
