Tail Light Bulb: Service and Repair

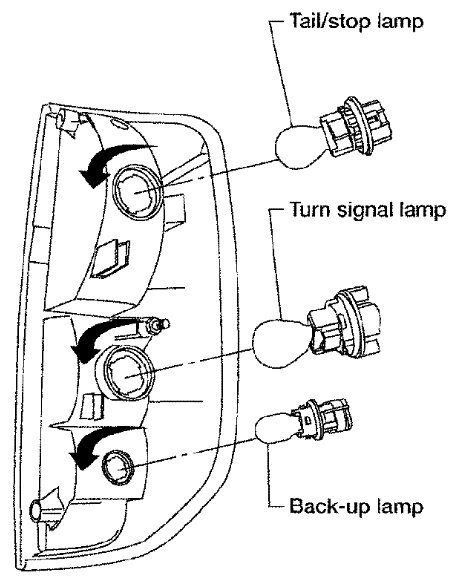

Rear Combination Lamp: Bulb Replacement

Removal

1) Remove rear combination lamp. Refer to [Rear Combination Lamp: Removal and Installation] Service and Repair.





2) Turn bulb counterclockwise to remove bulb socket.
3) Pull bulb straight out away from socket to release.

Installation

Installation is in the reverse order of removal.
