Overhaul

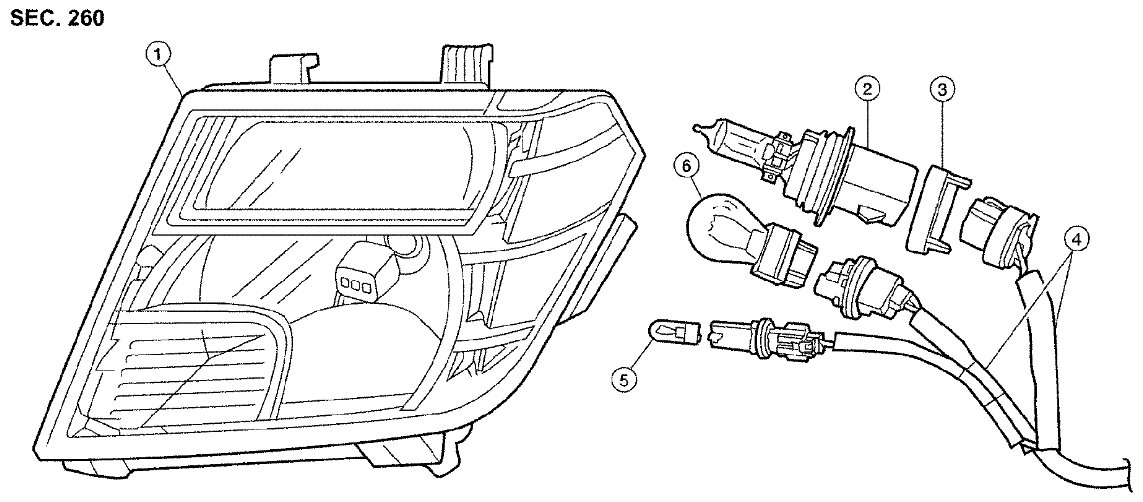

Headlamp: Disassembly and Assembly










Disassembly

CAUTION:

Leaving bulb removed from the headlamp housing for a long period of time can deteriorate the performance of the lens and reflector (dirt, clouding). Always prepare a new bulb and have it on hand when replacing a bulb.

1) Rotate headlamp bulb retaining ring counterclockwise and remove.

CAUTION:
Grasp only the plastic base when handling headlamp bulb. Never touch the glass envelope.

2) Turn front turn signal/parking lamp bulb socket counterclockwise to unlock and remove socket.
3) Turn front side marker lamp bulb socket counterclockwise to unlock and remove socket.

Assembly

Installation is in the reverse order of removal.

CAUTION:

After installing bulb, be sure to install the bulb socket and plastic cap securely to ensure watertightness.
