Center Mounted Brake Lamp: Service and Repair

Stop Lamp: Removal and Installation

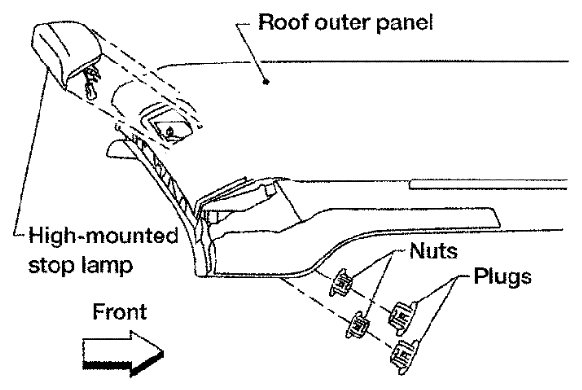

High-Mounted Stop Lamp

Removal

1) Remove plugs on headlining.





2) Remove the nuts and remove high-mounted stop lamp from outside of roof outer panel.
3) Rotate the bulb sockets counterclockwise and remove the high-mounted stop lamp assembly.

Installation

Installation is in the reverse order of removal.
