Center Mounted Brake Lamp Bulb: Service and Repair

Stop Lamp: Bulb Replacement

High-Mounted Stop Lamp

Removal

1) Remove high-mounted stop lamp. Refer to [Stop Lamp: Removal and Installation] Service and Repair.

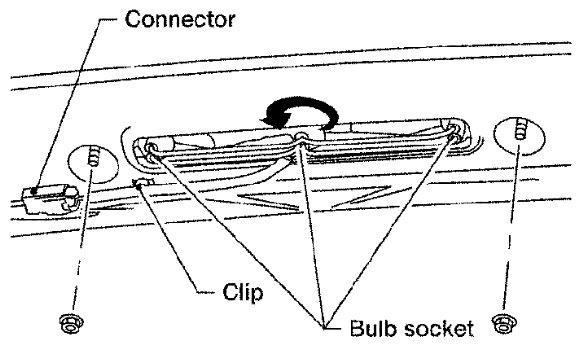

2) Rotate the center bulb socket counterclockwise to release from high-mounted stop lamp assembly.





3) Pull bulb straight out from bulb socket.

Installation

Installation is in the reverse order of removal.
