SDT Function (Meter/M&A)

SDT Function (METER/M&A)

SDT can display each diagnostic item using the diagnostic test modes shown following.





DTC Check

Display Item List

Refer to [DTC Index: Combination Meter] DTC Index Combination Meter.

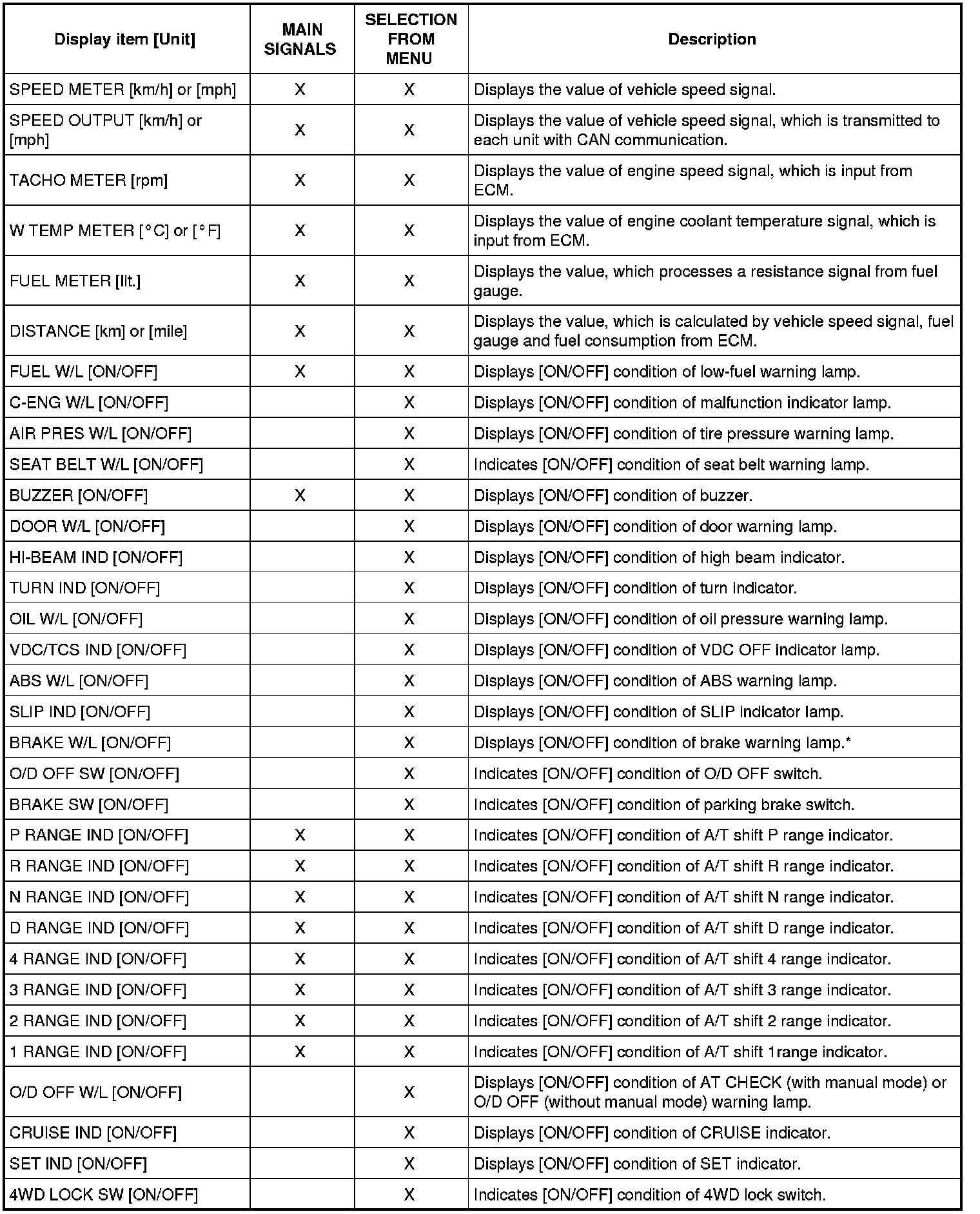

Data List

Display Item List

X: Applicable










NOTE:

Some items are not available due to vehicle specification.

*: The monitor will indicate "OFF" even though the brake warning lamp is on if either of the following conditions exist.

- The parking brake is engaged
- The brake fluid level is low
