Fail Safe Combination Meter




Fail Safe: Combination Meter

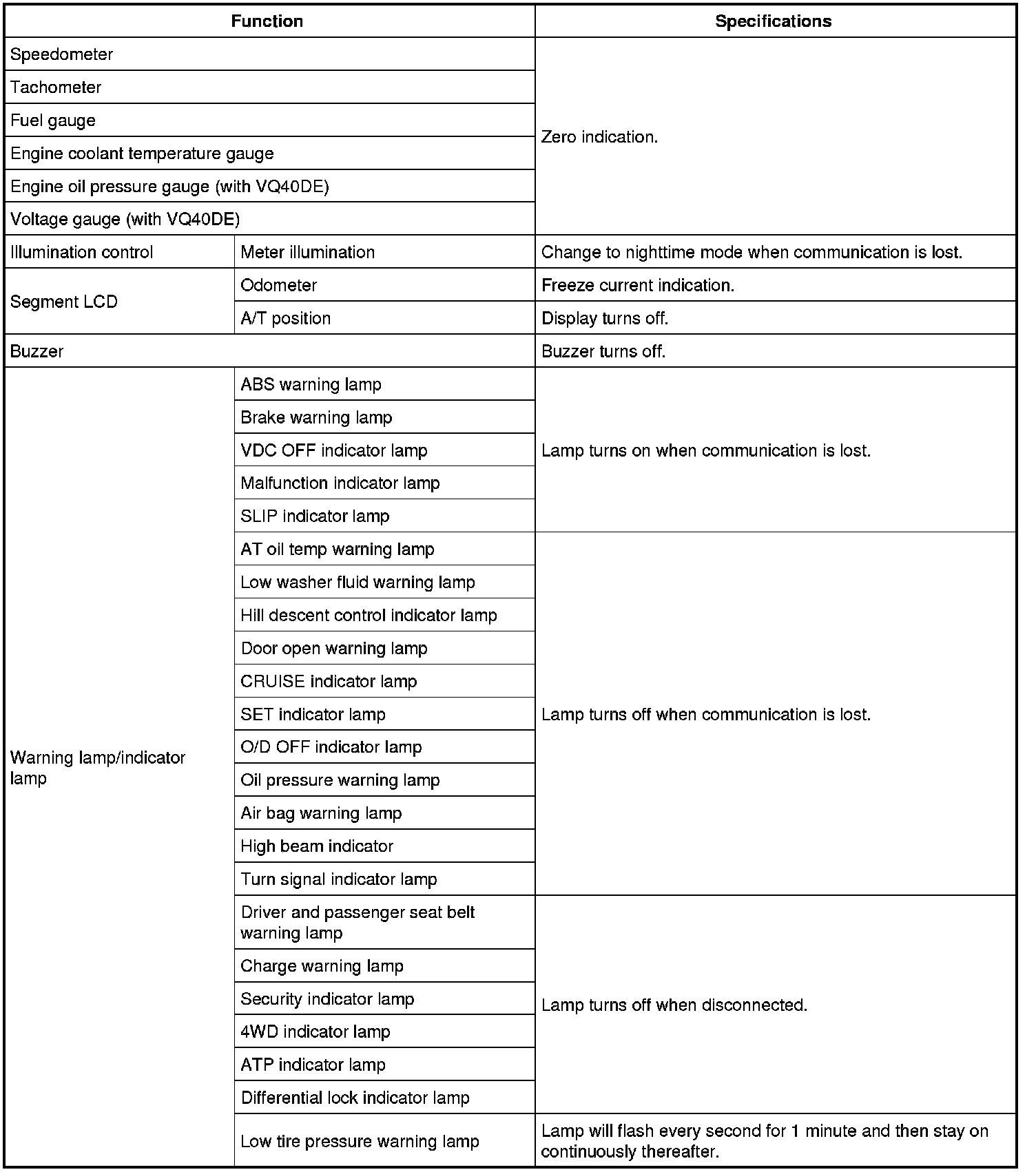

The combination meter performs a fail-safe operation for the functions listed below when communication is lost.
