Instrument Cluster / Carrier: Service and Repair

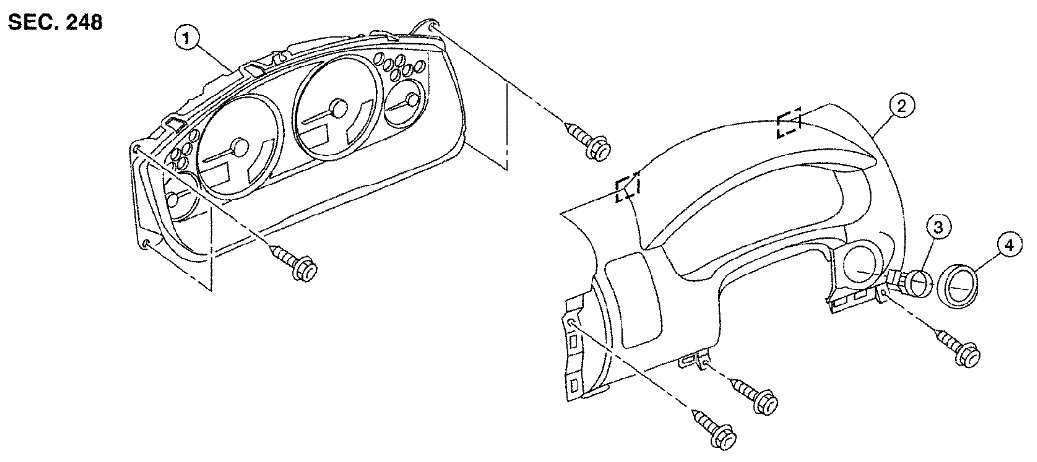

Combination Meter: Removal and Installation










1) Remove the cluster lid A. Refer to [Cluster Lid A: Removal and Installation] Cluster Lid A.
2) Remove the combination meter, using a power tool.
3) Disconnect the combination meter electrical connectors.

Installation

Installation is in the reverse order of removal.
