Compass [without Homelink Universal Transceiver]
Compass

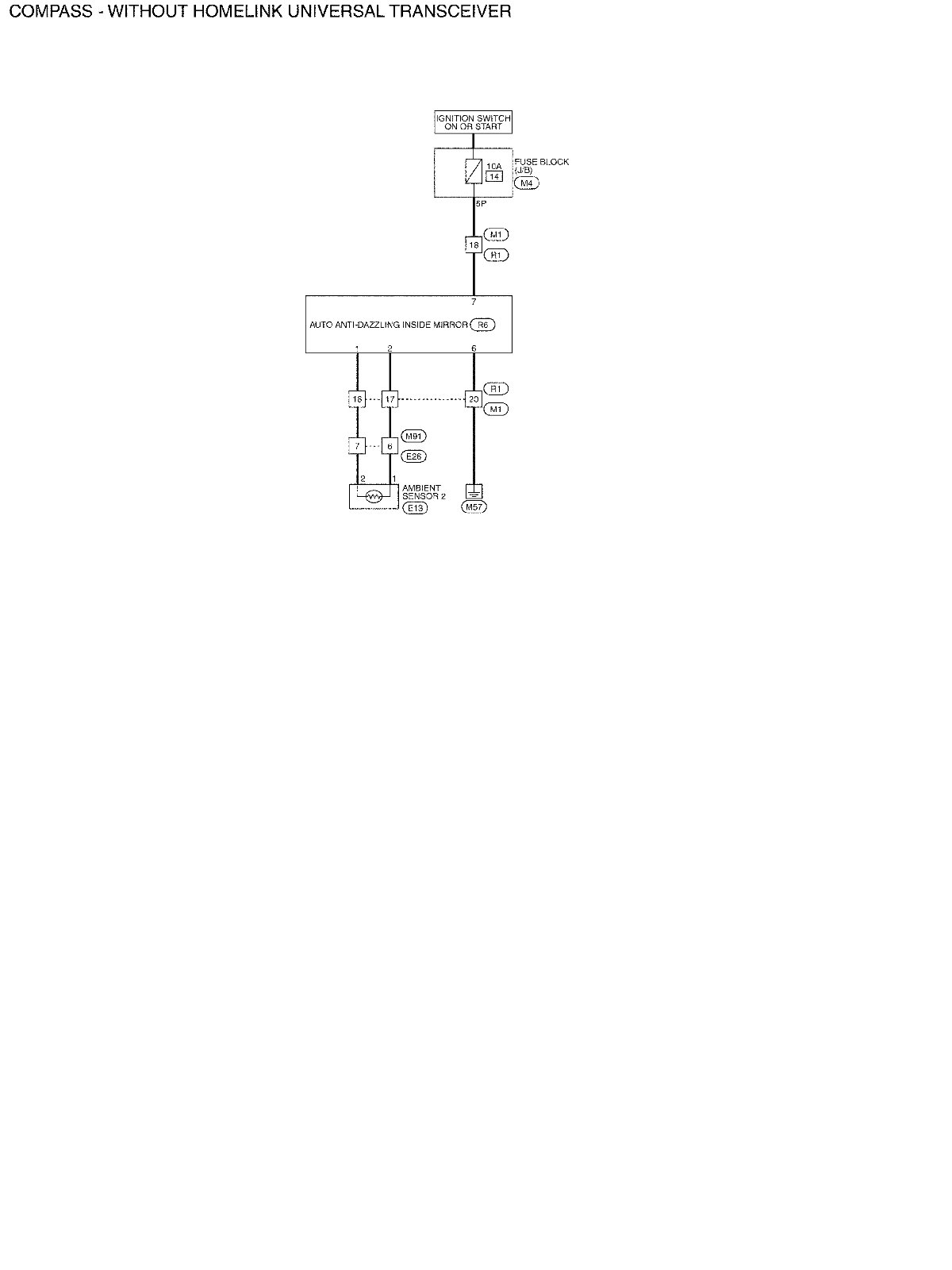

: Wiring Diagram [without Homelink Universal Transceiver]
