Cabin Air Filter / Purifier: Description and Operation

In-Cabin Microfilter: Description

Function

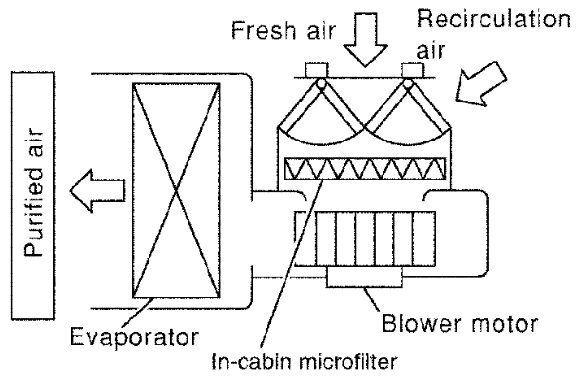

The air inside the passenger compartment is filtered by the in-cabin microfilters when the heater or A/C controls are set on either the recirculation or fresh mode. The two in-cabin microfilters are located in the heater and cooling unit assembly.





Replacement Timing

Replacement of the two in-cabin microfilters is recommended on a regular interval depending on the driving conditions. Refer to [Periodic Maintenance [for USA and Canada] ] (For United States and Canada) or [Periodic Maintenance [for Mexico] ] (For Mexico). It may also be necessary to replace the two in-cabin microfilters as part of a component replacement if the in-cabin microfilters are damaged.
