LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Suzuki
>>
2012
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Base Audio System [Base Audio]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Base Audio System [Base Audio]

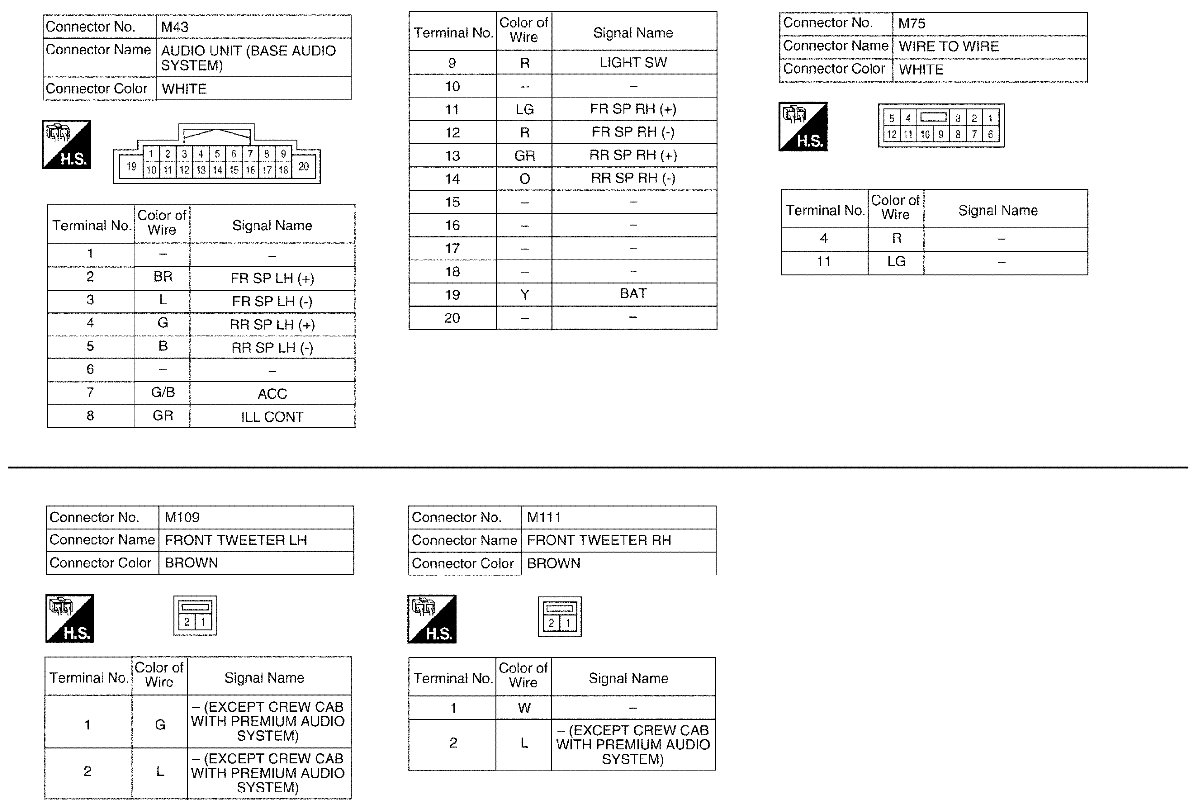

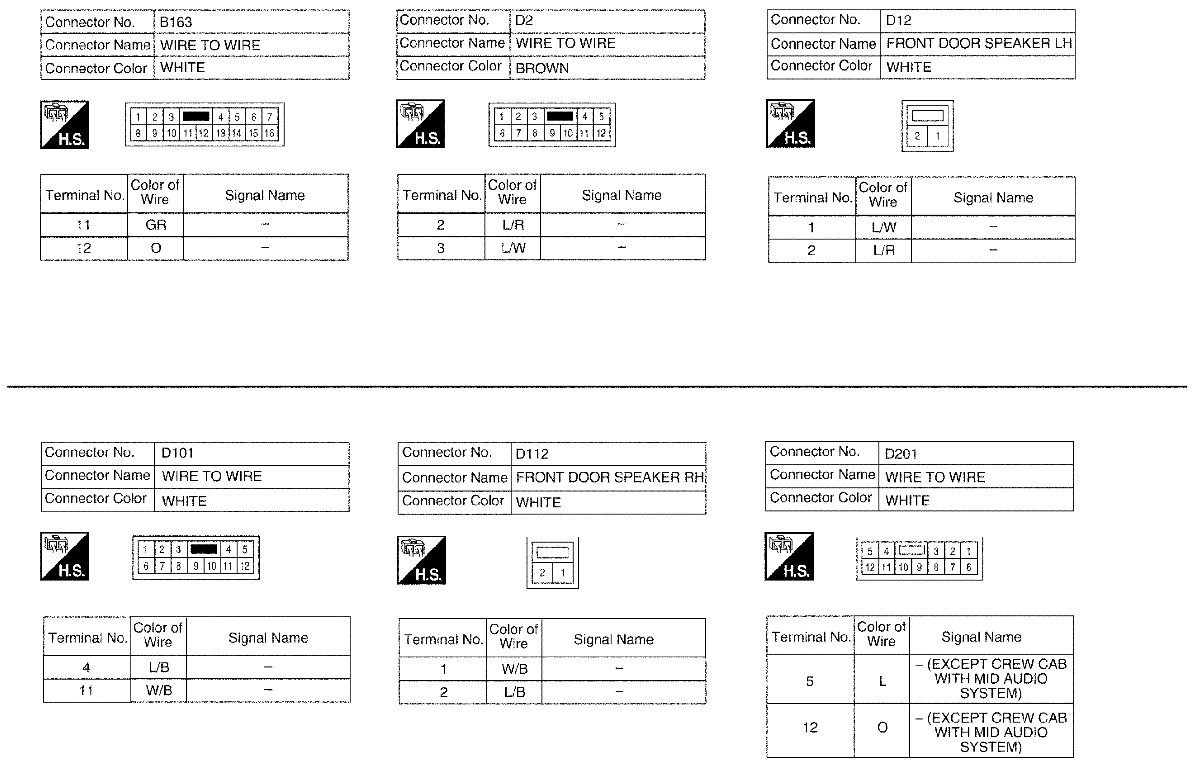

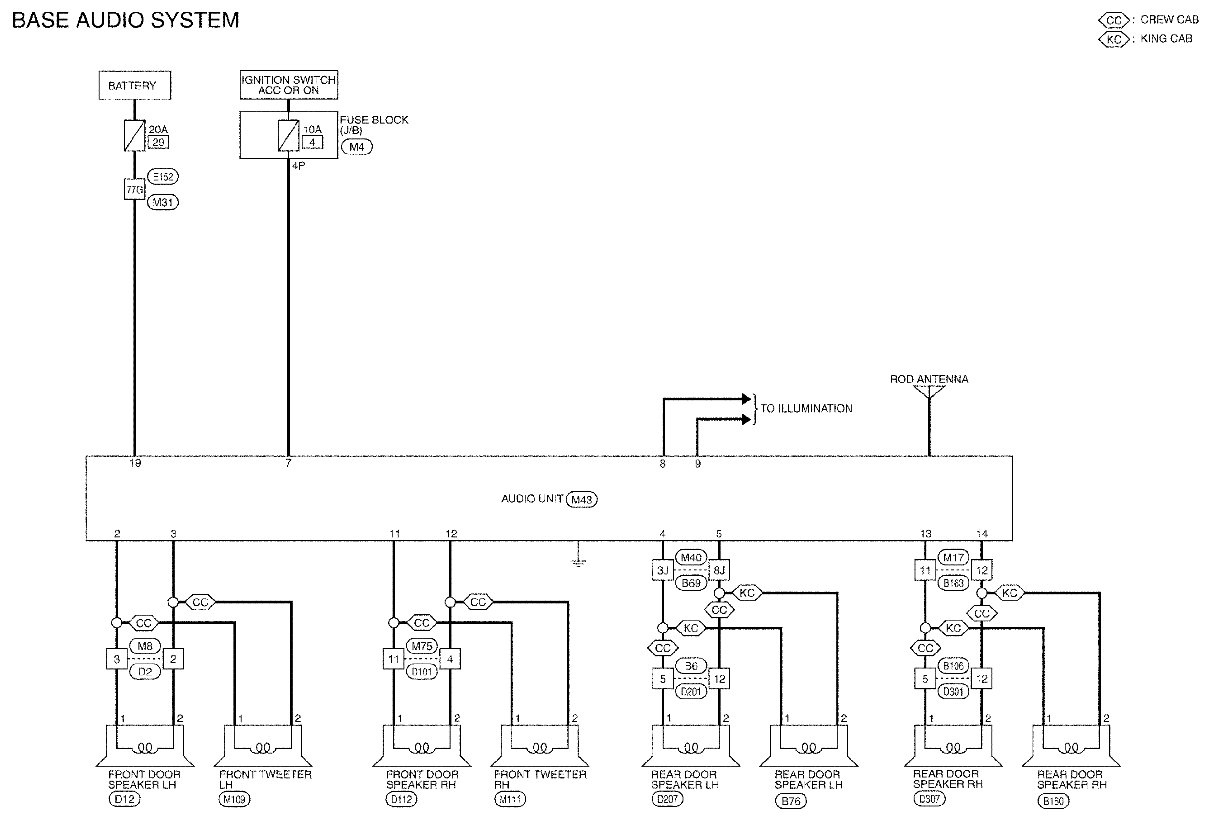

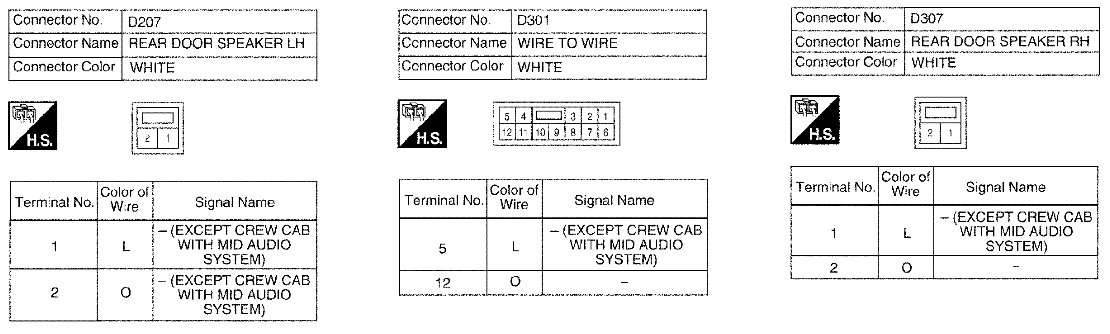

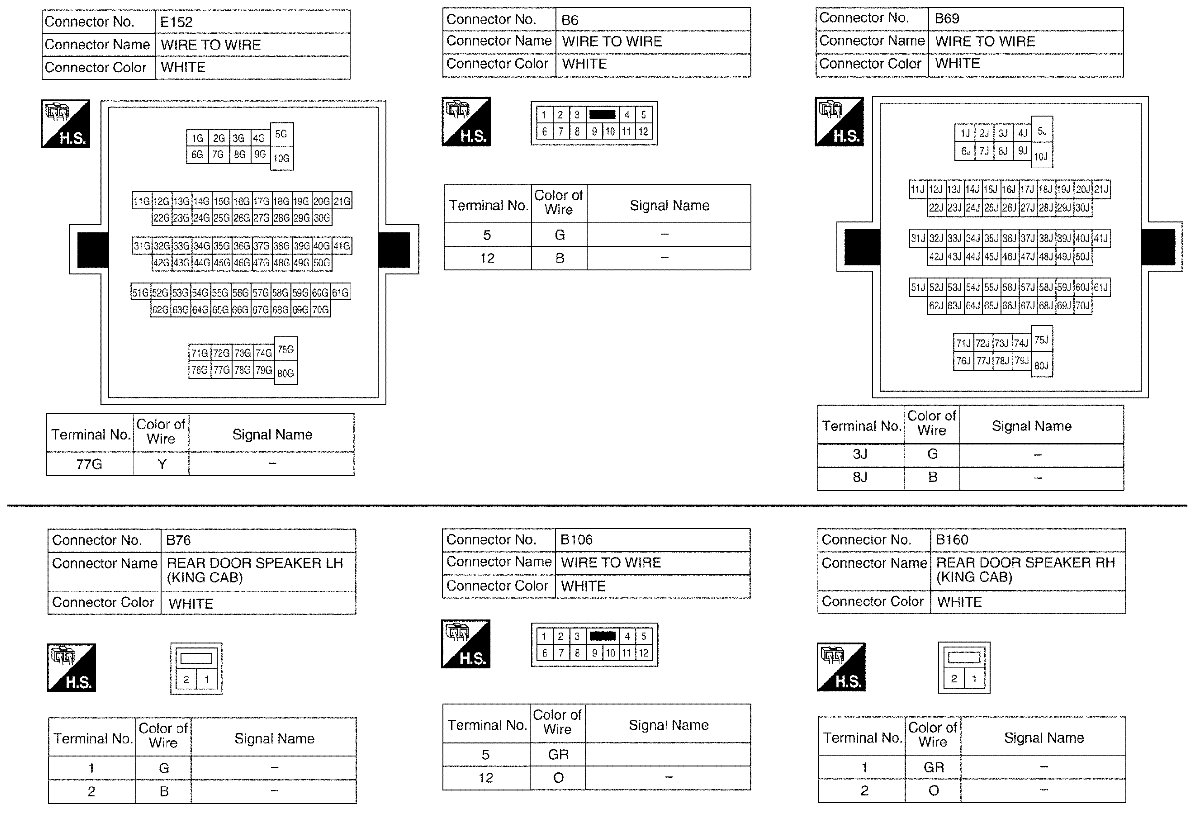

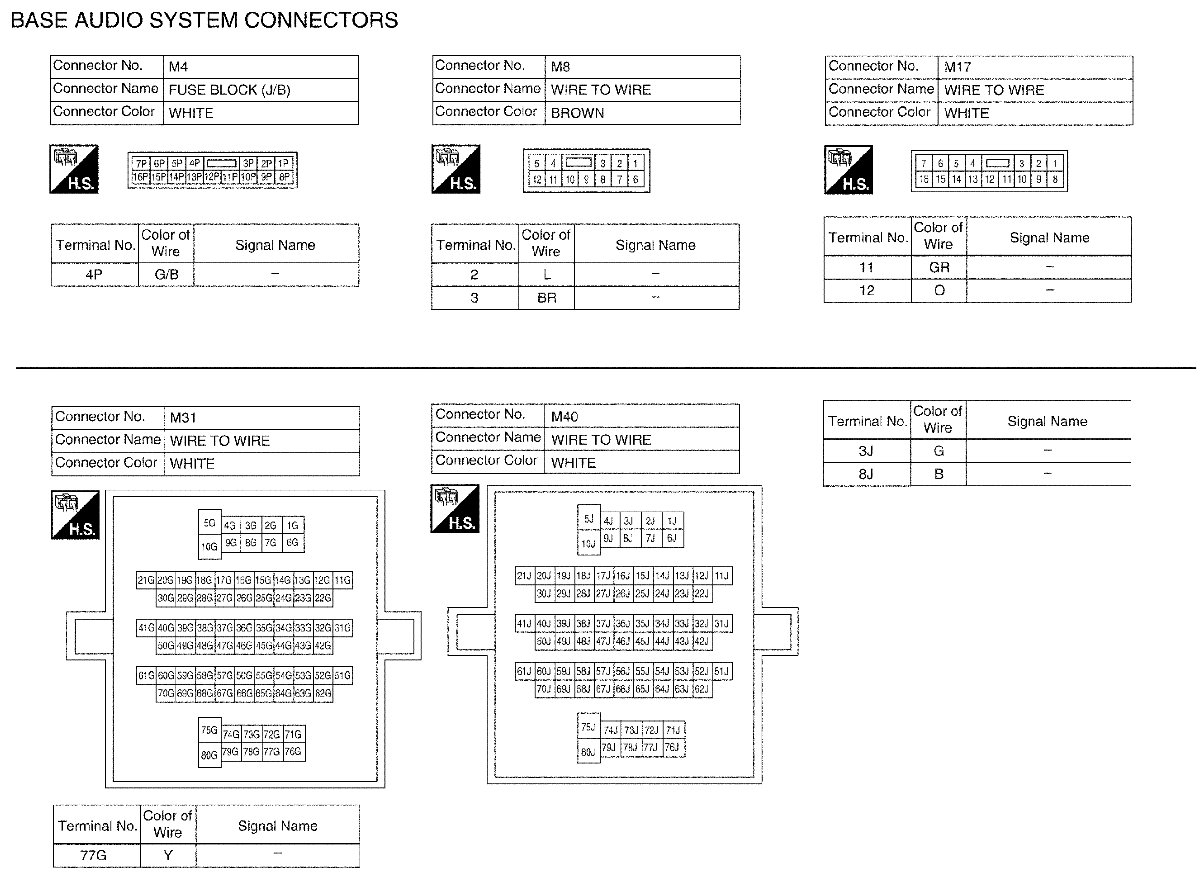

Base Audio System: Wiring Diagram [Base Audio]
