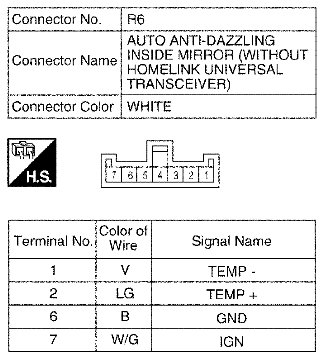

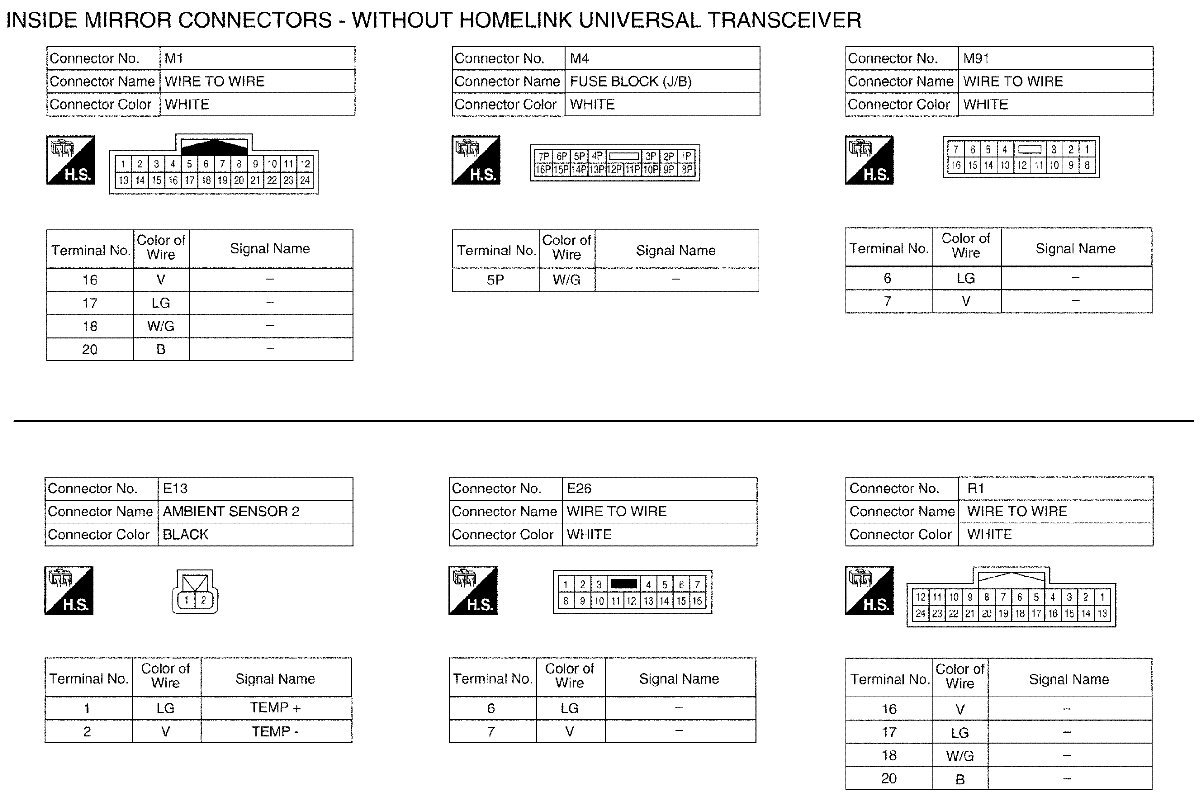

Inside Mirror [without Homelink Universal Transceiver]

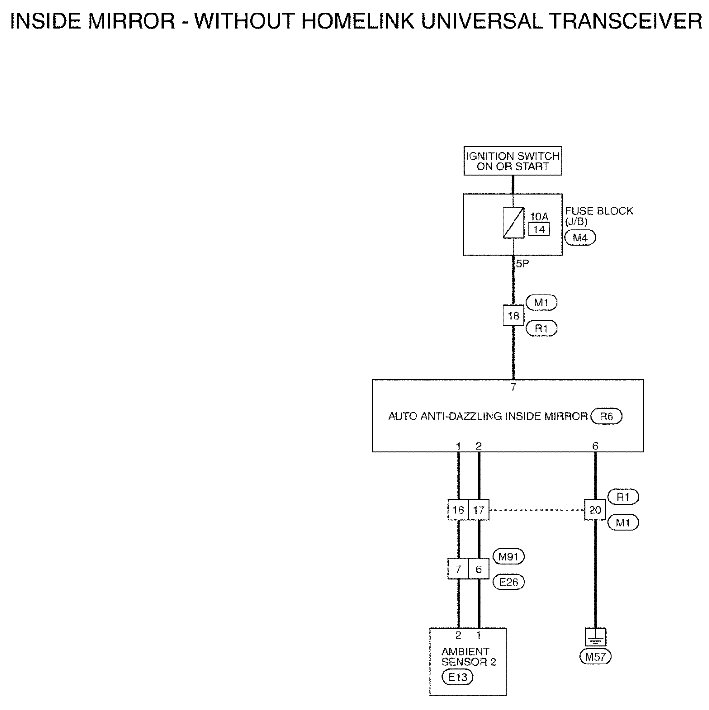

Inside Mirror: Wiring Diagram [without Homelink Universal Transceiver]
