Heated Glass Element
>>
Rear Window Defogger
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Window Defogger

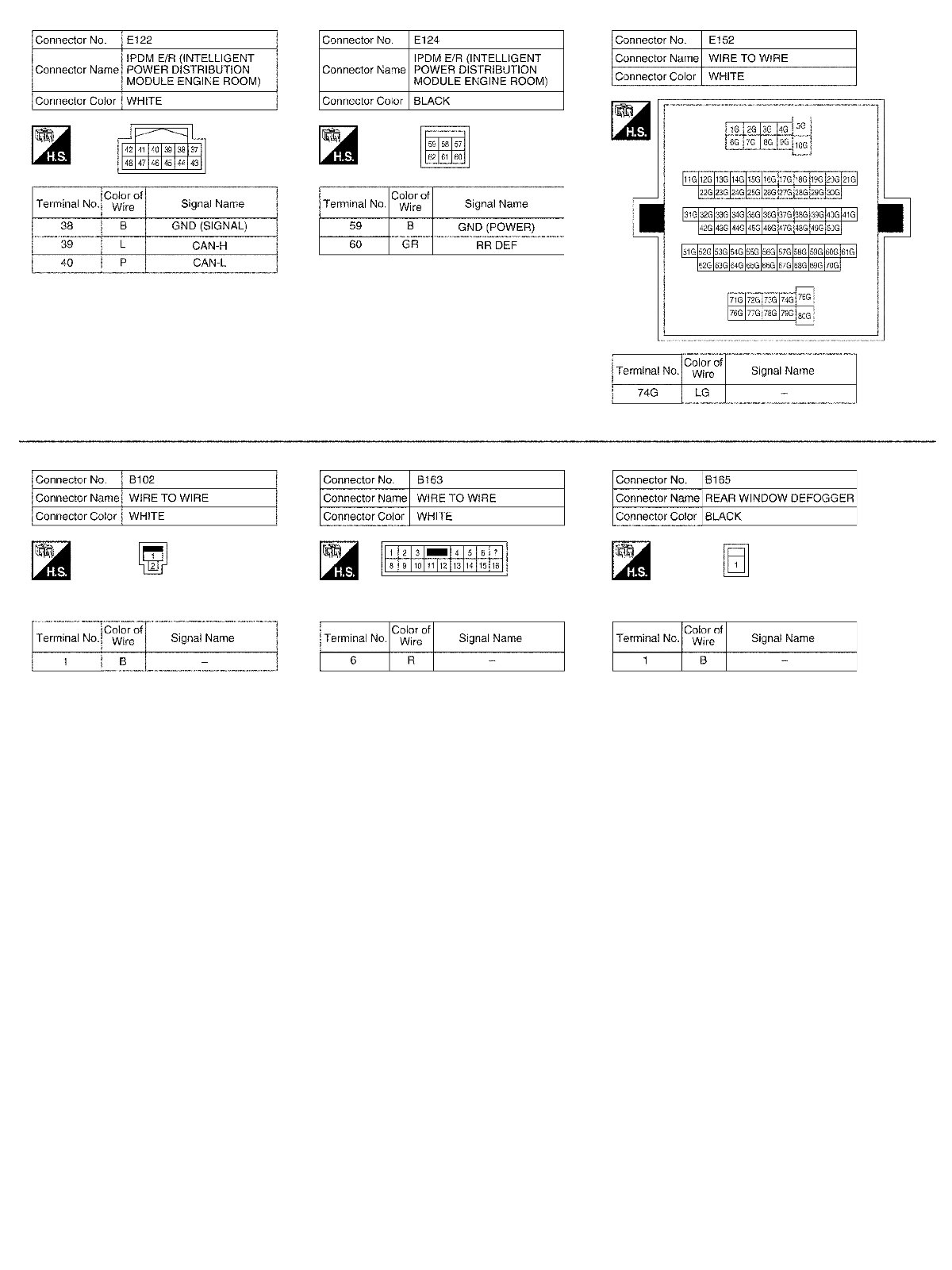

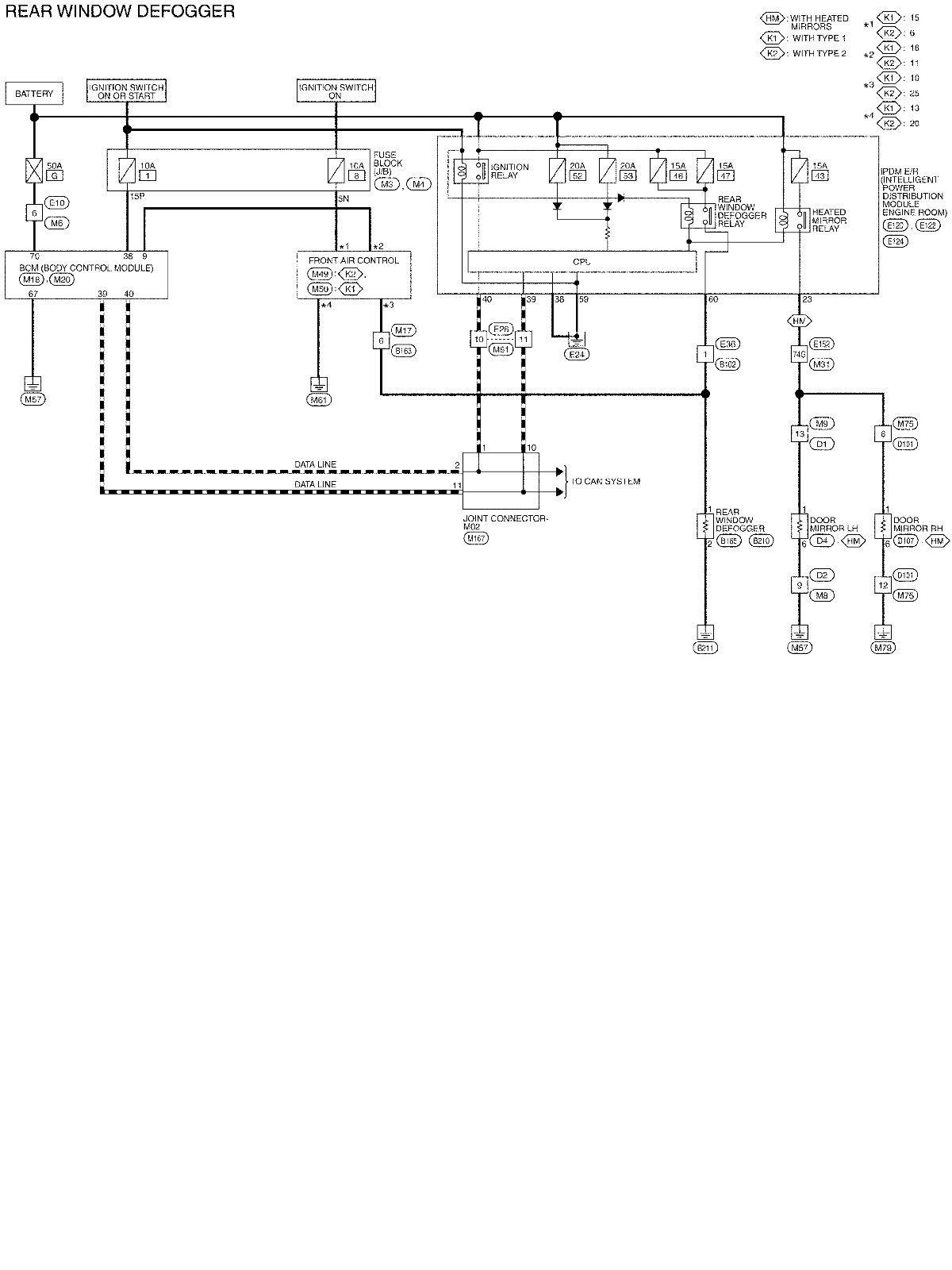

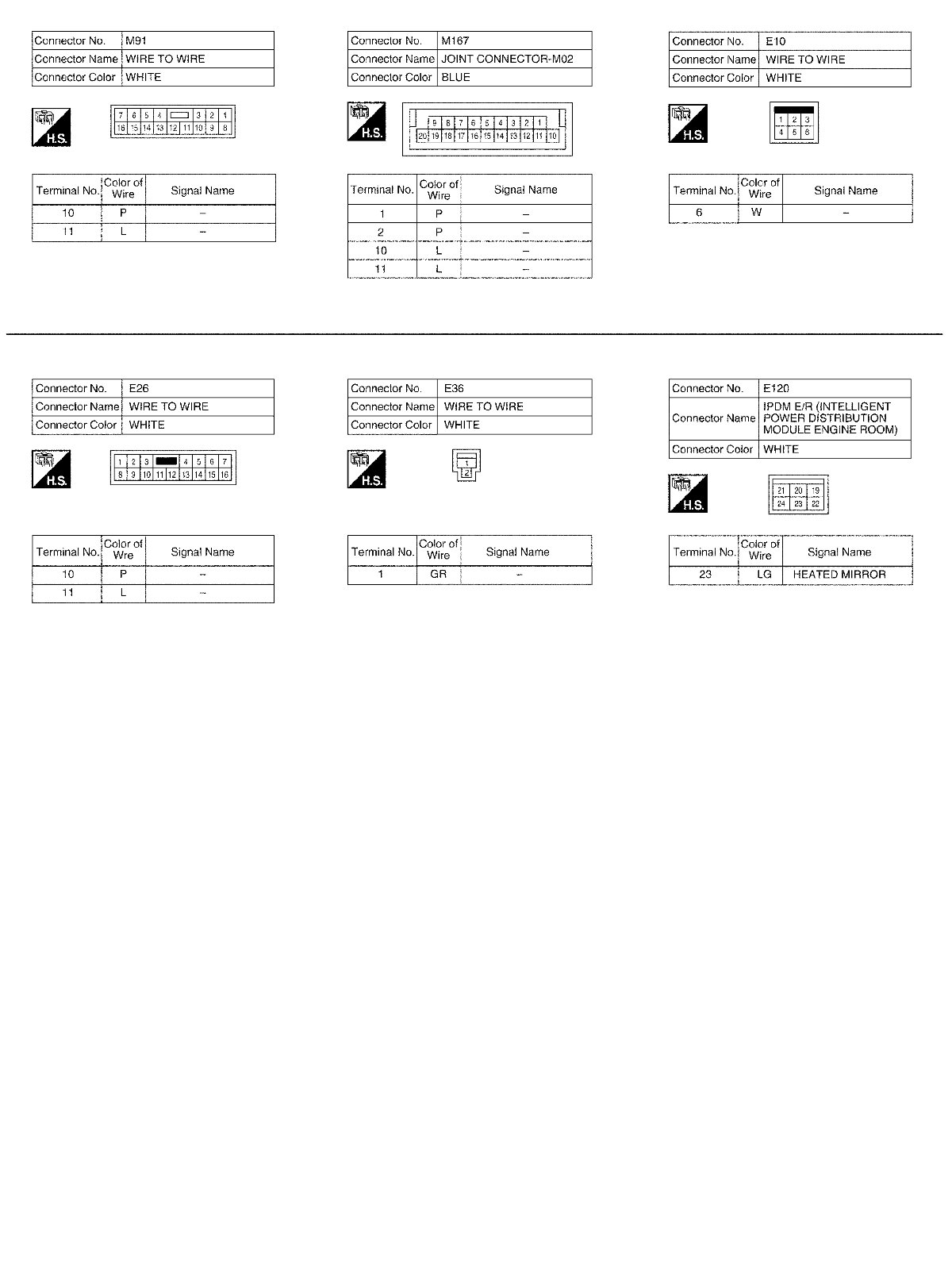

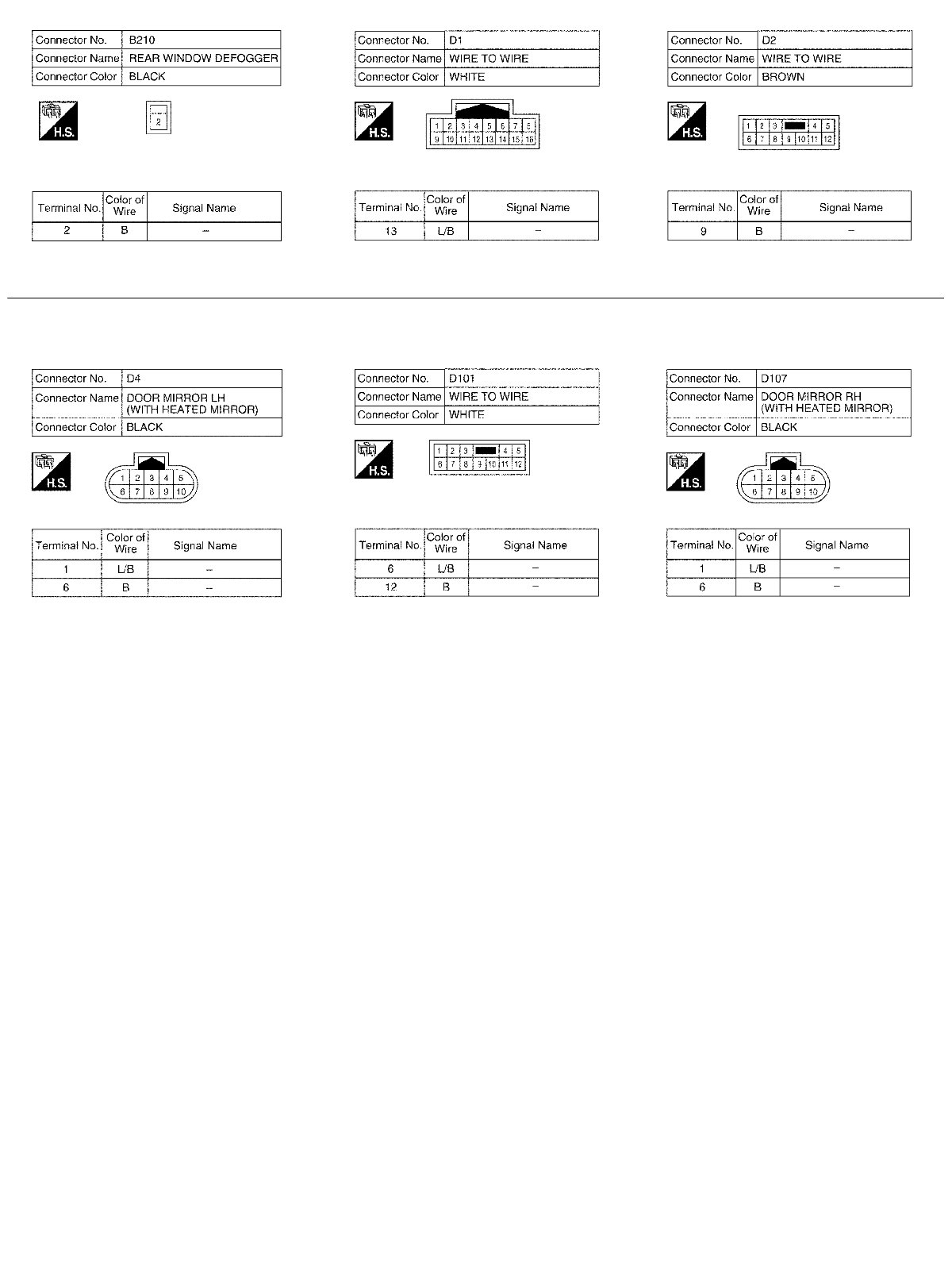

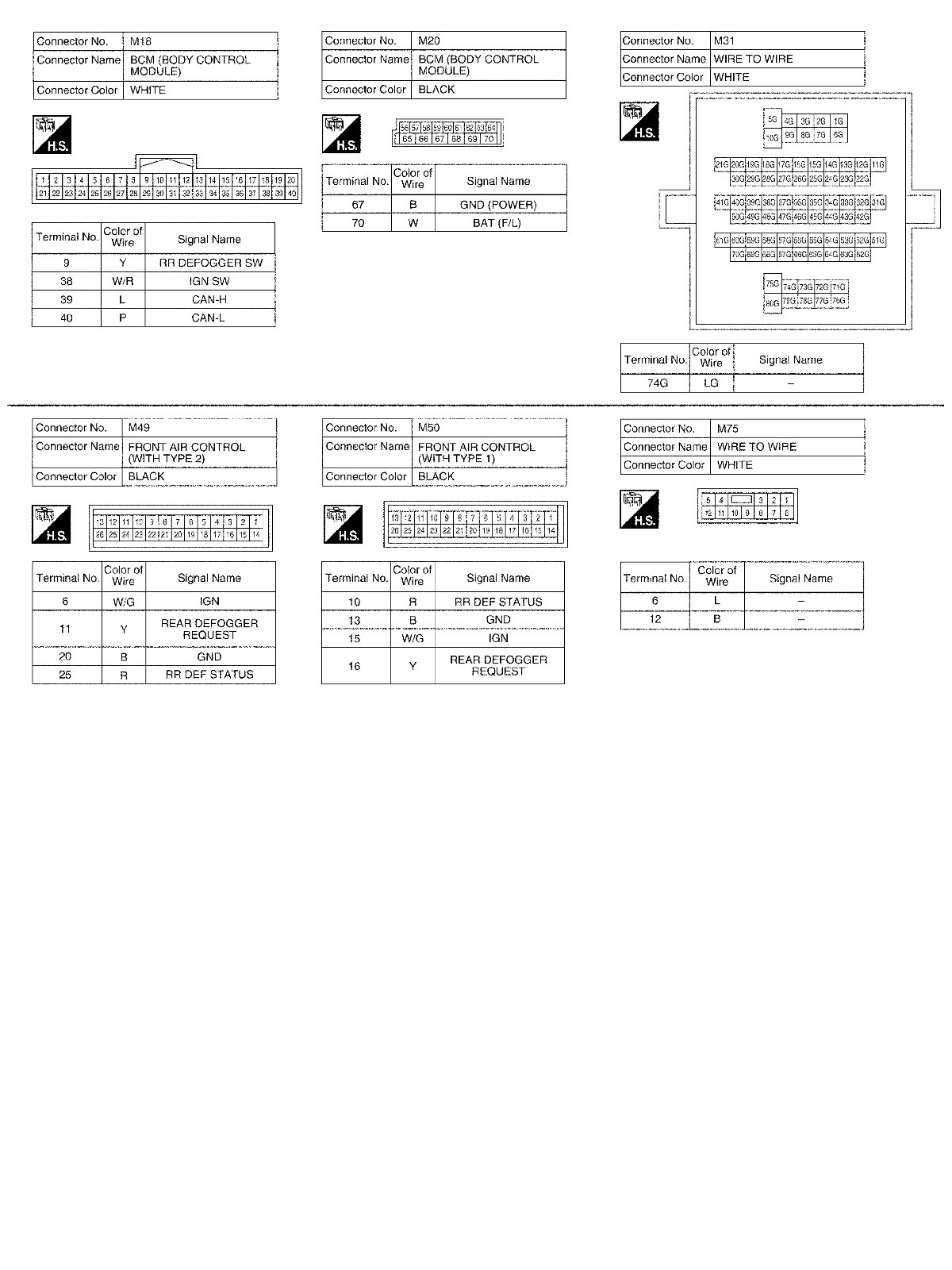

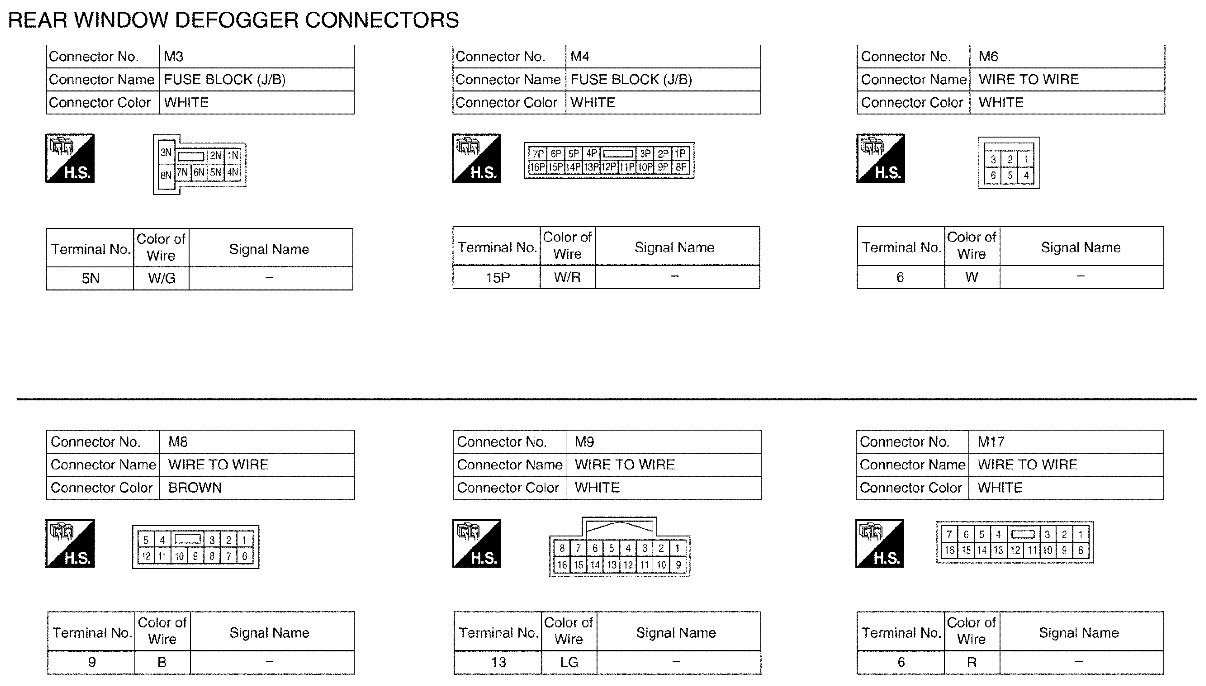

Rear Window Defogger: Wiring Diagram
