VDC without Hill Descent Control/Hill Start Assist

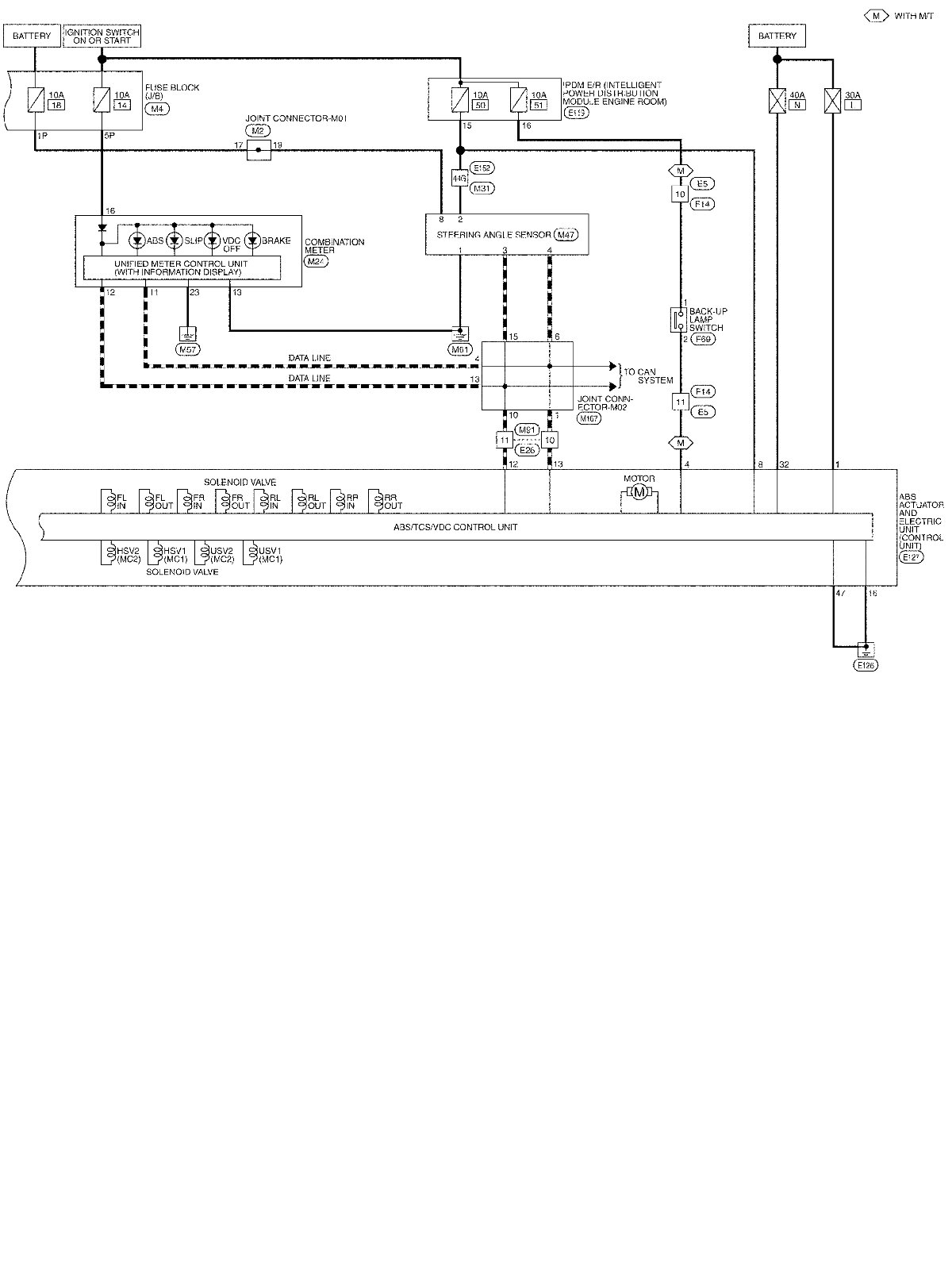

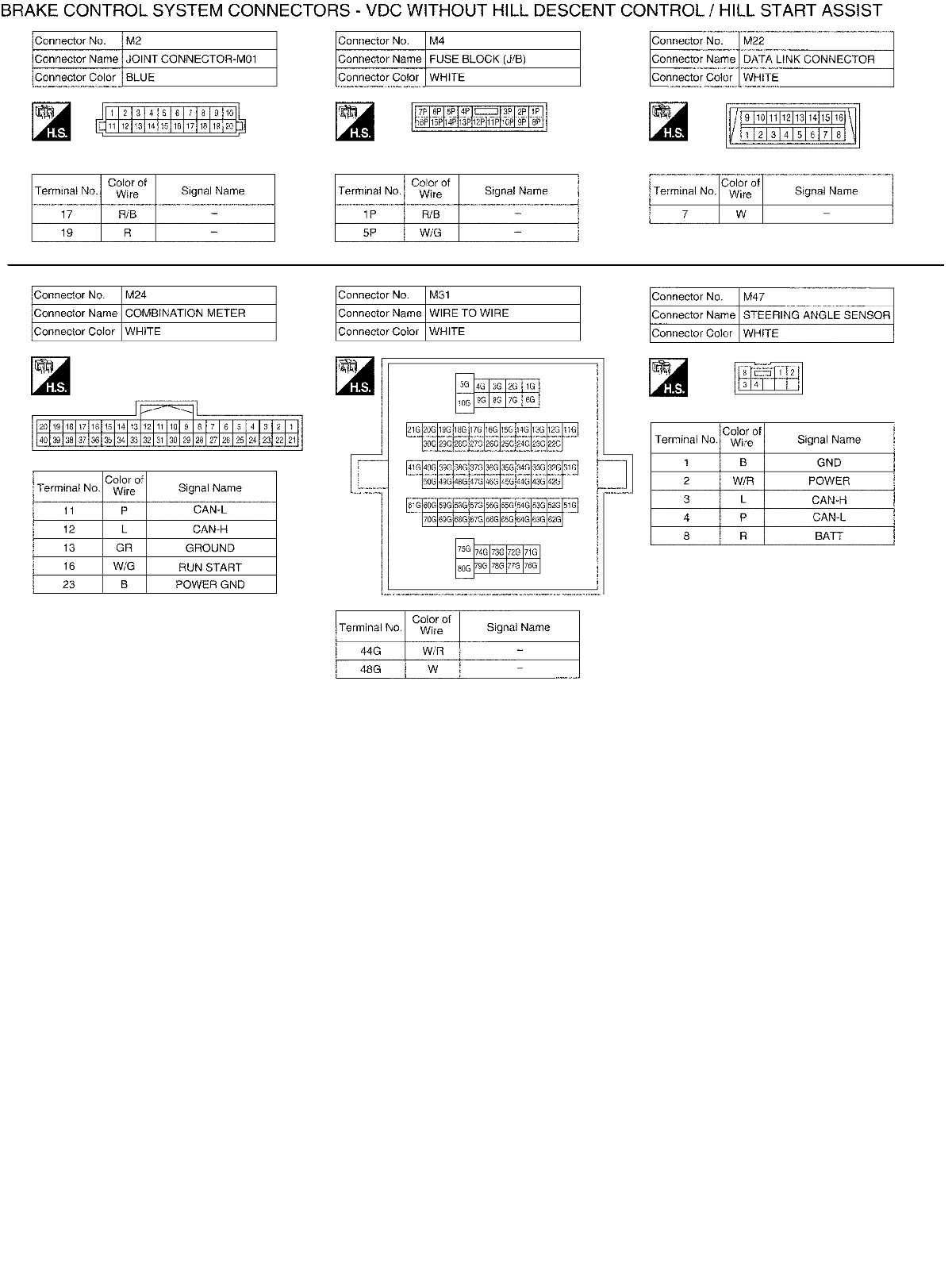

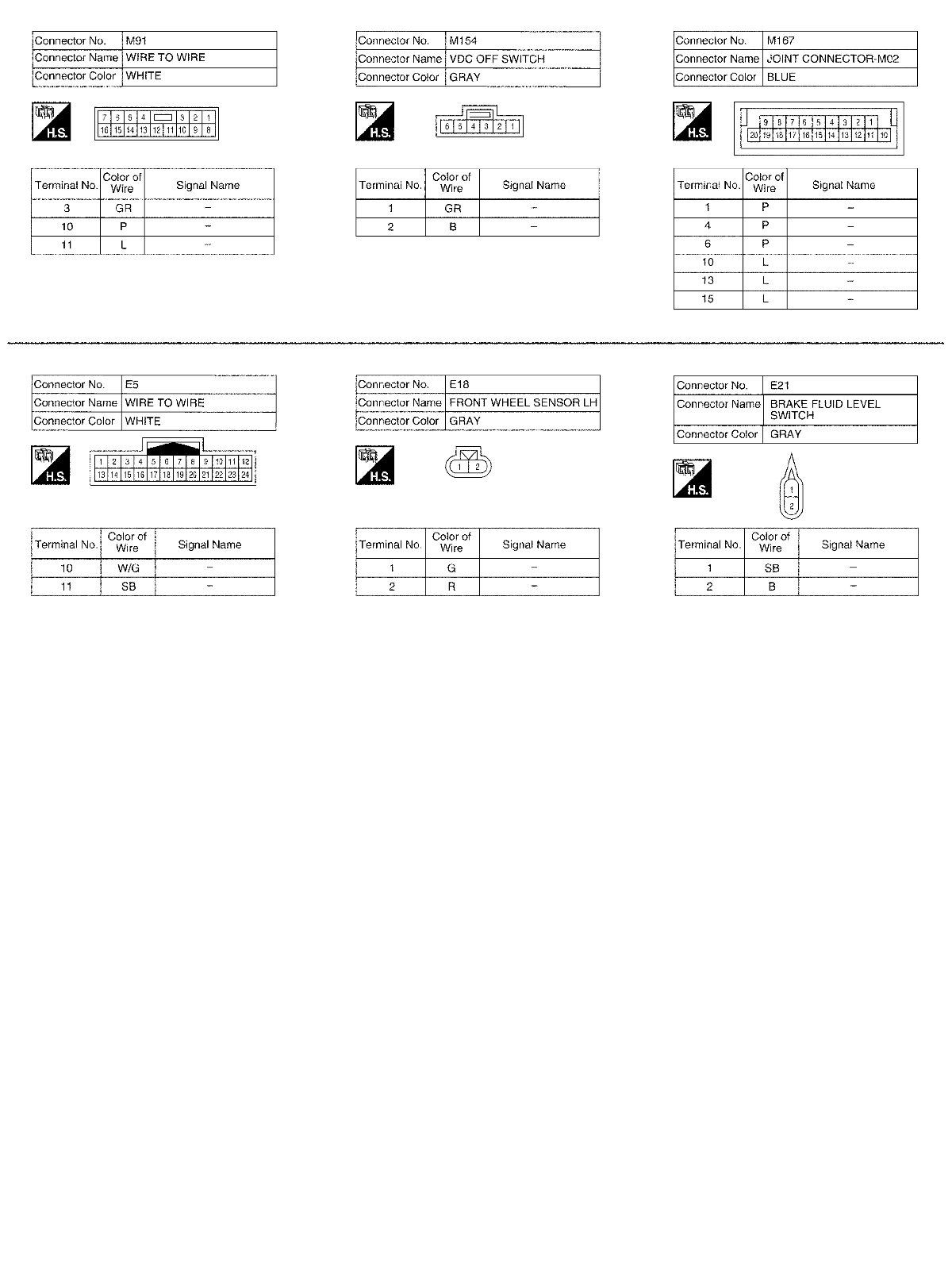

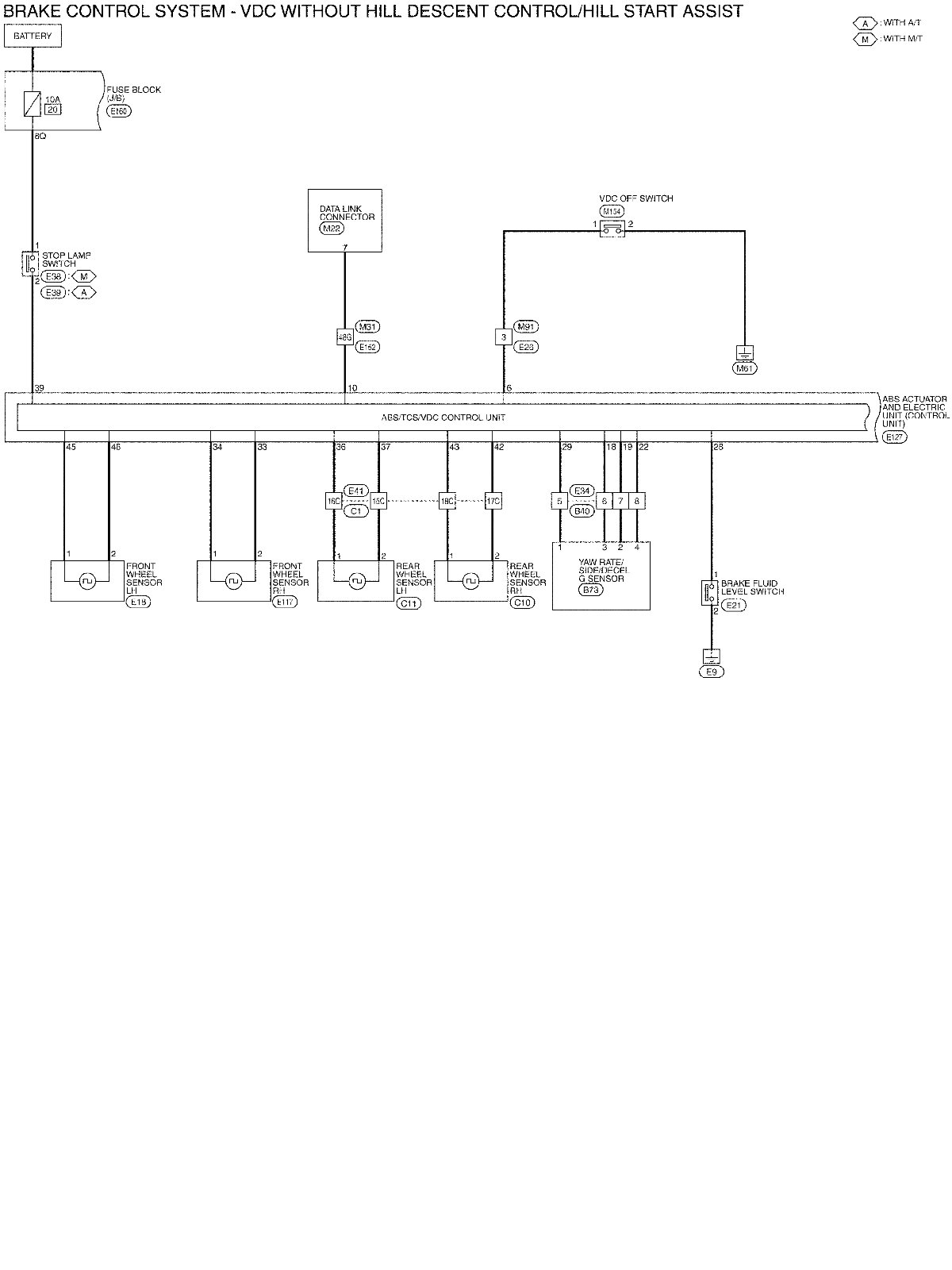

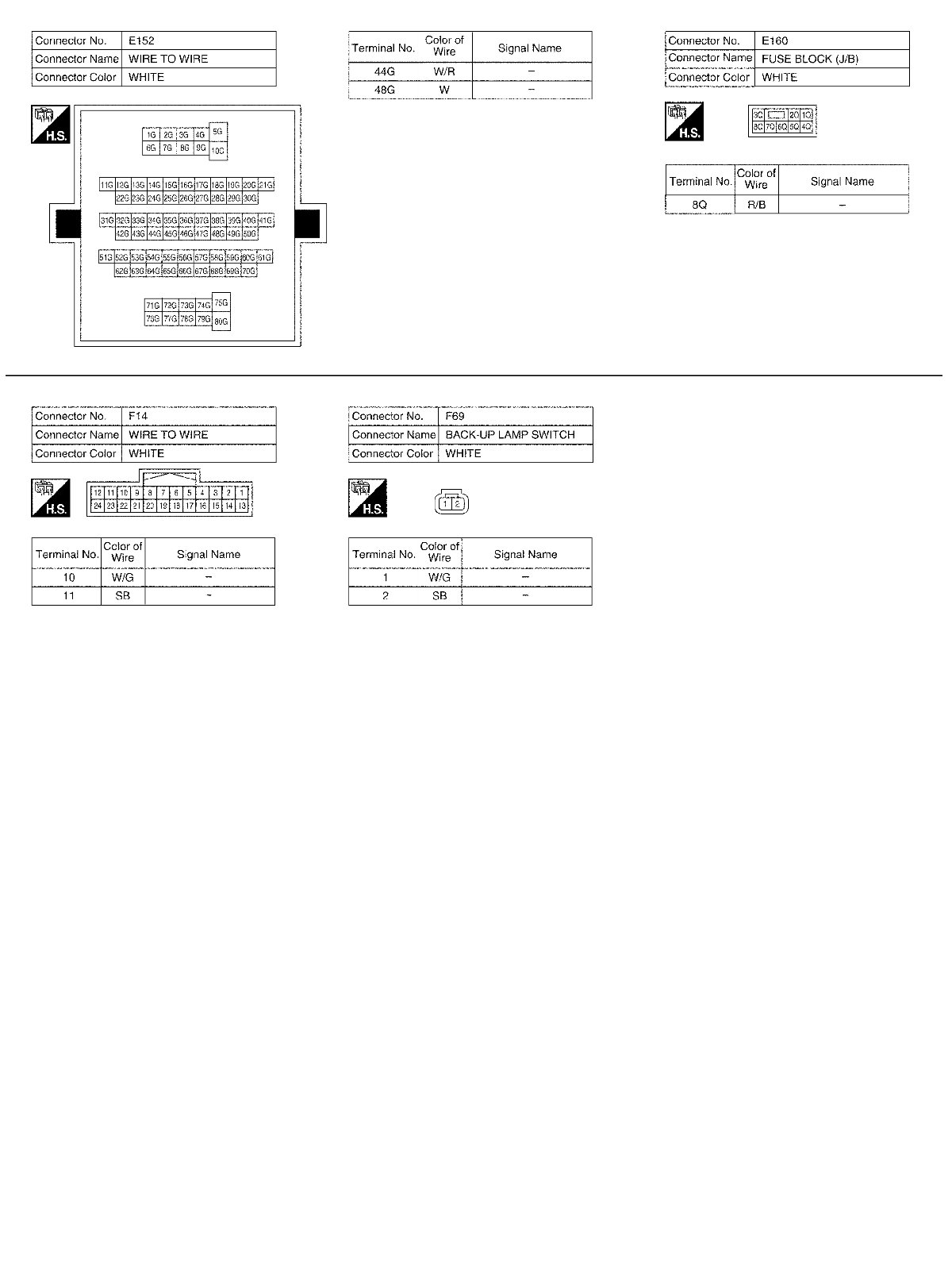

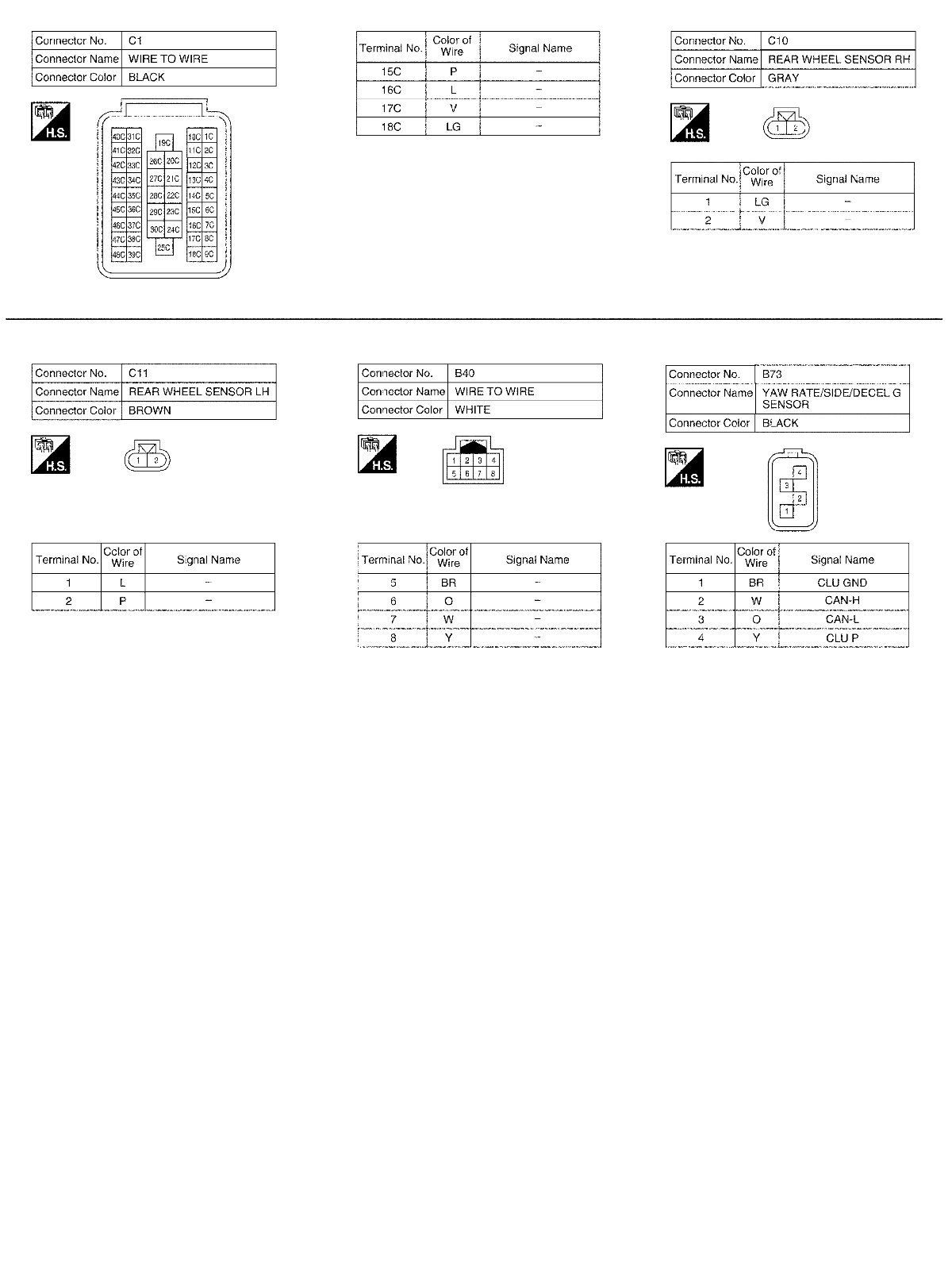

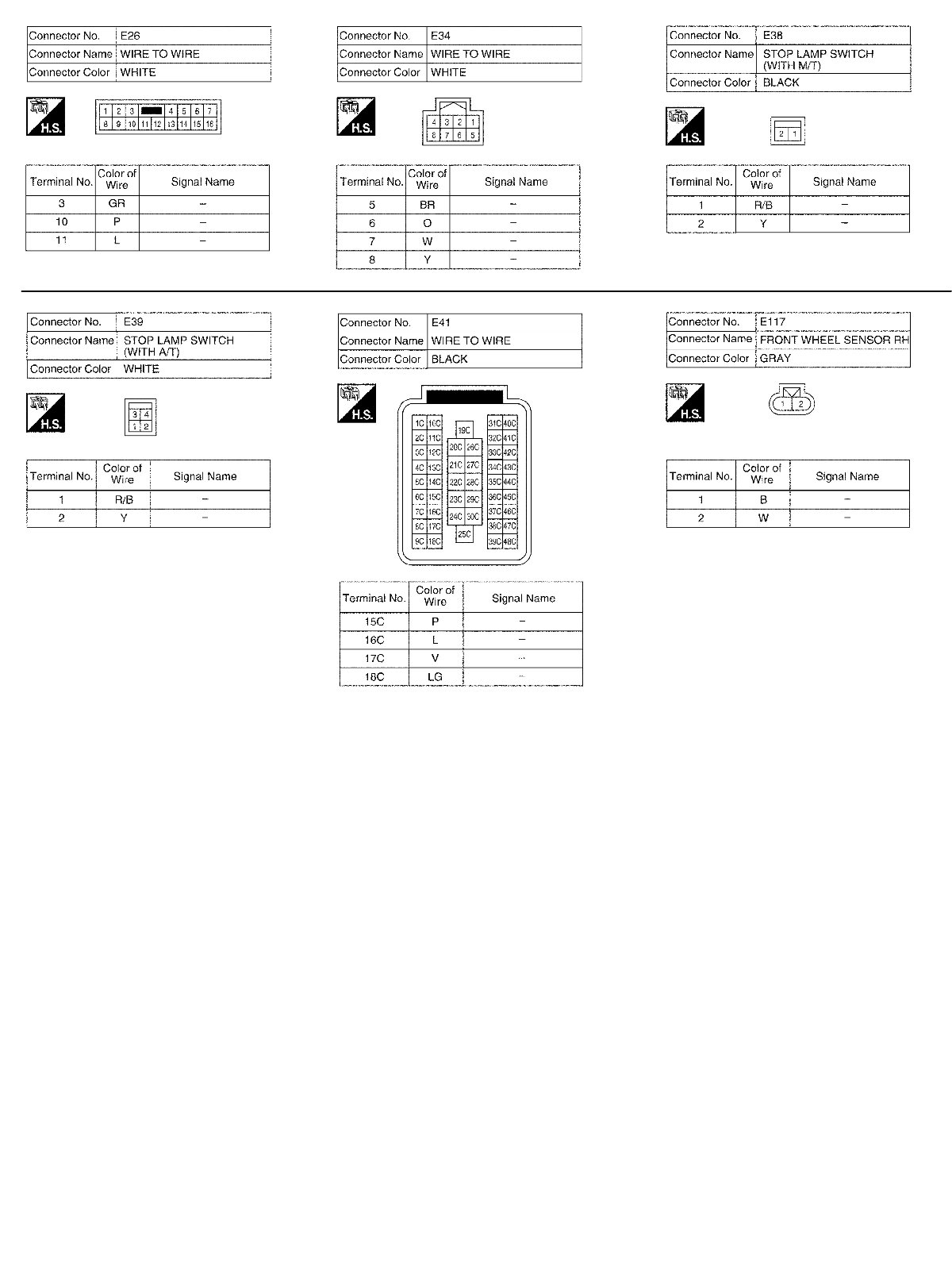

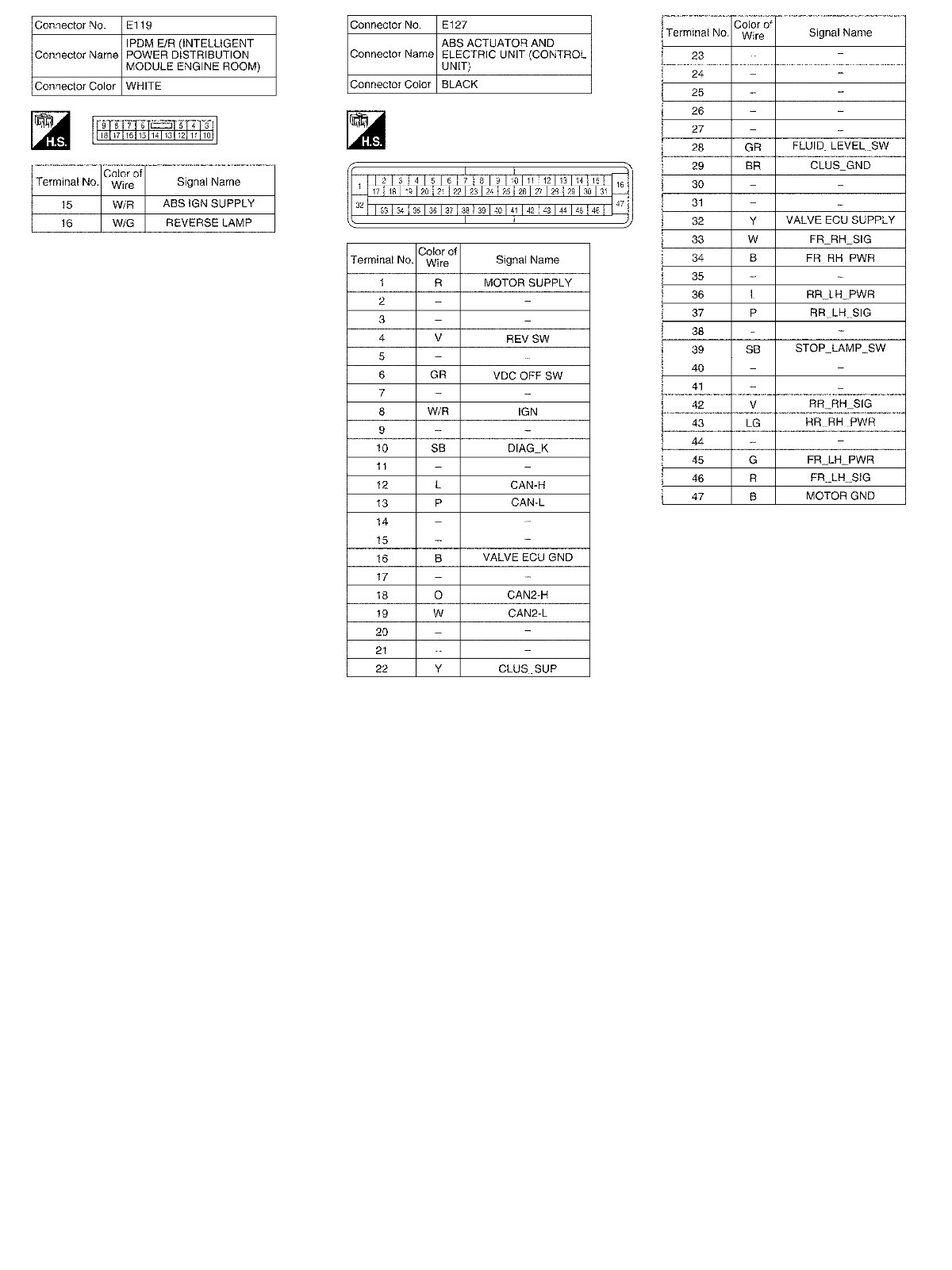

VDC without Hill Descent Control/Hill Start Assist: Wiring Diagram
