Vacuum Lines

Vacuum Lines: Removal and Installation

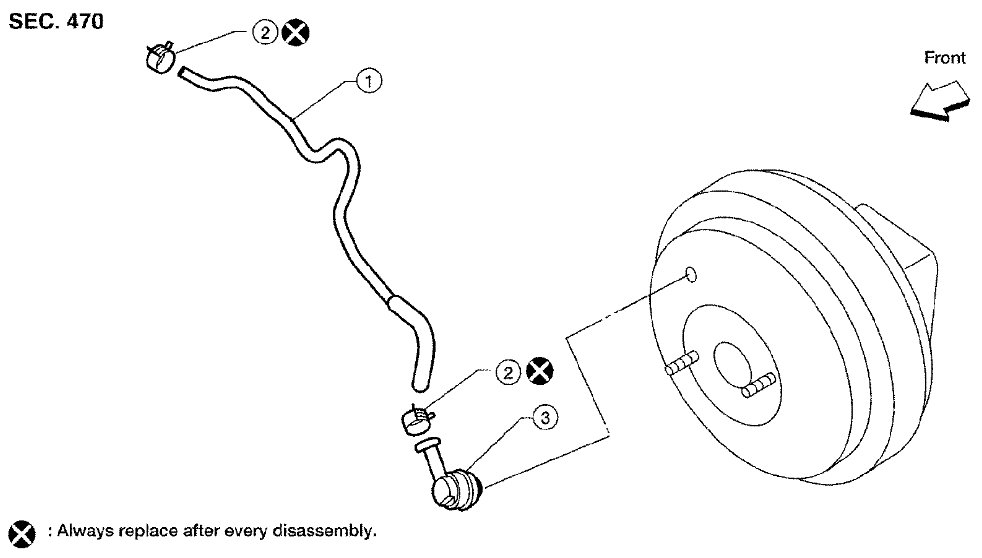

Brake Booster Vacuum Hose










Removal

1) Disconnect brake booster hose from hose clip bracket.
2) Release the brake booster hose clamps and remove the brake booster hose.
3) Remove the check valve from the brake booster.

Installation

Installation is in the reverse order of removal.

- Insert vacuum hose onto tube and brake booster vacuum check valve for a minimum length (A) before installing the brake booster hose clamps.











CAUTION:

Do not use lubricating oil during installation.
