Rear Brakes




Rear Brake Pad: Inspection

Pad Wear

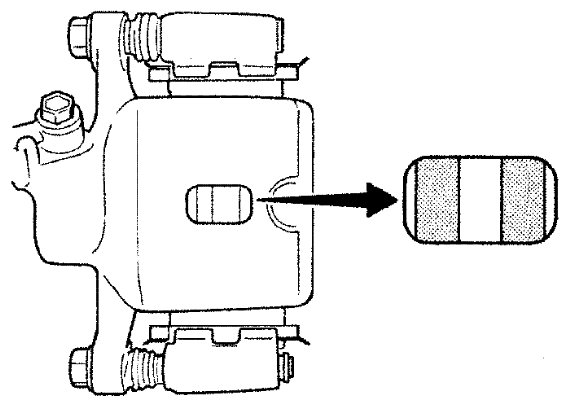

Check pad thickness from an inspection hole on cylinder body. Check using a scale if necessary.
