Front Brakes




Front Brake Pad: Inspection

Pad Wear

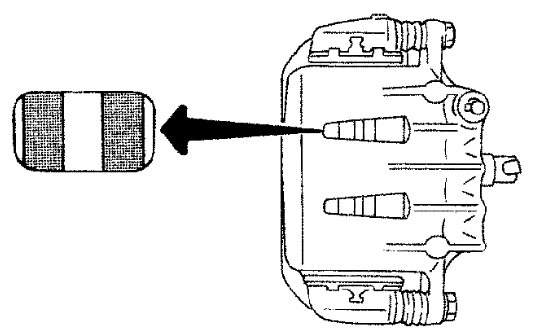

Check pad thickness from the inspection holes on cylinder body. Check using a scale if necessary.
