Brake Pedal

Brake Pedal: Removal and Installation

Removal

WARNING:

Do not deform the brake tube.

CAUTION:

- Do not disassemble the brake pedal assembly.
- Avoid damage from dropping the brake pedal assembly during handling.
- Keep the brake pedal assembly away from water.

1) Remove the instrument lower panel LH. Refer to [Instrument Lower Panel LH: Removal and Installation] Instrument Lower Panel LH.
2) Remove the stop lamp switch and ASCD cancel switch (if equipped) from the pedal assembly.
3) Remove snap pin and clevis pin from the clevis of the brake booster.
4) Remove the brake pedal assembly bolt.
5) Remove the pedal assembly nuts and discard, then remove the pedal assembly.
- Temporarily install the nuts by hand to support the booster.

CAUTION:
Do not reuse the nuts for installation.

Inspection after Removal

Check brake pedal for following items.

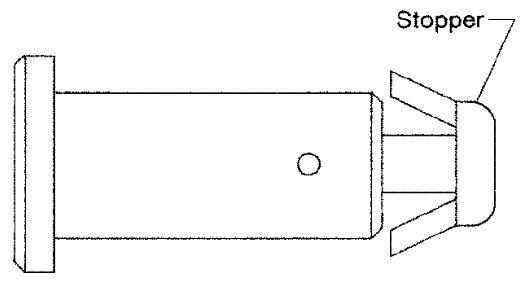

- Cracking or deformation of the clevis pin stopper





- Clevis pin deformation
- Crack of any welded portion
- Brake pedal bent or deformed

Installation

Installation is in the reverse order of removal.

- Check the brake pedal for smooth operation. There should be no binding or sticking when applying or releasing the brake pedal.
- After installing the brake pedal assembly, adjust it as necessary. Refer to [Brake Pedal: Inspection and Adjustment] Adjustments.

CAUTION:

Do not reuse the nuts for installation, discard and install with new lock nuts.
