Rear Seat

Rear Seat: Removal and Installation

Jump Seat (King Cab)

Removal

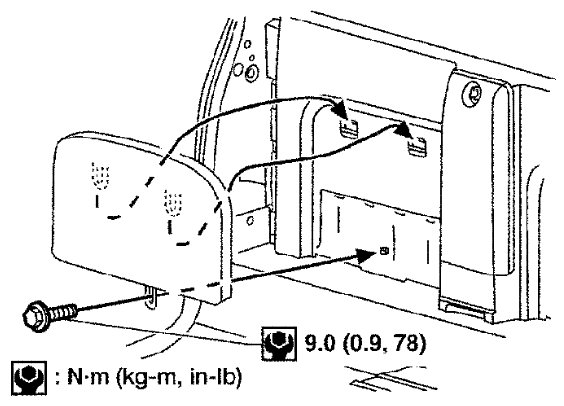

1) Remove seat base trim panel.

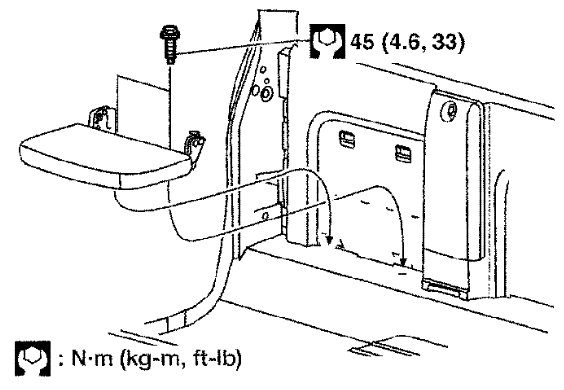

2) Remove the seat cushion bolts and assembly.





3) Remove the bolt, lift and remove the seatback assembly.






Installation

Installation is in the reverse order of removal.

Bench Seat LH (Crew Cab)

Removal

1) Remove the seat hinge finishers.

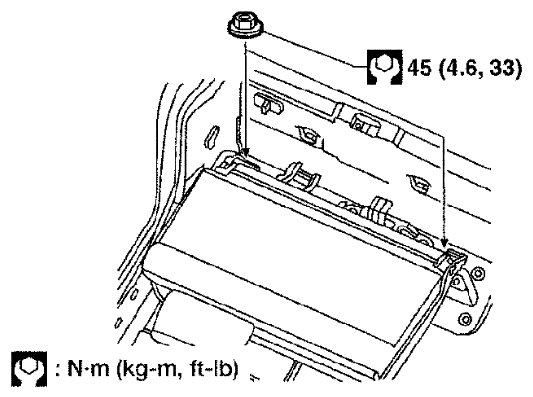

2) Release the seatback latch and tilt the seatback down. Remove the nuts.





3) Raise the seatback.
4) Tilt the seat cushion up.

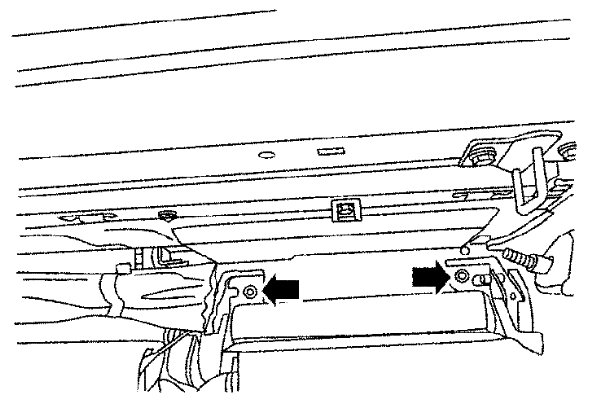

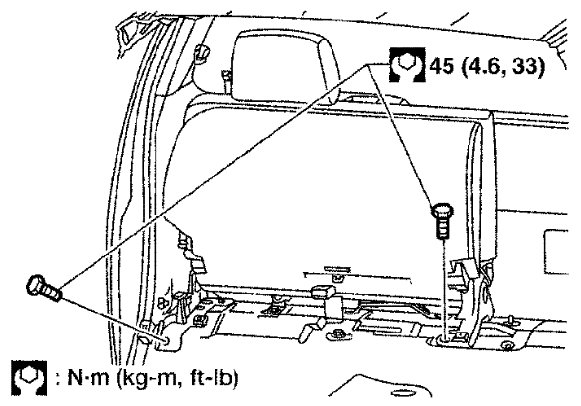

5) Remove the seat bolts.
6) Remove the seat.

Installation

Installation is in the reverse order of removal.

NOTE:

Make sure the washers are on the rear studs prior to seat assembly installation.





Bench Seat RH (Crew Cab)

Removal

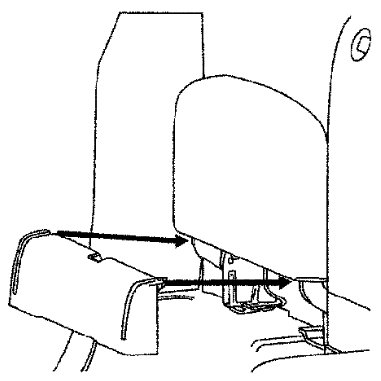

1) Remove the seat hinge finishers.
2) Release the seatback latch and tilt the seatback down. Remove the nuts.





3) Raise the seatback.
4) Remove the seat belt buckle from the cushion.

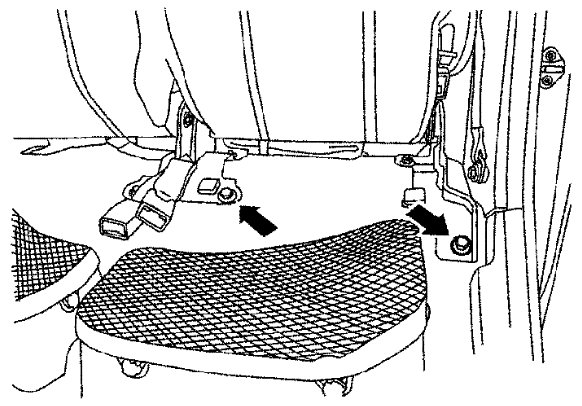

5) Remove the seat bolts.
6) Remove the seat assembly.

Installation

Installation is in the reverse order of removal.

NOTE:

Make sure the washers are on the rear studs prior to seat assembly installation.
