Luggage / Roof Rack: Service and Repair

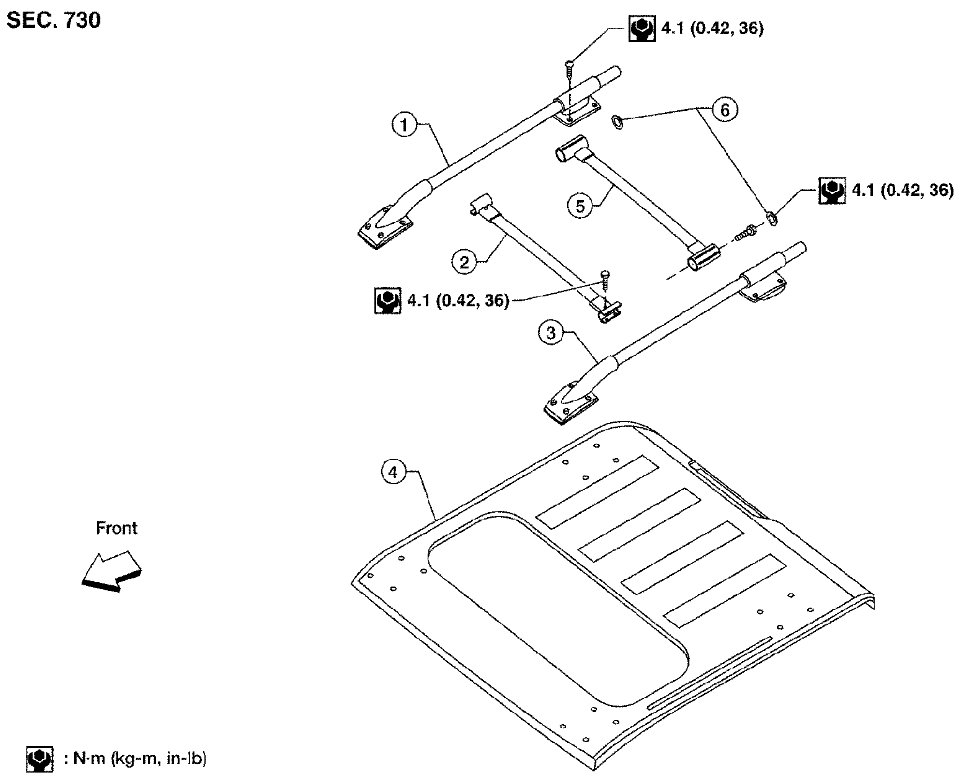

Roof Rack: Removal and Installation

Crew Cab










Removal

1) Remove RH/LH side rail bolts (if equipped) from roof panel.
2) Pry outward releasing end caps and remove from side rails.
3) Remove the bolts and remove rear crossbar from side rails.
4) Remove the bolts and remove front crossbar from side rails.

Installation

Installation is in the reverse order of removal.
