Paint, Striping and Decals: Application and ID

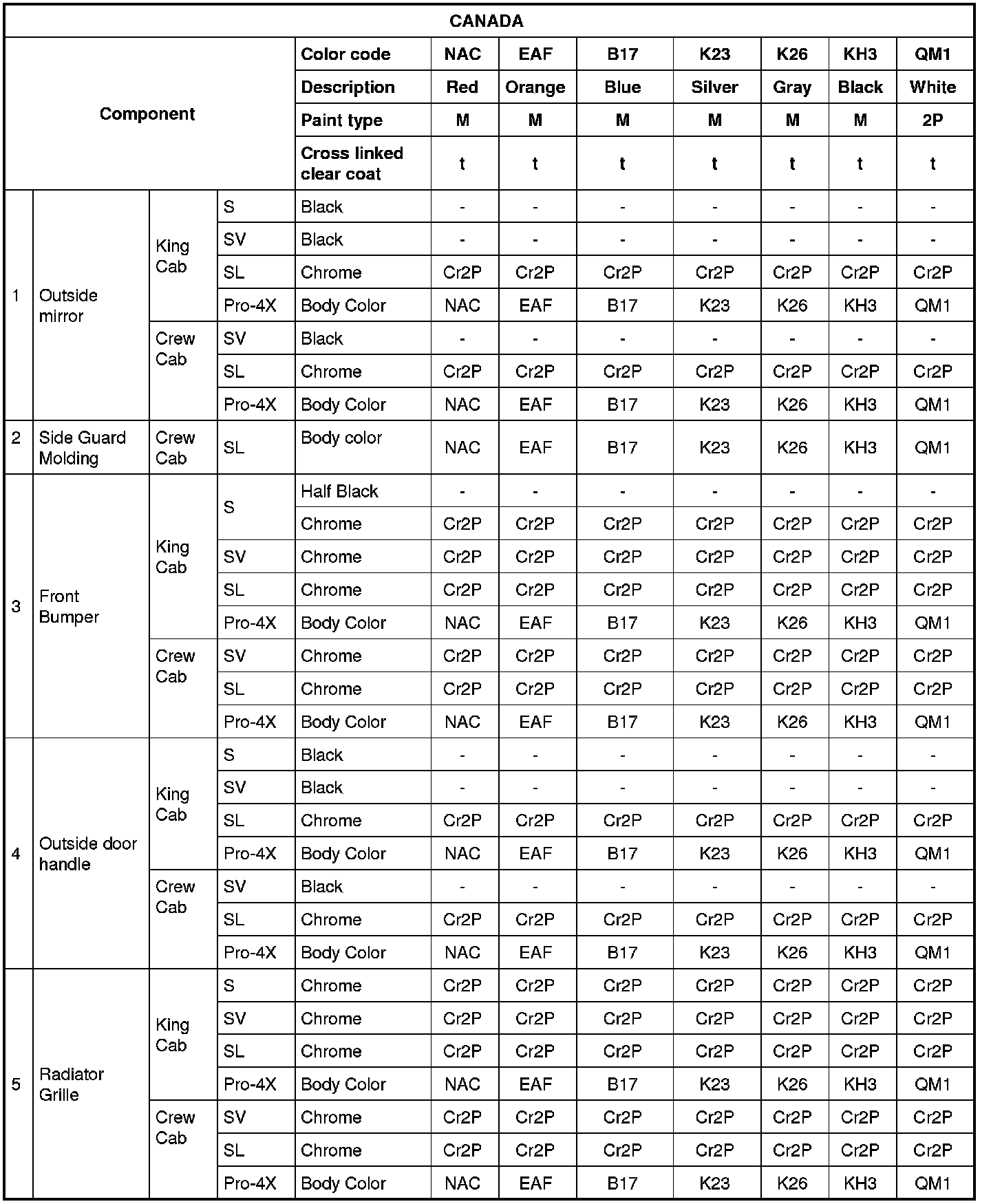

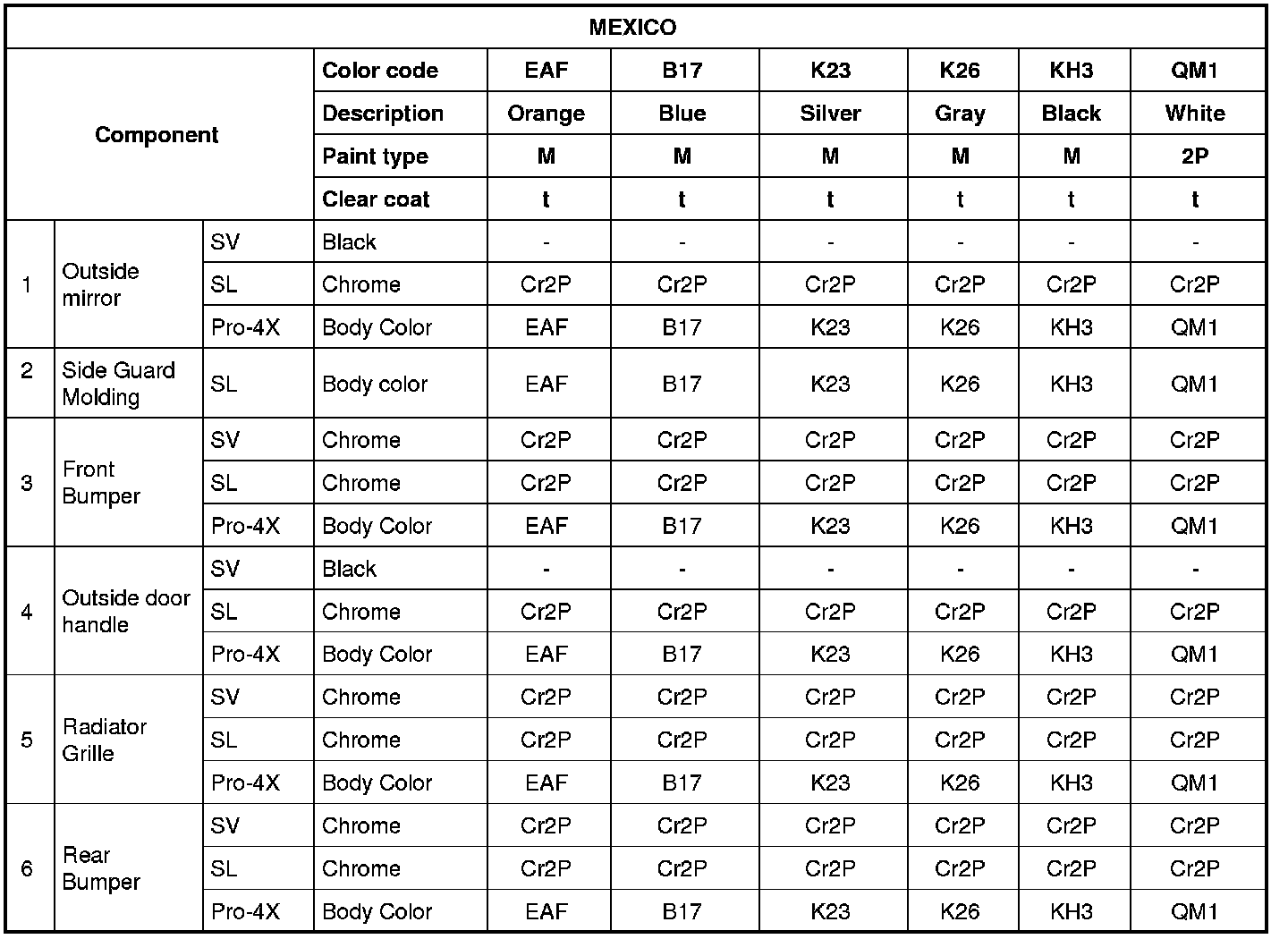

Body Exterior Paint Color













M: Metallic; S: 1- Coat Solid, 2S: 2-Coat Solid, 2P: 2-Coat Pearl, PM: Pearl plus Metallic, t: Primerless carbamate clear coat

single dagger: Cross-linked clear coat









M: Metallic; S: 1- Coat Solid, 2S: 2-Coat Solid, 2P: 2-Coat Pearl, PM: Pearl plus Metallic, t: Primerless carbamate clear coat

single dagger: Cross-linked clear coat





M: Metallic; S: 1- Coat Solid, 2S: 2-Coat Solid, 2P: 2-Coat Pearl, PM: Pearl plus Metallic, t: Primerless carbamate clear coat

single dagger: Cross-linked clear coat
