Door Mirror Glass

Door Mirror Glass: Removal and Installation

Removal





1) Angle the mirror fully up.

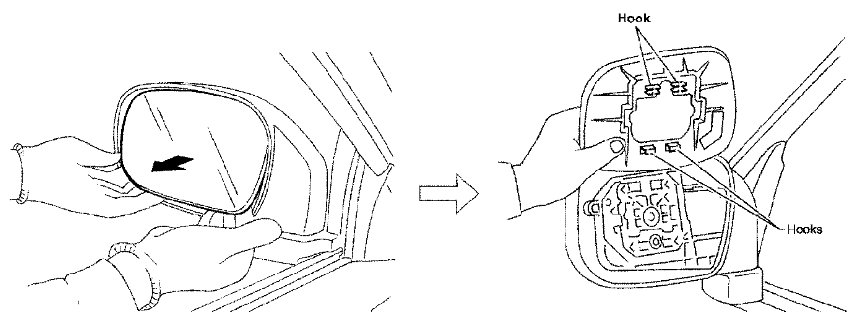

2) Remove the door mirror.
- Pull from the bottom to disengage the clips.
- Continue to pivot the mirror upward from the bottom to separate the hooks.
- Disconnect the harness connectors (if equipped).

Installation

Installation is in the reverse order of removal.
