Door Mirror Assembly

Door Mirror Assembly: Removal and Installation

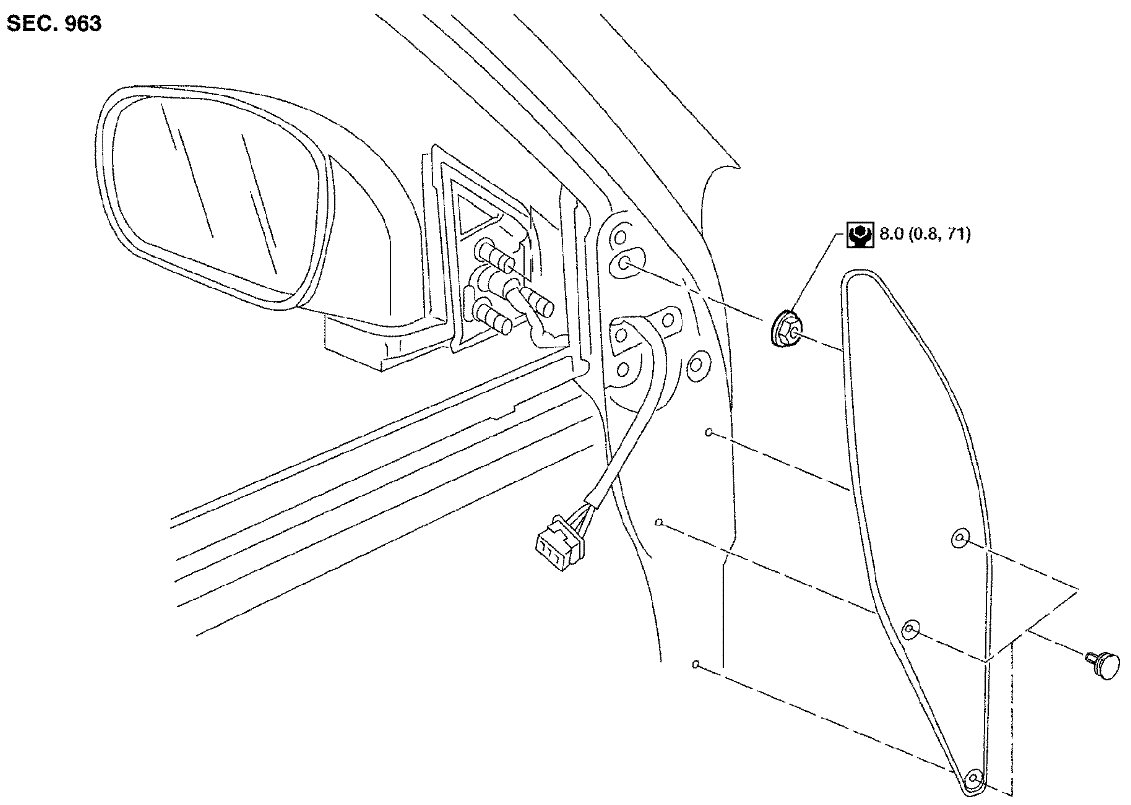

Exploded View





NOTE:

Power mirror shown, manual mirror similar.

Manual Mirror

CAUTION:

Be careful not to damage the mirror body.

Removal

1) Remove the front door sash cover.
2) Remove the front door finisher. Refer to [Door Finisher: Removal and Installation] Service and Repair.
3) Remove the nuts and the door mirror assembly.

Installation

Installation is in the reverse order of removal

Power Mirror

CAUTION:

Be careful not to damage the mirror body.

Removal

1) Remove the front door sash cover.
2) Remove the front door finisher. Refer to [Door Finisher: Removal and Installation] Service and Repair.
3) Disconnect the door mirror harness connector.
4) Remove the nuts and the door mirror assembly.

Installation

Installation is in the reverse order of removal.
