Rear Door Lock: Removal and Installation

Removal

1) Remove the rear door module assembly. Refer to [Rear Door Glass Regulator: Removal and Installation] Service and Repair.
2) Remove the door side grommet and the bolt (TORX T30) from the grommet hole.

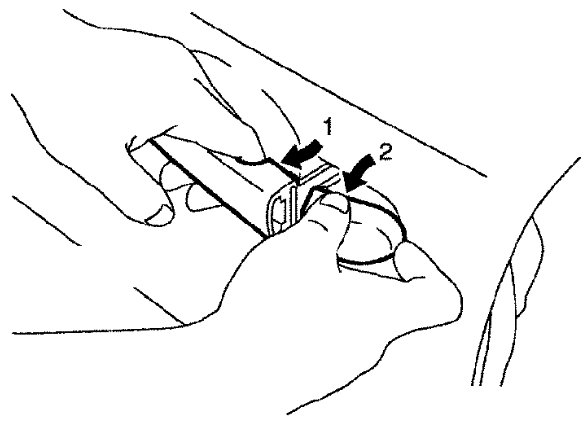

3) While pulling the outside handle (1), remove the door handle escutcheon (2).





4) While pulling the outside handle (2), slide it toward the rear of vehicle to remove (1).





5) Remove the front and rear gaskets.





6) Remove the TORX bolts (T30), remove the door lock assembly.











7) While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket and door lock assembly.





8) Disconnect the outside handle cable.






Installation

Installation is in the reverse order of removal.
