Instrument Lower Panel LH

Instrument Lower Panel LH: Removal and Installation

Removal

1) Remove front pillar lower finisher (LH). Refer to [Body Side Trim: Removal and Installation] Body Side Trim Removal and Installation.

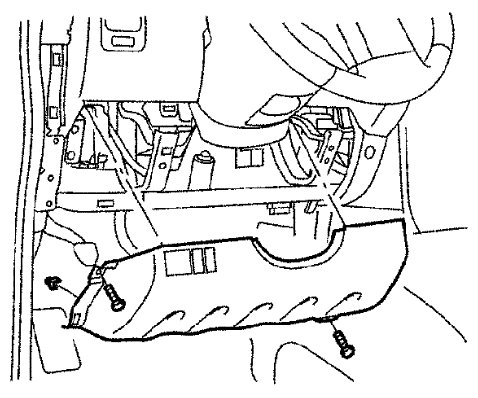

2) Remove instrument lower panel LH screws.





3) Pull rearward to release instrument lower panel LH.
4) Disconnect instrument lower panel LH harness connectors, then remove instrument lower panel LH.

Installation

Installation is in the reverse order of removal.
